OPERATION
GENERAL VIEW

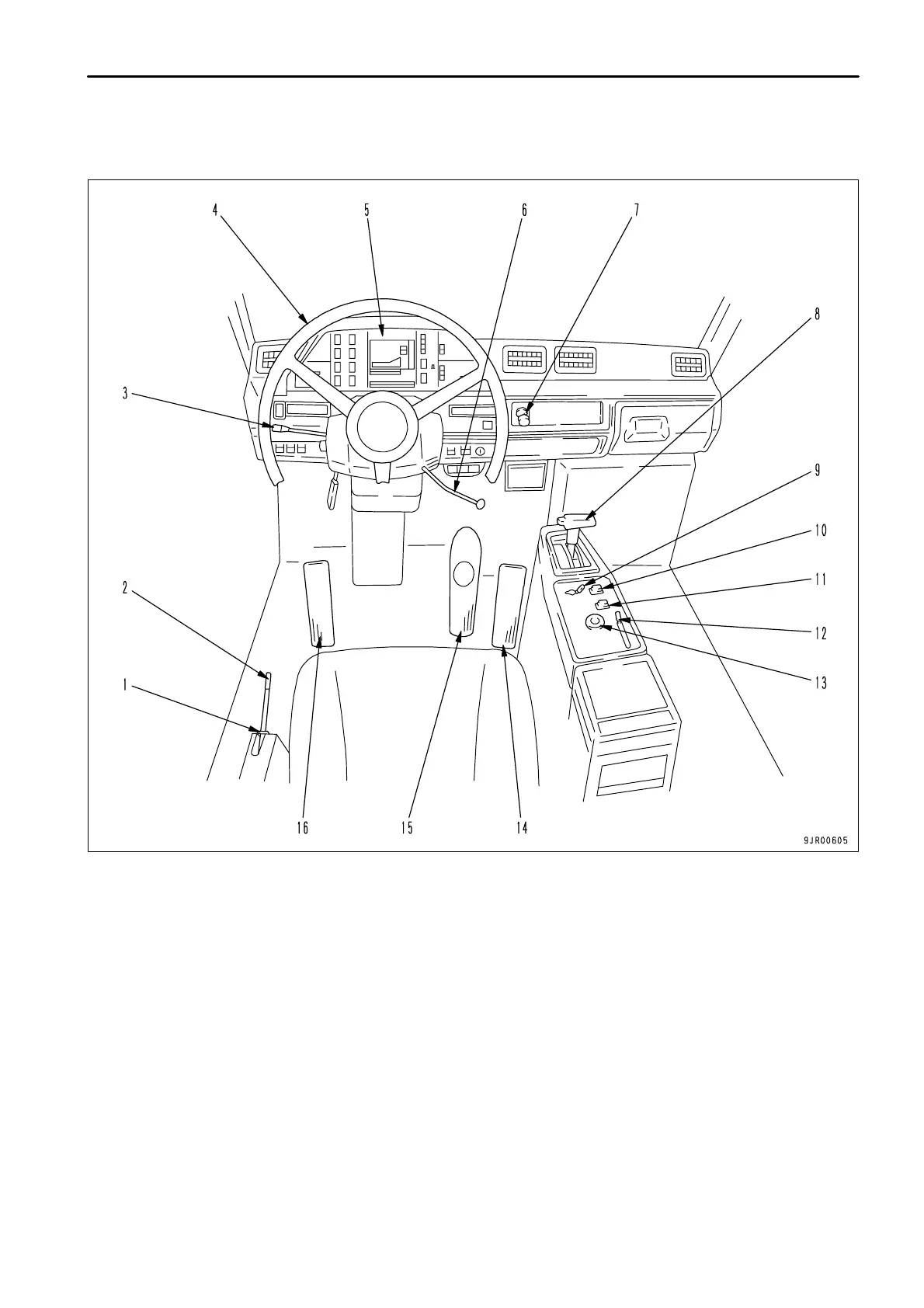

GENERAL VIEW OF CONTROLS AND GAUGES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Dump lever lock
Dump lever
Lamp switch, Turn signal lever, Dimmer switch
Steering wheel
Machine monitor
Retarder control lever
Cigarette lighter
Shift lever
Parking brake valve lever
(10)
(11)
(11)
(12)
(13)
(14)
(15)
(16)
Shift limiter switch
Power mode selector switch
4WD switch
(HD325 only the machine of 4WD specifications)
Secondary brake lever
Emergency steering switch
Accelerator pedal
Brake pedal
Differential lock pedal (if equipped)
