REVO TACHOGRAPH (TCO 15-7)
REVO TACHOGRAPH (TCO 15-7)

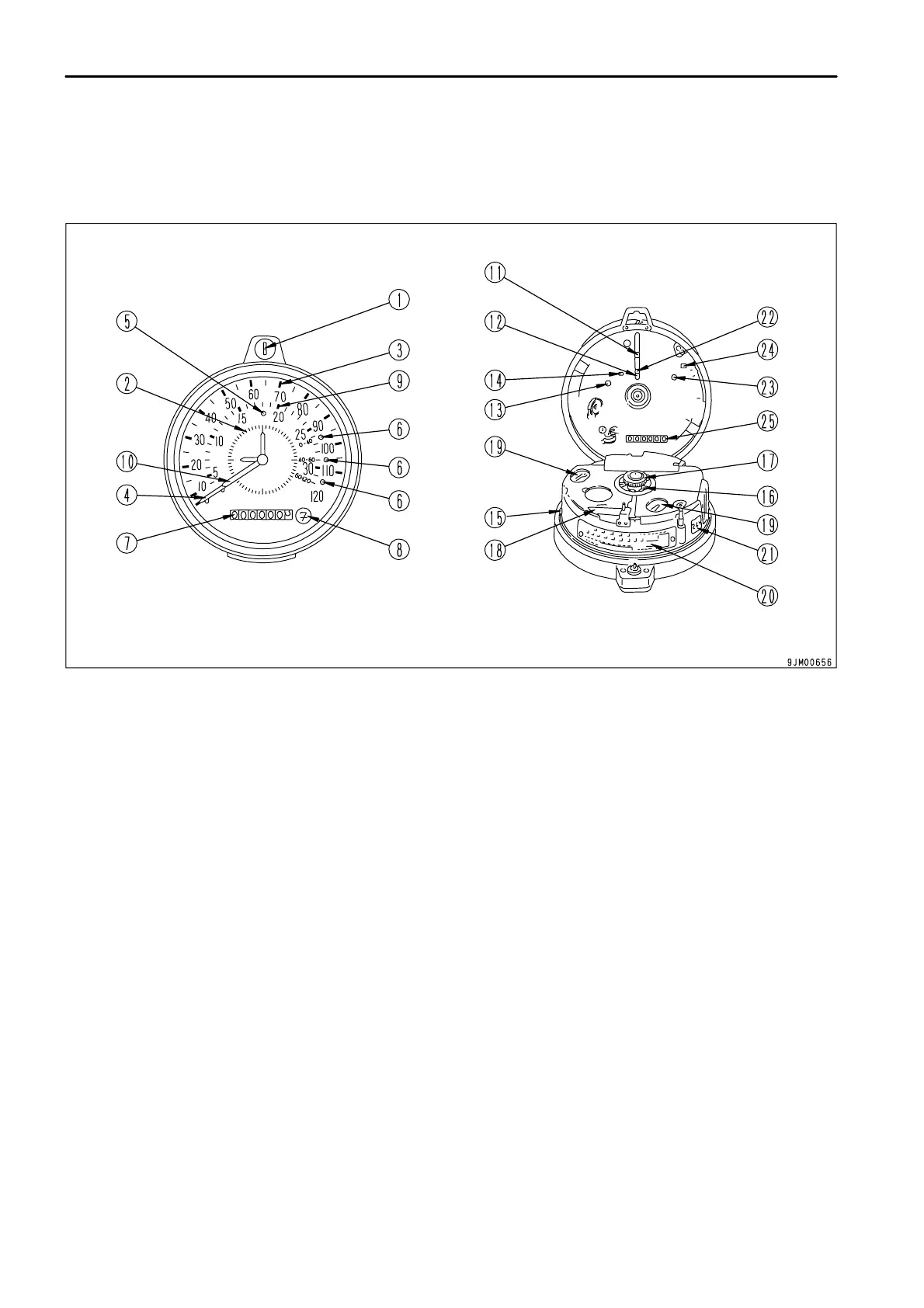

EXPLANATION OF COMPONENTS
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Instrument lock
Clock dial
Speed scale
Speed indicator
Speed warning lamp
Speed indication confirmation lamp
Odometer
Period indicating label
RPM scale
RPM indicator
Speed recording stylus
Travel distance recording stylus
Adjustment screw for speed warning lamp
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
Speed confirmation aperture for speed warning
lamp indication
Clock setting knob
Chart support
Pressing ring
Cutting knife
Instrument lighting lamp
Name plate
Voltage indication label
RPM recording stylus
Adjustment screw for RPM warning lamp
Speed confirmation aperture for RPM warning
lamp indication
Total revolution counter
