MAINTENANCE
MAINTENANCE PROCEDURE
CHECK AND TIGHTEN TRACK SHOE BOLTS
If the machine is used with track shoe bolts (1) loose, they will
break, so tighten any loose bolts immediately.
Tightening
1. First tighten to a tightening torque of 392 ± 39.2 Nm (40 ± 4 kgm , 290 ± 30 lbft) then check that the nut and shoe
are in close contact with the link contact surface.
2.
After checking, tighten a further 120° ± 10°.
Order for Tightening

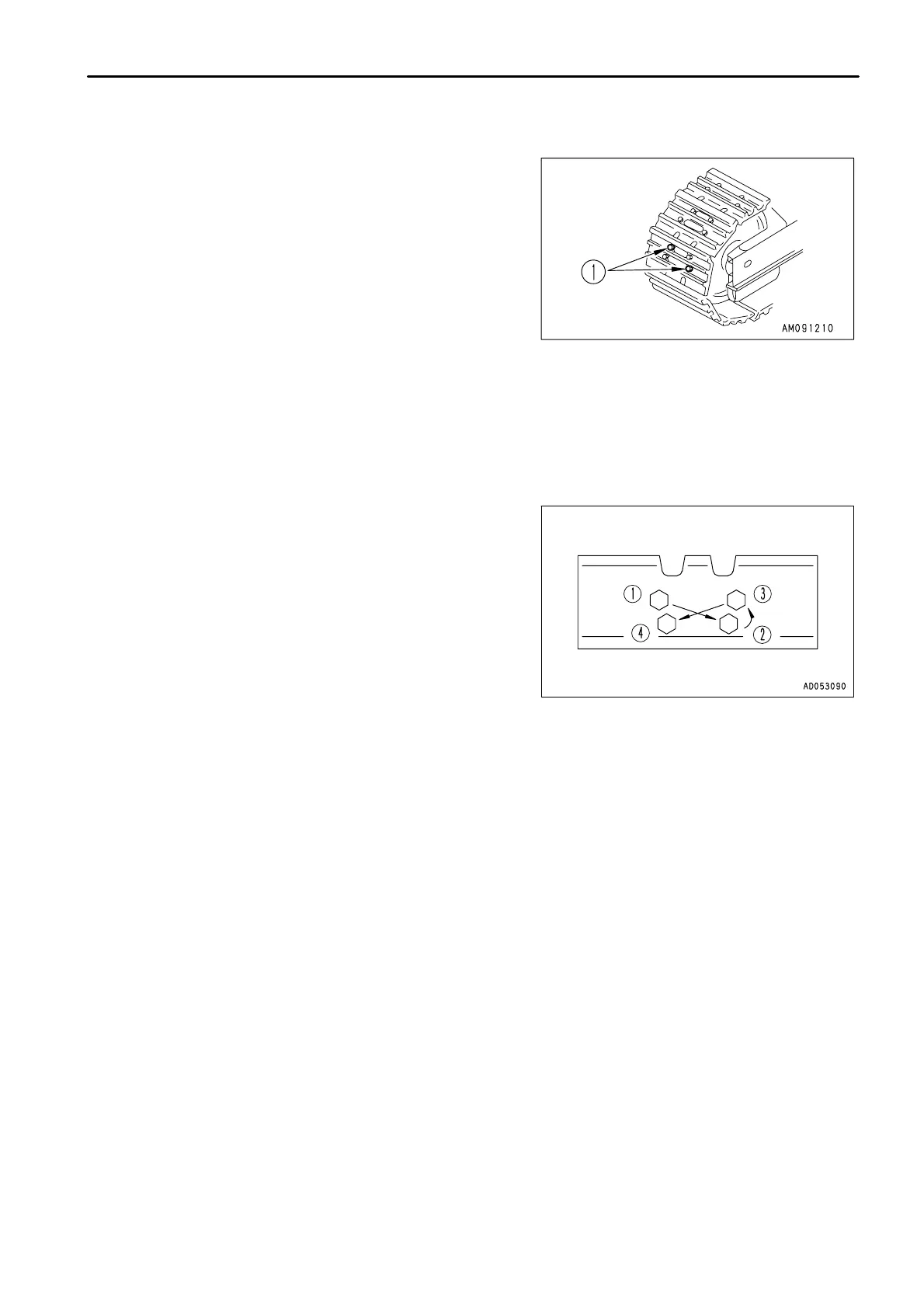

Tighten the bolts in the order shown in the diagram on the right.
After tightening, check that the nut and shoe are in close contact
with the link mating surface.
4 - 29
To Next Page
