MAINTENANCE
MAINTENANCE PROCEDURE
CLEAN HYDRAULIC TANK STRAINER
WARNING
The parts and oil are at high temperature immediately after the engine is stopped, and may cause burns. Wait for the
temperature to go down before starting the work.
When removing the oil filler cap, turn it slowly to release the internal pressure, then remove it.

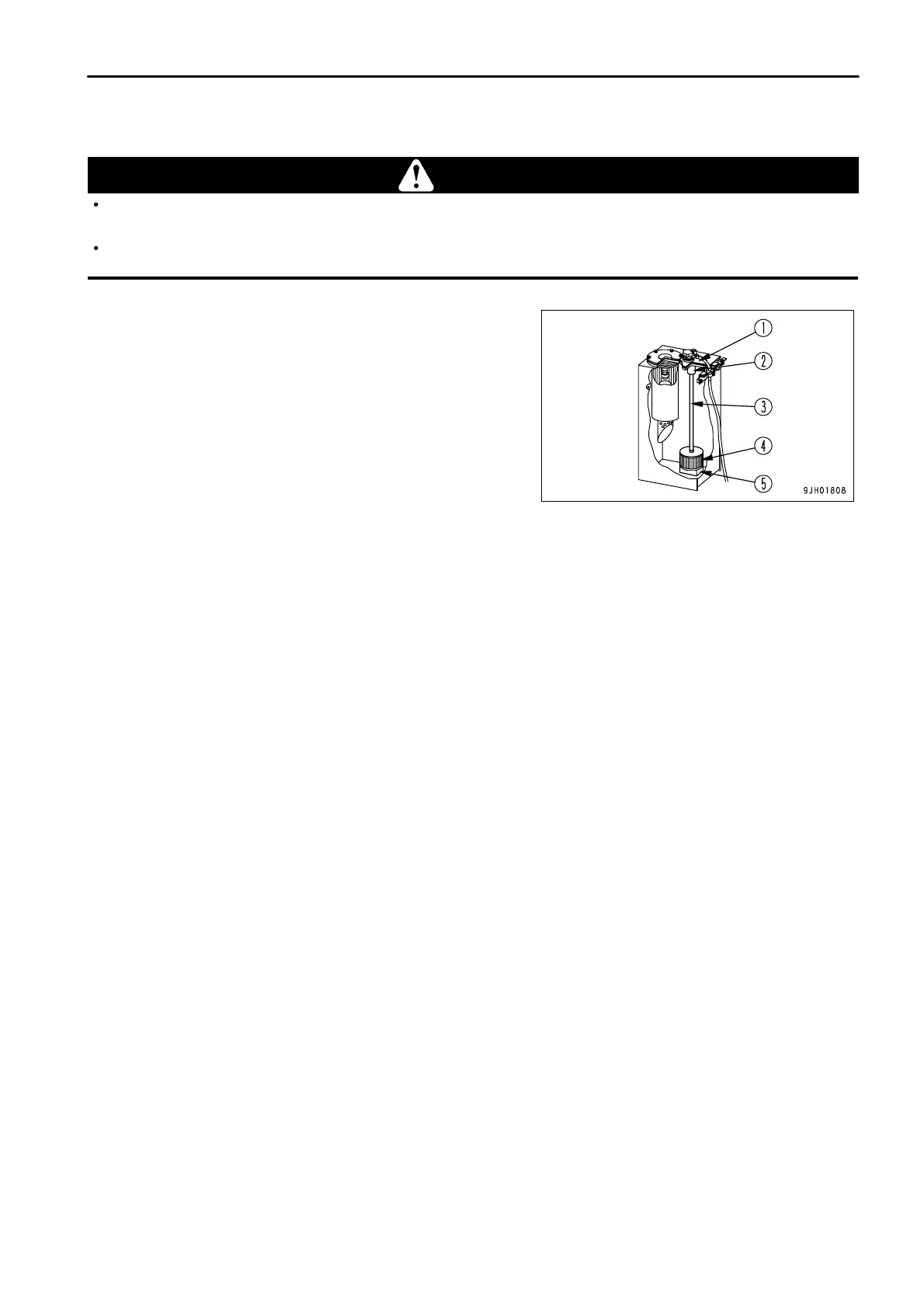

1.
Loosen 6 bolts, then remove cover (1).
When doing this, the cover (1) may fly out under the force of
spring (2), so push the cover down when removing the bolts.
2.
Hold the top of rod (3) and pull up to remove spring (2) and
strainer (4).
3.
Remove any dirt stuck to strainer (4), then wash it in flushing
oil. If strainer (4) is damaged, replace it with a new part.
4. When installing, insert strainer (4) into protruding part (5) of the
tank, and assemble.
5.
Install cover (1) with bolts.
4 - 65
