ATTACHMENTS AND OPTIONS
MACHINE READY FOR ATTACHMENT
MACHINE READY FOR ATTACHMENT

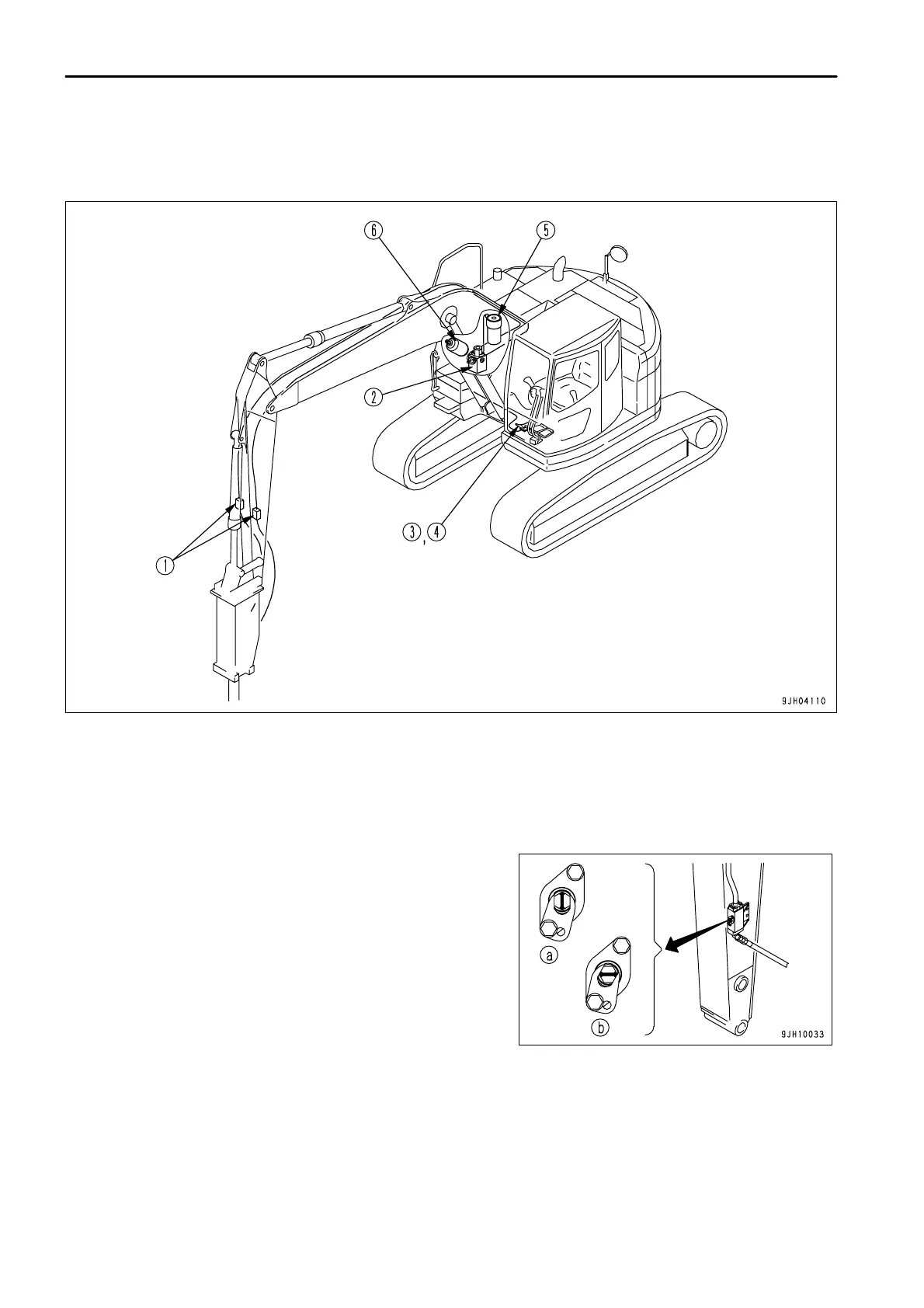

LOCATIONS
(1)
(2)
(3)
Stop valve
Selector valve
Attachment control pedal
(4)
(5)
(6)
Lock pin
Breaker circuit additional oil filter
Accumulator
Stop Valve
This valve (1) stops the flow of the hydraulic oil.
(a) FREE: Hydraulic oil flows.
(b) LOCK: Hydraulic oil stops.
When removing or installing attachments, set this valve to the
LOCK position.
