OPERATION

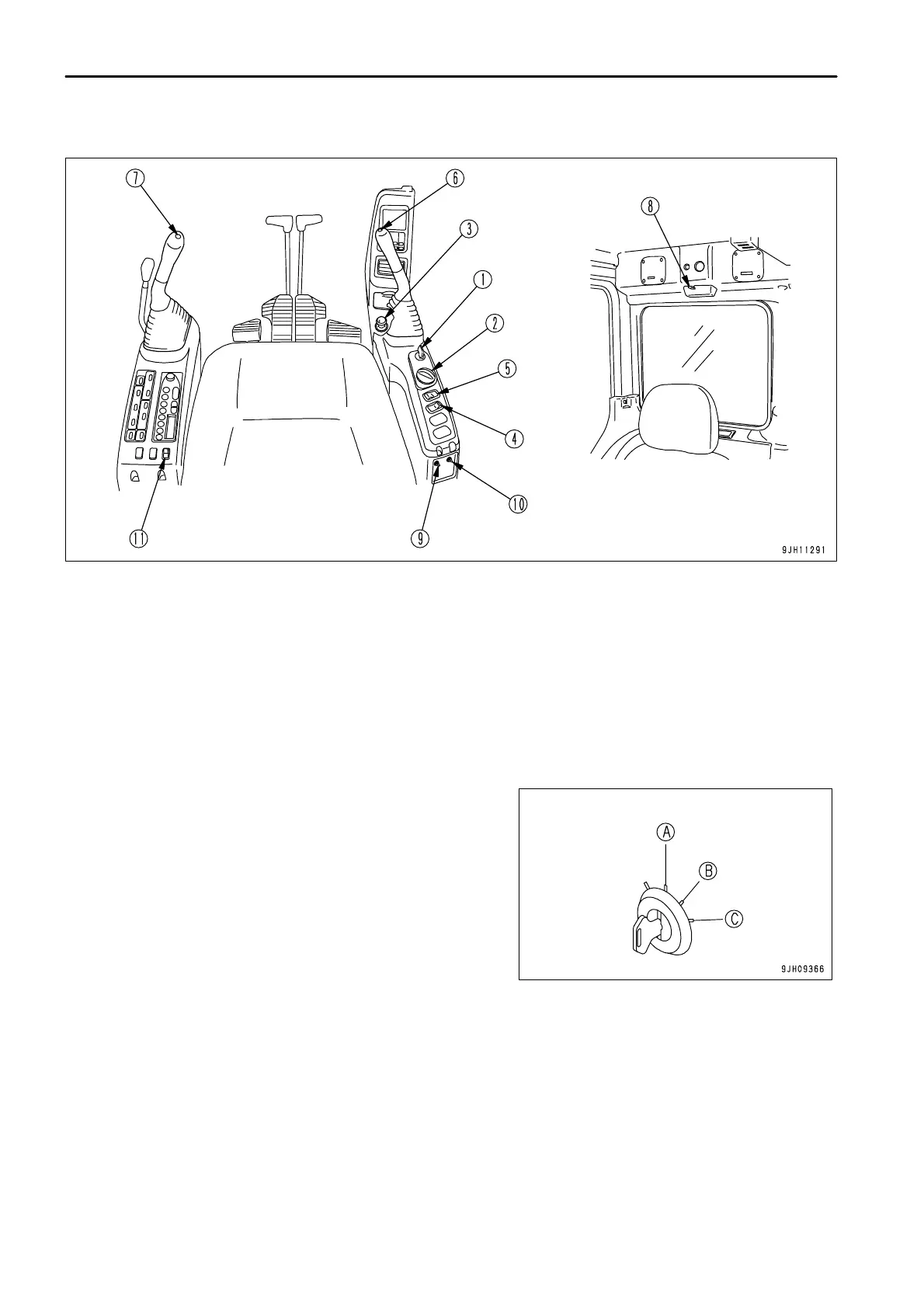

DETAILED CONTROLS AND GAUGES
SWITCHES
(1)
(2)
(3)
(4)
(5)
(6)
Starting switch
Fuel control dial
Cigarette lighter
Swing lock switch
Lamp switch
Horn switch
(7)
(8)
(9)
(10)
(11)
One-touch power max. switch
Room lamp switch
Emergency pump drive switch
Swing brake cancel switch
Revolving warning lamp switch (if equipped)
Starting Switch
Starting switch (1) is used to start or stop the engine.
(A): OFF position
The key can be inserted or withdrawn. Switches for the electrical
system (except room lamp), are all turned off and the engine is
stopped.
(B): ON position
Electric current flows through the charging and lamp circuits. Keep
starting switch key in the ON position while the engine is running.
(C): START position
This is the engine-start position. Keep the key at this position
during cranking. Immediately after starting the engine, release the
key. It will automatically return to the ON position (B).
