STRUCTURE, FUNCTION AND MAINTENANCE STANDARD ENGINE CONTROL
10-106
PC58UU-3
12

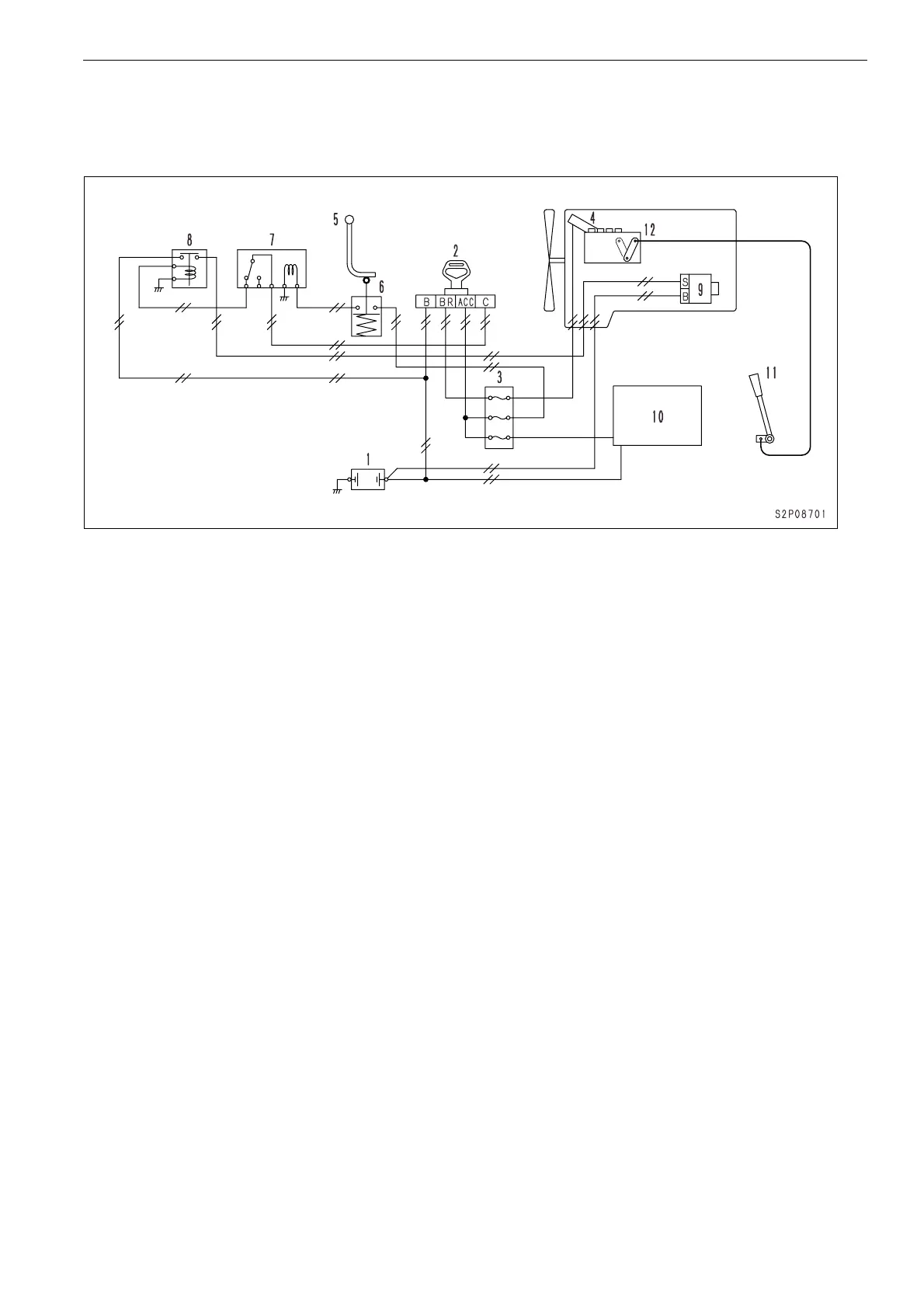

ENGINE CONTROL
1. Ba ttery
2. Starter switch
3. Fuse box
4. Engine stop solenoid
5. Safety lock lever
6. PPC lock switch
7. Neutral engine start relay (for starter circuit)
8. Safety relay
9. Starter
10. Deceleration controller
11. Fuel adjust dial
12. Fuel adjust motor
13. One-touch deceleration switch
14. One-touch deceleration pilot lamp
15. Fuel adjust motor relay (for drive)
16. Fuel adjust motor relay (for acceleration)
17. Fuel adjust motor relay (for deceleration)
