10-18 PC58UU-3

STRUCTURE, FUNCTION AND

MAINTENANCE STANDARD

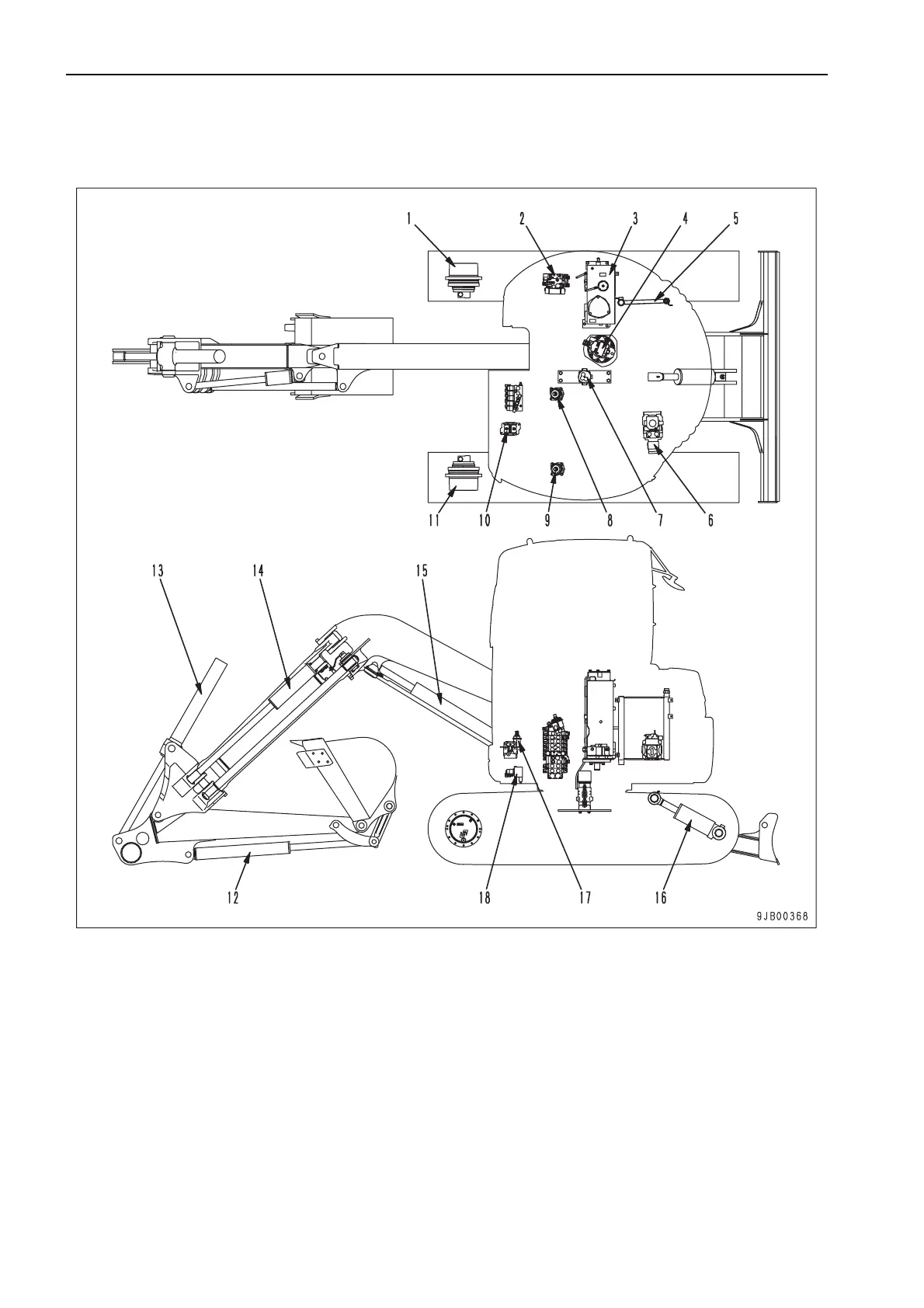

HYDRAULIC EQUIPMENT LAYOUT DRAWING

1. L.H. travel motor

2. Control valve

3. Hydraulic tank

4. Swing motor

5. Oil cooler

6. Hydraulic pump

7. Center swivel joint

8. R.H. work equipment PPC valve

9. L.H. work equipment PPC valve

10. Travel PPC valve

11. R.H. travel motor

12. Bucket cylinder

13. Arm cylinder

14. Offset cylinder

15. Boom cylinder

16. Blade cylinder

17. Offset PPC valve

18. 5-spool solenoid valv

HYDRAULIC EQUIPMENT LAYOUT DRAWING
