STRUCTURE, FUNCTION AND MAINTENANCE STANDARD COOLING SYSTEM
PC58UU-3
10-3

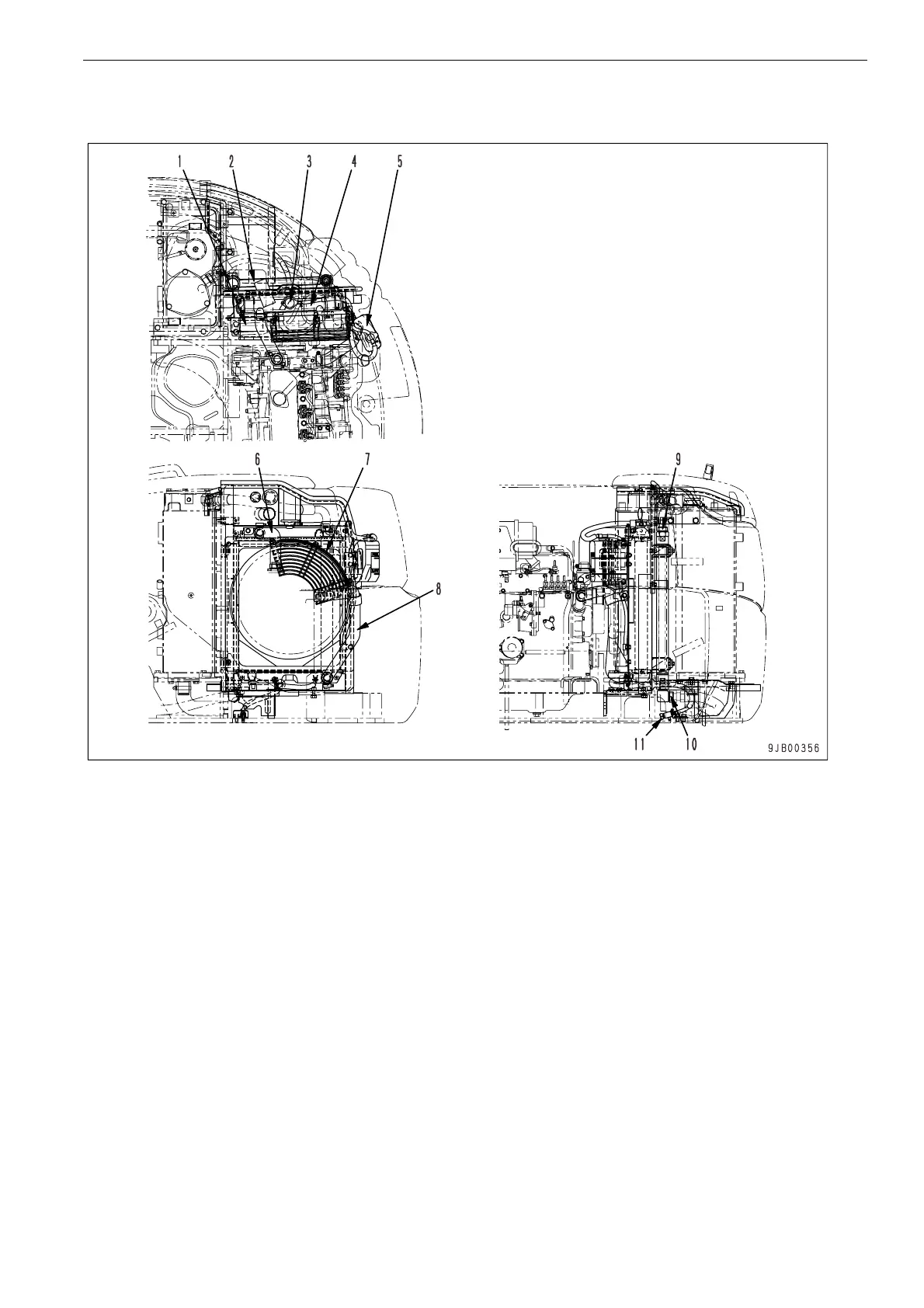

COOLING SYSTEM
1. Sh r o ud
2. Oil cooler
3. Radiator cap
4. Radiator
5. Reserve tank
6. Radiator inlet hose
7. Fan guard
8. Radiator outlet hose
9. Oil cooler outlet
10. Oil cooler inlet
11. Drain valve
SPECIFICATION
Radiator
Core type : CF27-2
Fin pitch : 4.0/2 mm
Total heat dissipation surface : 10.1 m²
Pressure valve cracking pressure :
88.3 ± 14.7 kPa {0.9 ± 0.15 kg/cm²}
Vacuum valve cracking pressure :
-4.9 kPa {-0.05 kg/cm²}
Oil cooler
Core type : SF-4
Fin pitch : 4.5/2 mm
Total heat dissipation surface : 3.77 m²
