STRUCTURE, FUNCTION AND MAINTENANCE STANDARD SPROCKET
PC58UU-3
10-13

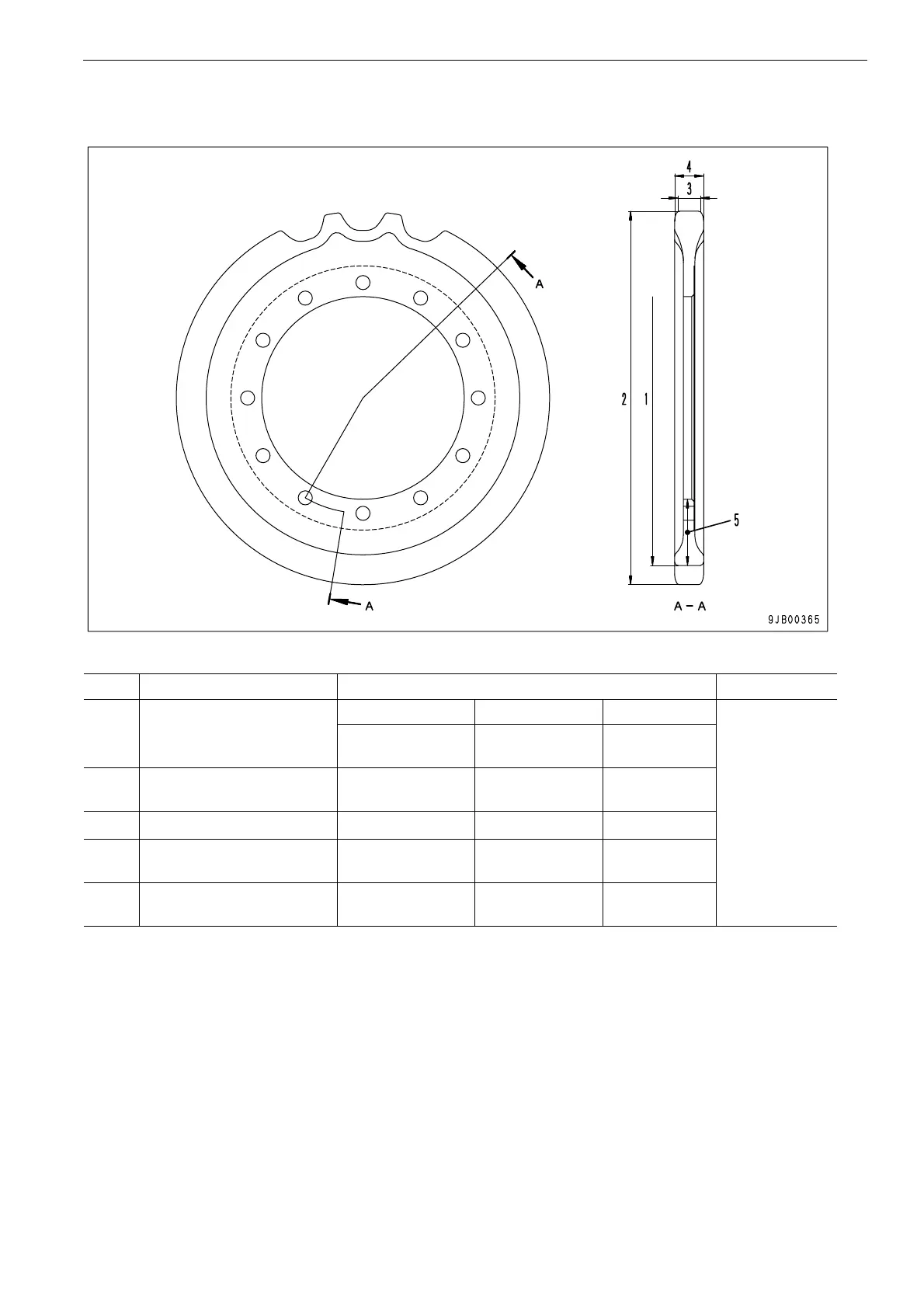

SPROCKET
Unit: mm
No. Check item Criteria Remedy
1
Wear on tooth bottom
diameter
Standard size Tolerance Repair limit
Rebuild or
replace
ø 380.37
+1.0
-2.0
ø 368
2
Wear on addendum
diameter
ø 423.99
0
-3.0
ø 412
3
Wear on addendum width 26 — 24
4
Wear on tooth bottom
width
33
+0.5
-1.0
30
5
Tooth bottom wall thick-
ness
75.185
+0.492
-1.075
69.0
