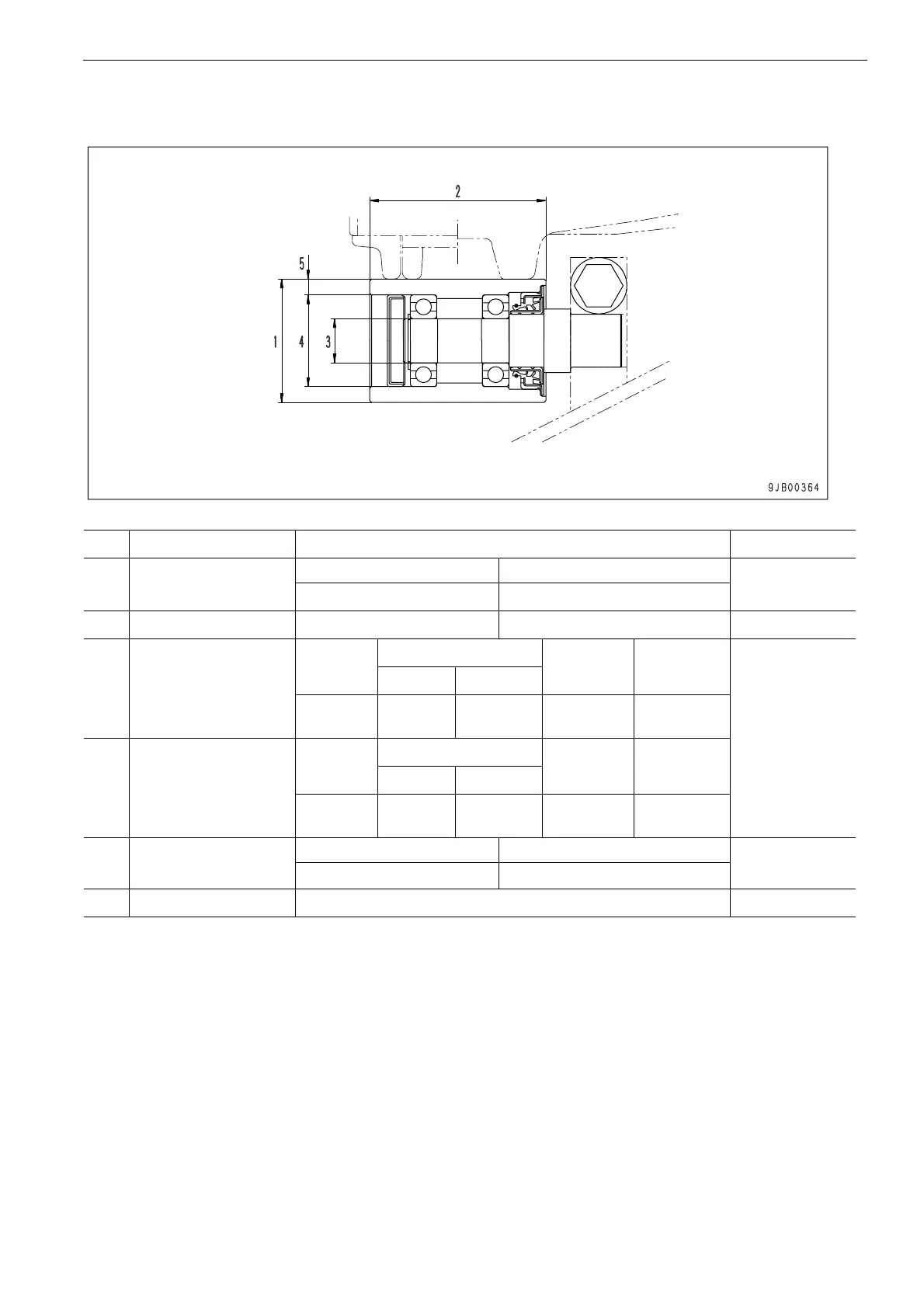

STRUCTURE, FUNCTION AND MAINTENANCE STANDARD CARRIER ROLLER
10-12
PC58UU-3
CARRIER ROLLER
Unit: mm
No. Check item Criteria Remedy
1
Outer diameter of tread
Standard size Repair limit
Rebuild or
replace
ø 70 ø 65
2
Width of tread 100 —
—
3
Interference between
shaft and bearing
Standard
size
Tolerance
Standard
interference
Interference
limit
Replace
Shaft Hole
ø 25
+0.013
-0.008
0
- 0.010
-0.023 -
0.008
—
4
Interference between
roller and bearing
Standard
size
Tolerance
Standard
interference
Interference
limit
Shaft Hole
ø 52
0
-0.013
+0.018
-0.012
-0.031 -
0.012
—
5
Tread wall thickness
Standard size Repair limit
Rebuild or
replace
96.5
—
Grease capacity 30 cc (Grease : ALBANIA EP-2) —
