30-10 PC58UU-3
DISASSEMBLY AND ASSEMBLY
REMOVAL OF ENGINE AND
WORK EQUIPMENT PUMP
ASSEMBLY
a The shapes of the water separator and fuel filter
of a machine, Serial No. 22001 or higher, are dif-
ferent from those of a machine of a lower Serial
No. The removal procedure for the engine and
work equipment pump assembly is the same,
however.

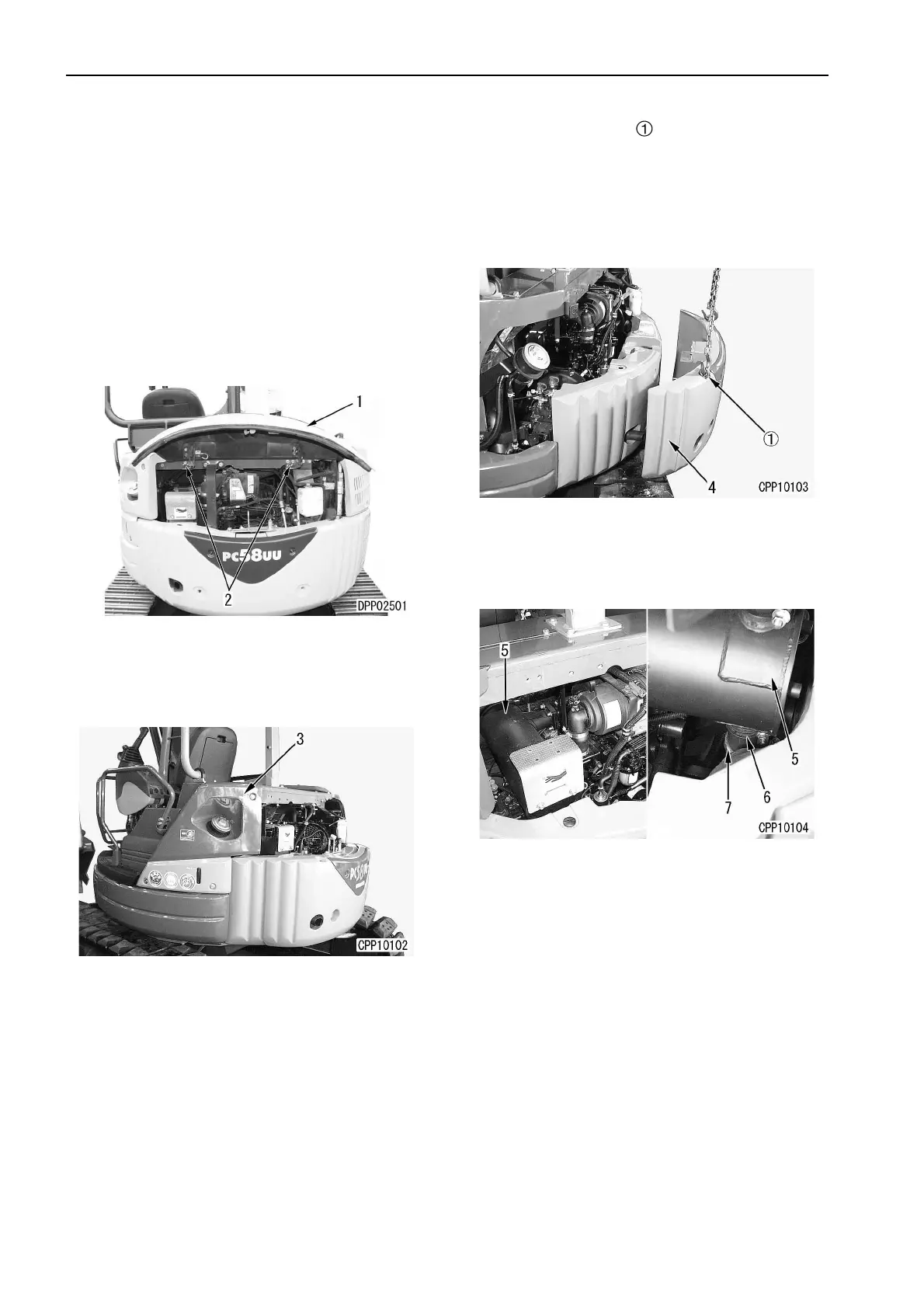

1. Open the engine hood (1), remove the mounting
bracket bolts (2), and remove the hood.
2. Loosen the rear cover (3) mounting bolt. Loosen
the fuel air bleed hose clamp inside the cover
and remove the hose. Remove the fuel tank cap
and remove the cover (3).
3. Attach the eyebolts to the auxiliary counter-
weight (4). Temporarily support and lift it with a
lifting tool enough to remove the hood catch and
the two mounting bolts from behind the auxiliary
counterweight. The auxiliary counterweight (4)
can now be removed.
4 Auxiliary weight: 170 kg
4. Remove the four mounting nuts from the exhaust
muffler (5). Remove the shield. Loosen the tail
pipe clamp (6) nut from U-bolt (7) and remove
the muffler and the tail pipe.
(6)
ENGINE AND WORK EQUIPMENT PUMP ASSEMBLY
