EXPLANATION OF COMPONENTS OPERATION
3-44

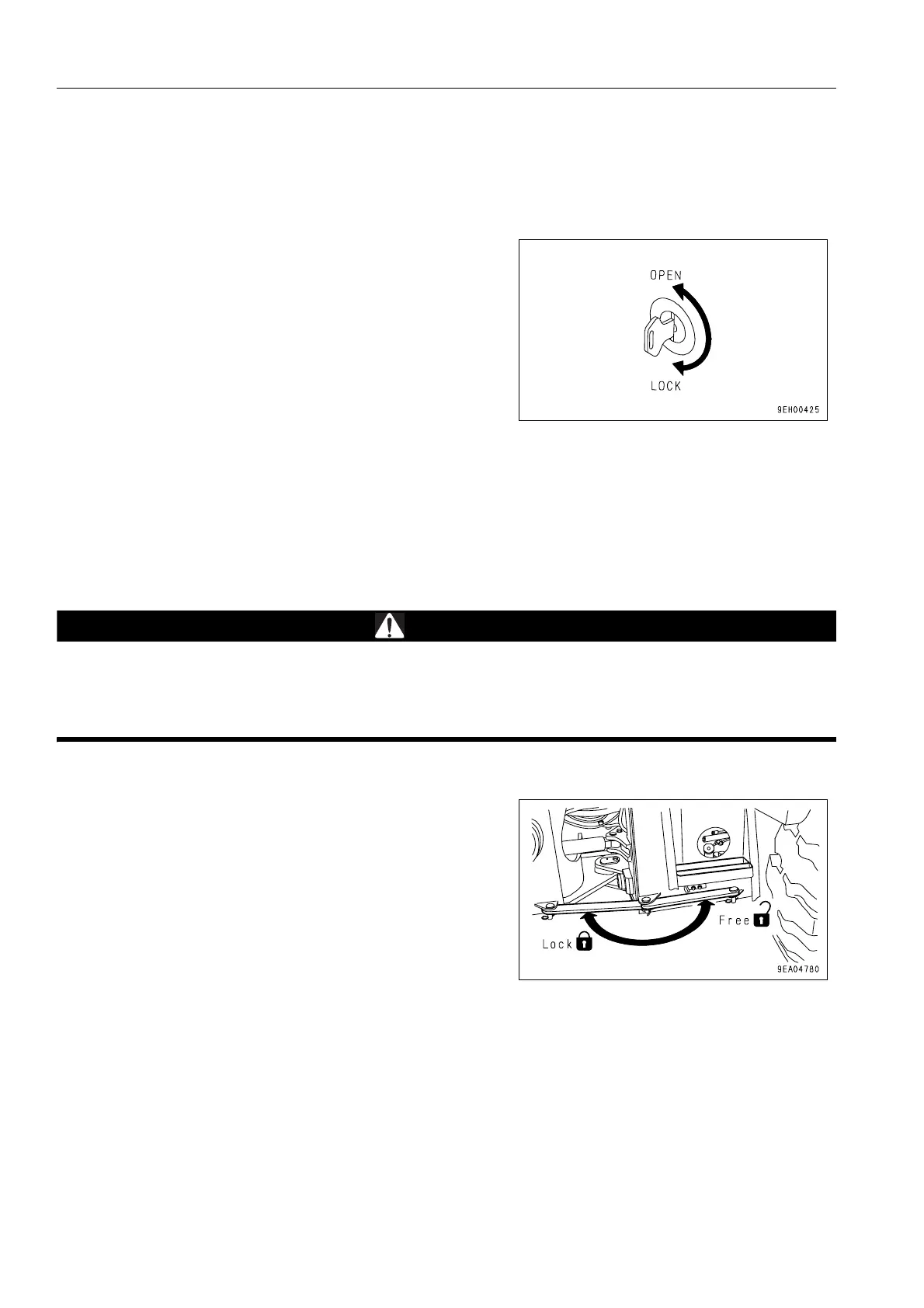

METHOD OF OPENING AND CLOSING COVER WITH LOCK
(ENGINE SIDE COVER)
TO OPEN THE COVER
1. Insert the key into the key slot.
2. Turn the key counterclockwise and open the cover by pull-
ing the cover grip.
TO LOCK THE COVER
1. Close the cover and insert the key into the key slot.
2. Turn the key clockwise and take the key out.
SAFETY BAR 3
WARNING
q When carrying out maintenance or transporting the machine, always set the safety bar to the LOCK
position.
q Always remove the safety bar for travel operations. If it is not removed, the steering wheel cannot be
used for steering, and this may lead to serious damage or injury.
This is a device used to lock the front and rear frames during
maintenance or when transporting the machine. It prevents the
front and rear frames from articulating.
To Next Page
