OPERATION EXPLANATION OF COMPONENTS
3-39
CONTROL LEVERS, PEDALS 3
DIRECTIONAL LEVER
This lever (1) is used to switch the direction of travel of the
machine between forward and reverse.
When starting the engine, if the directional lever is not at the N
position, the engine will not start.
Position (a): FORWARD
Position N: NEUTRAL
Position (b): REVERSE
REMARK
When the starting switch is turned to the ON position, if the
directional lever is not at the N position, the central warning
lamp lights up and the alarm buzzer sounds intermittently.
When the directional lever is set to the N position, the central
warning lamp goes out and the alarm buzzer stops.

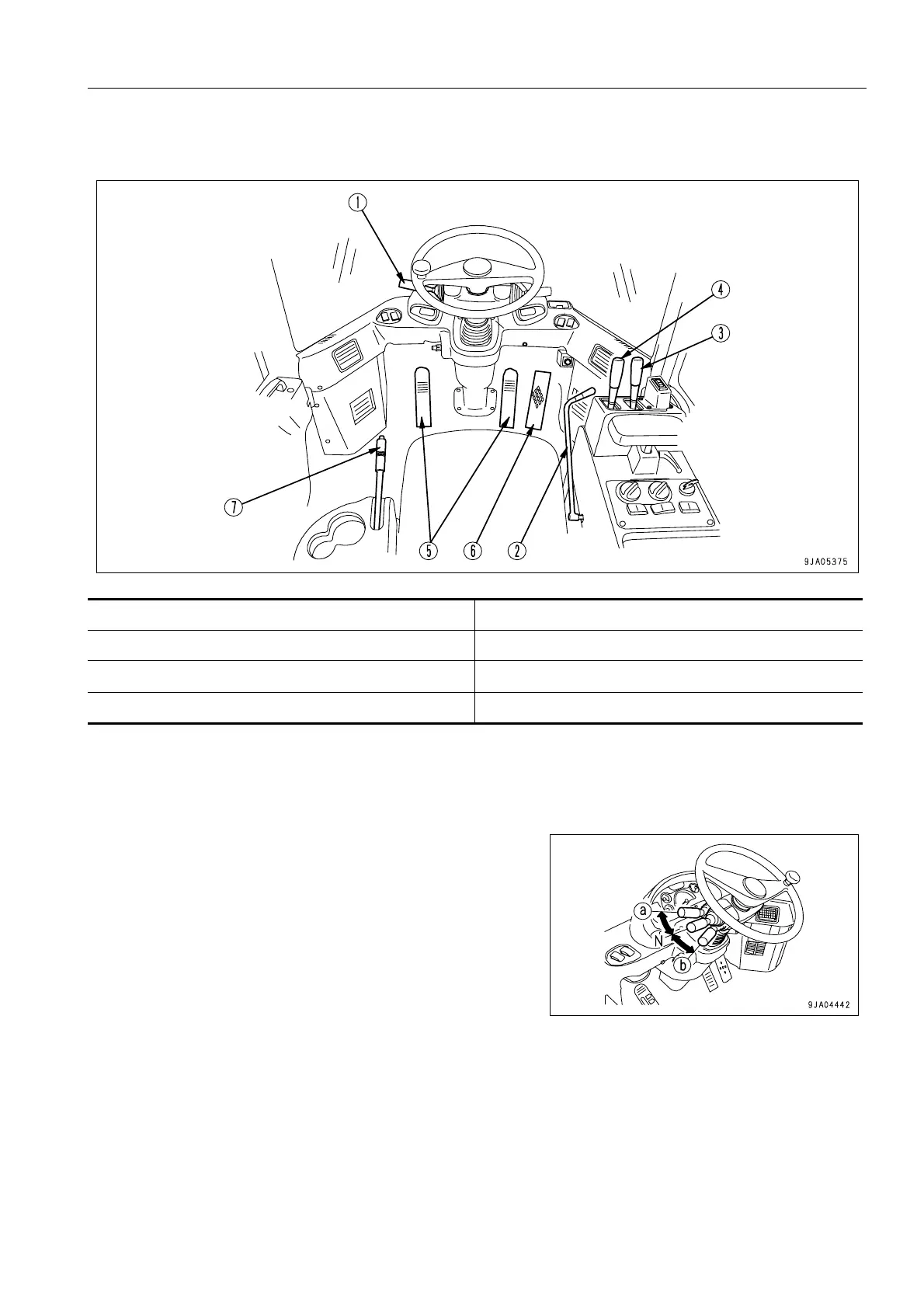

(1) Directional lever (5) Brake pedal
(2) Safety lock lever (for work equipment lever) (6) Accelerator pedal
(3) Lift arm control lever (7) Parking brake lever
(4) Bucket control lever
