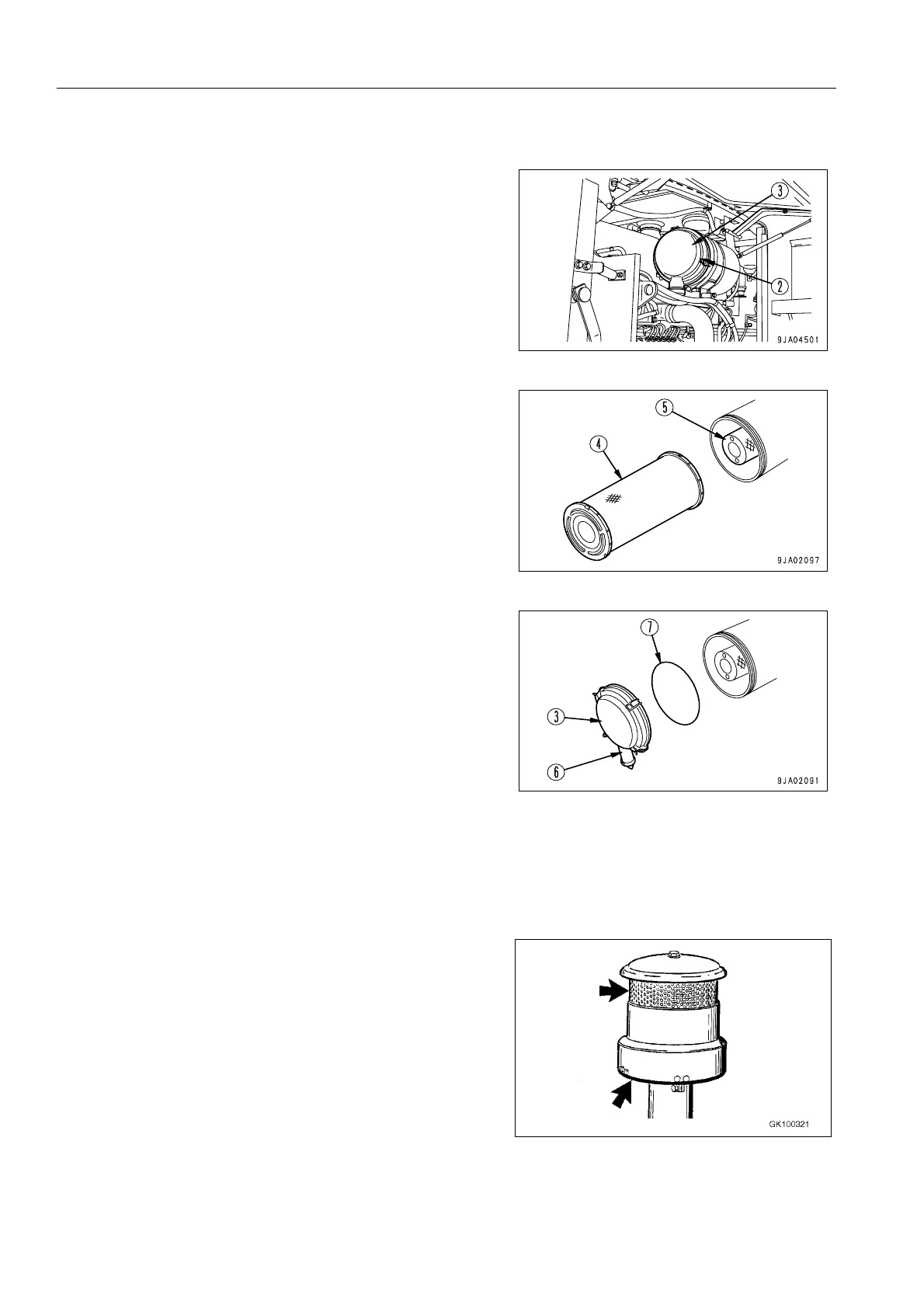

REPLACING ELEMENT
1. Open the engine side cover on the right side of the
machine.
2. Remove three clips (2), then remove cover (3).
3. Remove outer element (4).
Do not remove inner element (5) at this time, however.
4. Clean the interior of the air cleaner body, cover (3) and
evacuator valve (6).
5. Remove inner element (5), then install a new inner element immediately.
6. Fit new outer element (4), replace O-ring (7) with a new part, install cover (3), then secure with clips (2).
DUST PRE-EXTRACTOR "TURBO II": CHECK, CLEAN
(This pre-extractor is an optional extra)
The intake screen and the dust extractor gap (at the bottom cir-
cumference of the pre-extractor) must always be kept clean.
The pre-extractor should be unscrewed and its condition
checked from time to time depending on use. If necessary,
blow out the pre-extractor from the inside.
