MAINTENANCE SERVICE PROCEDURE
4-29
CLEAN AIR CONDITIONER CONDENSER 4
WARNING
q Do not wash the condenser with a steam cleaner. There is danger that the condenser could overheat.
q If high-pressure water hits your body directly or dirt is sent flying, there is danger of personal injury.
Always wear protective glasses, dust mask, and other protective equipment.
If there is mud or dust on the air conditioner condenser, clean it with water.
If the water pressure is too high, the fins may get deformed. When washing with a high pressure washing
machine, apply the water from a reasonable distance.

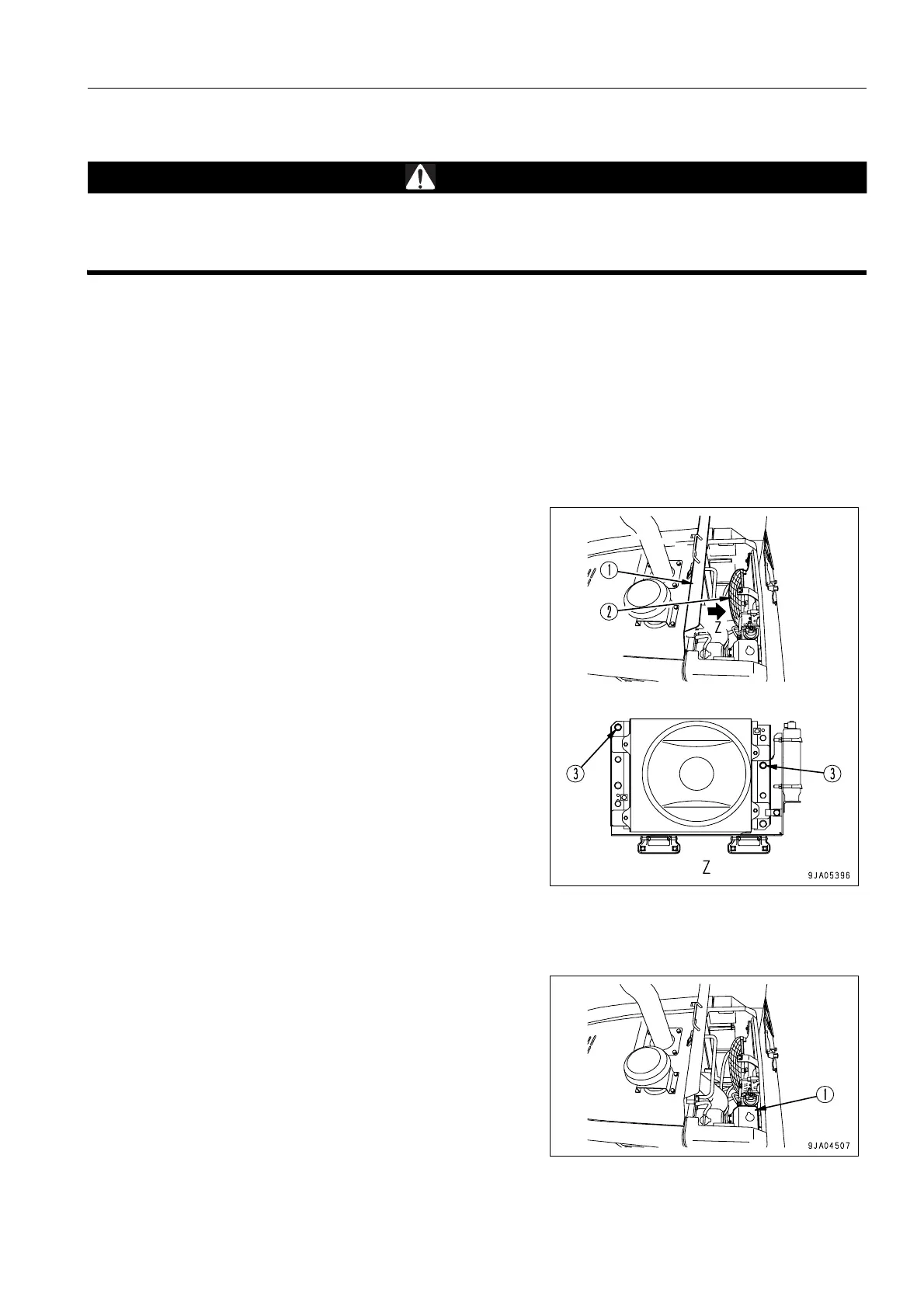

WASHING METHOD
1. Open top cover (1) at the front of the engine hood.
2. Remove 2 mounting bolts (3) at the top of condenser (2).
3. Hold the top of condenser (2) and tip it to the rear. A gap is
formed between the engine hood and condenser.
4. Wash with water from the top.
5. Pull condenser (2) back to the original position and fit bolt
(3).
CHECK WINDOW WASHING FLUID LEVEL, ADD FLUID 4
Check the washing fluid levels in washer tank (1). When the
fluid has run low, add automotive window washing fluid.
Be careful not to let dust get into the fluid.
