Komatsu WA320-5H Service Manual

FOREWORD DIMENSIONS, WEIGHTS AND OPERATING DATA
1-17

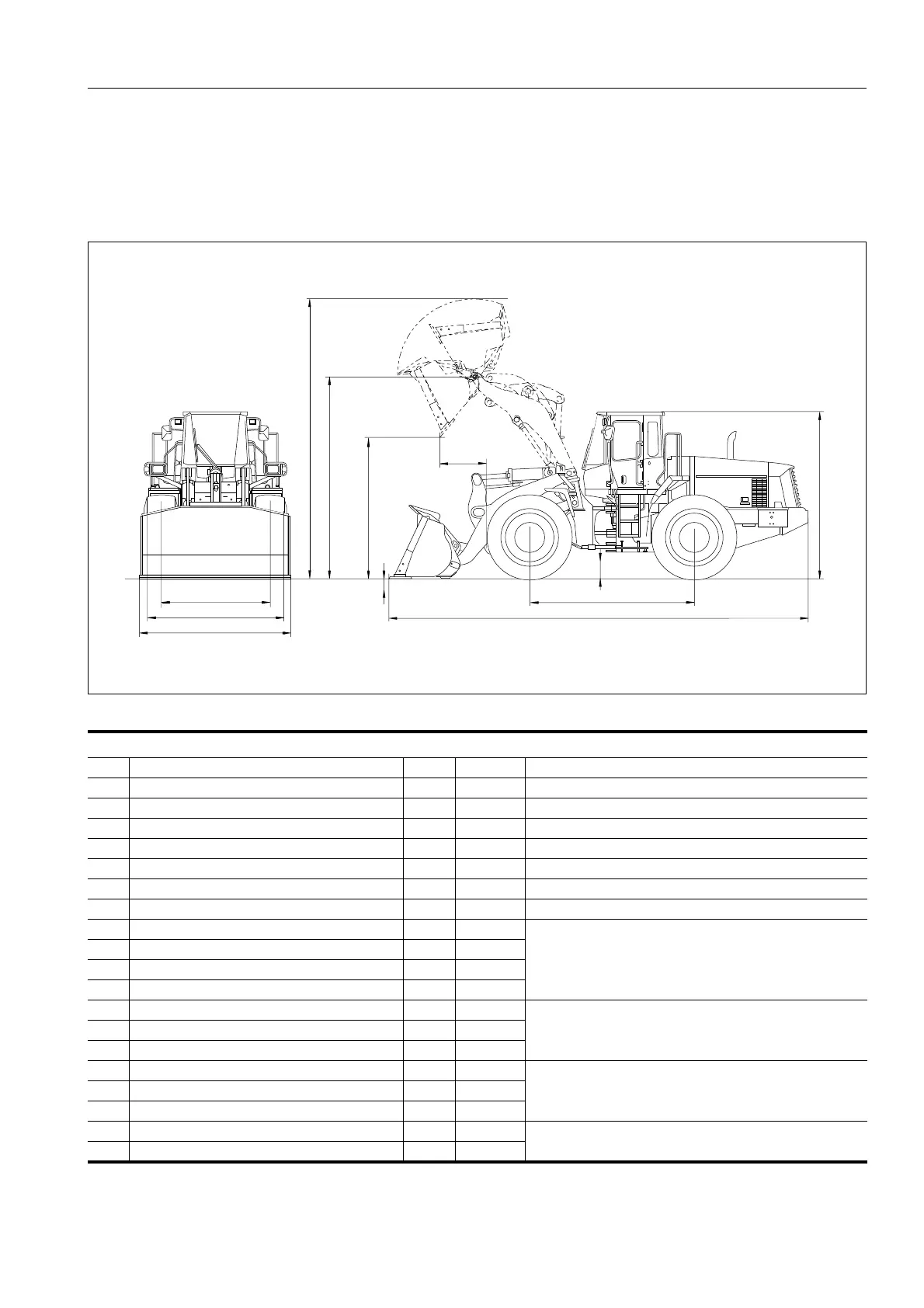

DIMENSIONS, WEIGHTS AND OPERATING DATA
WA320-5H: DIMENSIONS, WEIGHTS AND OPERATING DATA
Measurements, operating data
Bucket capacity to ISO 7546 m³ 2,7
Material density t/m³ 1,8
Bucket weight without teeth kg 1.040
Static tipping load, straight kg 12.000
Static tipping load, 40° angle kg 10.355
Breakout force, hydraulic kN 134
Lifting capacity, hydraulic, on ground kN 155
Operating weight *) kg 14.040
a Reach at 45° discharge mm 990
b Dumping height at 45° discharge mm 2.855
c Lift height, hinge pin mm 3.910
d Height to upper edge of bucket mm 5.260
e Digging depth mm 105
A Overall length, bucket on ground mm 7.475
B Wheel base mm 3.030
C Bucket width mm 2.740
These values refer to machines with 20.5 R25
L3
D Width over tyres mm 2.525
E Gauge mm 2.050
F Ground clearance mm 440
*) Machine without additional counterweight
H Overall height mm 3.200
A
B
F
H
a
d
c
b
C
D
E
e
WA320-5Abm

Komatsu WA320-5H Specifications

General

Brand	Komatsu
Model	WA320-5H
Category	Compact Loader
Language	English
