EXPLANATION OF COMPONENTS OPERATION
3-30
SWITCHES 3
STARTING SWITCH
This switch (1) is used to start or stop the engine.
OFF position
In this position, it is possible to insert or remove the starting
switch key. All the electric system switches are off, and the
engine will stop.
ON position
In this position, electric current flows to the charging circuit,
lamp circuit, and accessory circuit.
Keep the starting switch key at the ON position while the
engine is running.

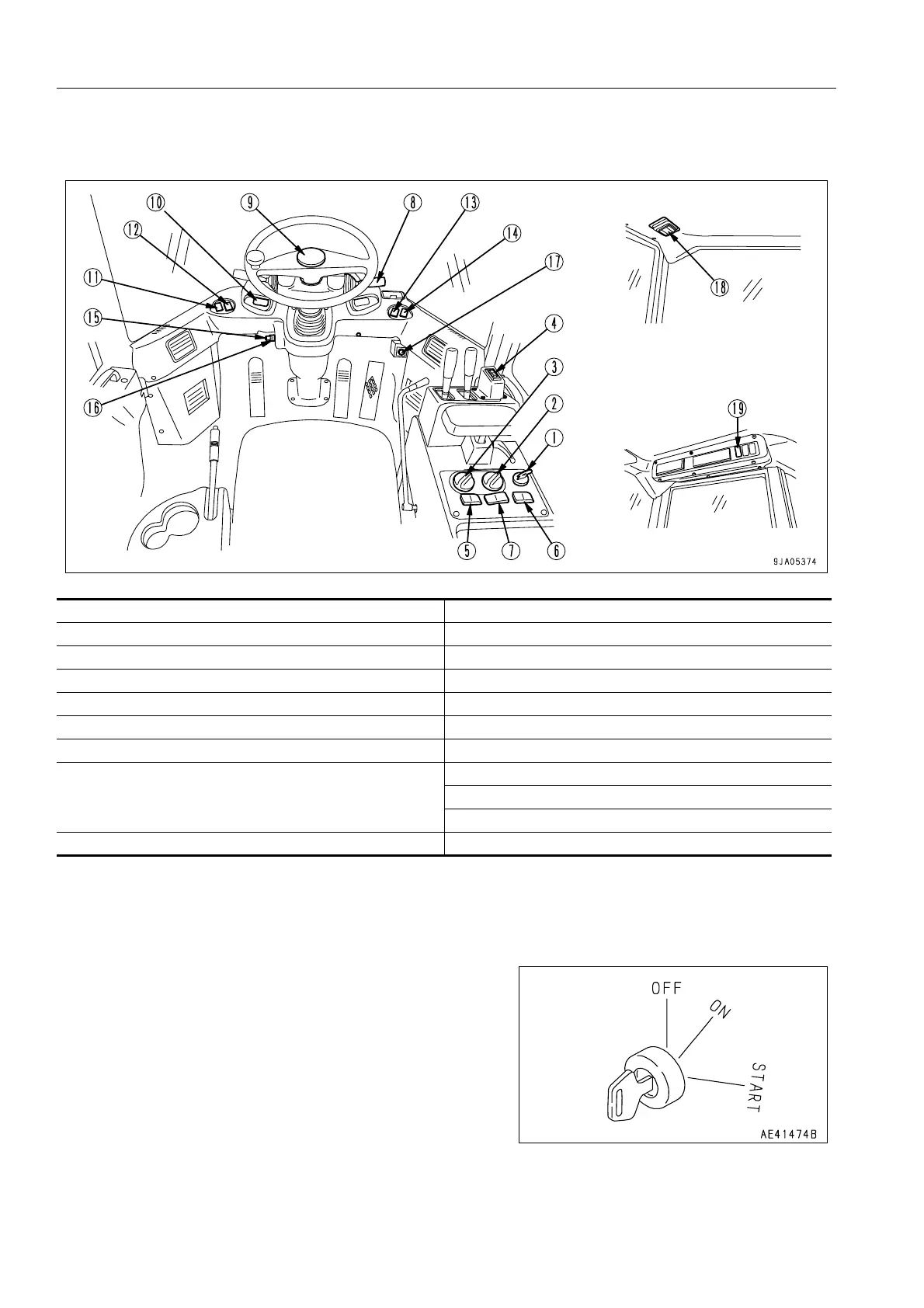

(1) Starting switch (10) Hazard lamp switch
(2) Speed range selector switch (11) Front working lamp switch
(3) Variable shift control switch (12) Rear working lamp switch
(4) Directional selector switch (13) Monitor panel mode selector swiitch 1
(5) Directional selector actuation switch (14) Monitor panel mode selector swiitch 2
(6) Traction control switch (15) Front wiper switch
(7) E.C.S.S. switch (16) Rear wiper switch
(8) Lamp switch
Turn signal lever
Dimmer switch
(17) Cigarette lighter
(18) Room lamp switch
(19) Rear heated wire glass switch
(9) Horn button
