OPERATION EXPLANATION OF COMPONENTS
3-49
AIR CONDITIONER 3
By taking fresh air into the cab through a filter, it is possible to raise the pressure inside the cab. This makes it pos-
sible to provide a pleasant working environment even on dusty jobsites.
GENERAL LOCATIONS AND FUNCTION OF CONTROL PANEL 3
FAN SWITCH
This switch (1) can be used to adjust the air flow to four stages.
It also acts as the main switch for the air conditioner. When the
OFF switch is pressed, the fan stops.
When the switch is pressed, the indicator lamp above the
switch lights up to display the air flow.

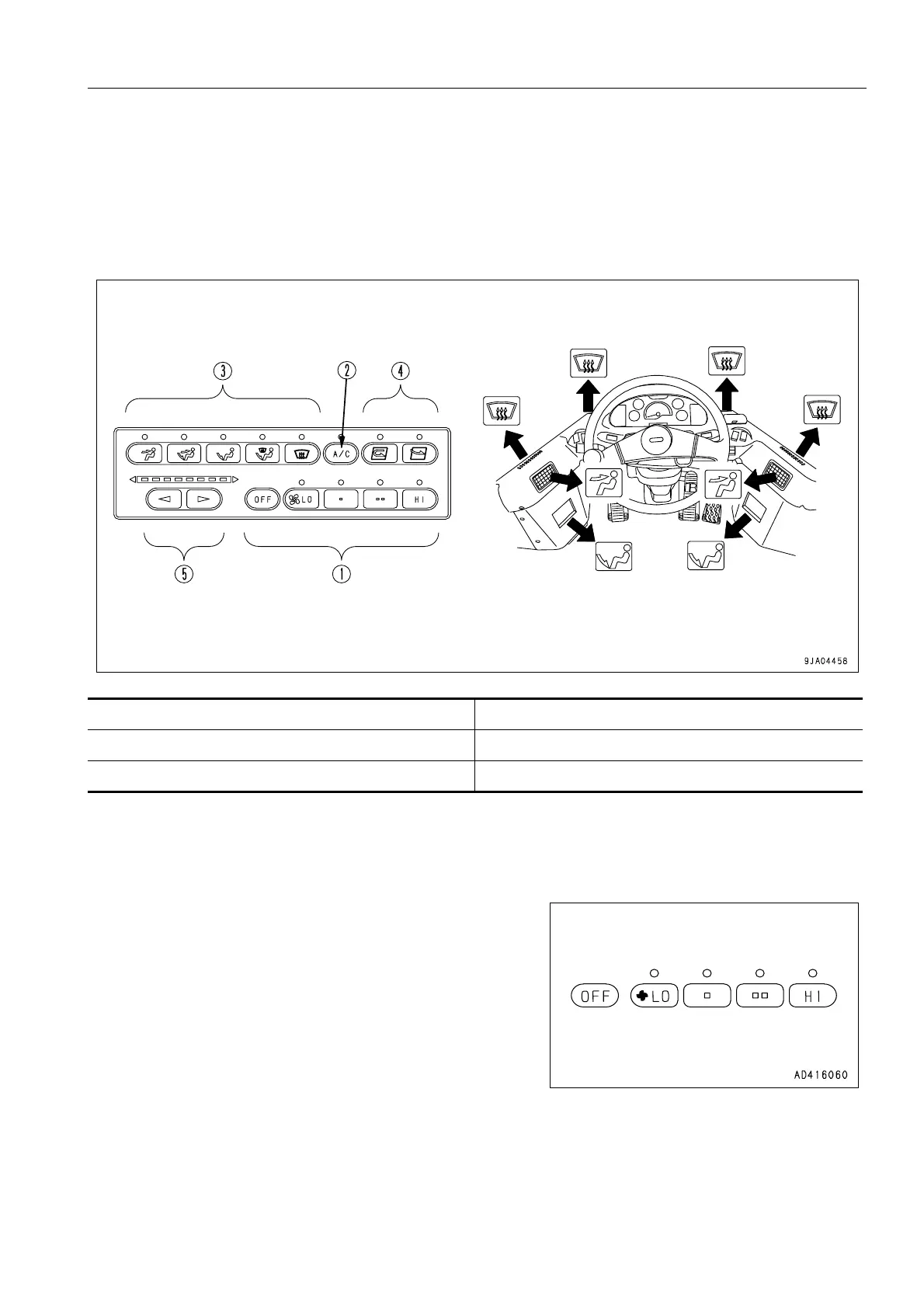

(1) Fan switch (4) FRESH/RECIRC switch
(2) Air conditioner switch (5) Temperature control switch
(3) Mode selector switch
