FUSE
NOTICE
Before replacing a fuse, be sure to turn off the starting switch.
The fuses protect the electrical equipment and wiring from burning
out.
If the fuse becomes corroded, or white powder can be seen, or the
fuse is loose in the fuse holder, replace the fuse.
Replace the fuse with another of the same capacity.

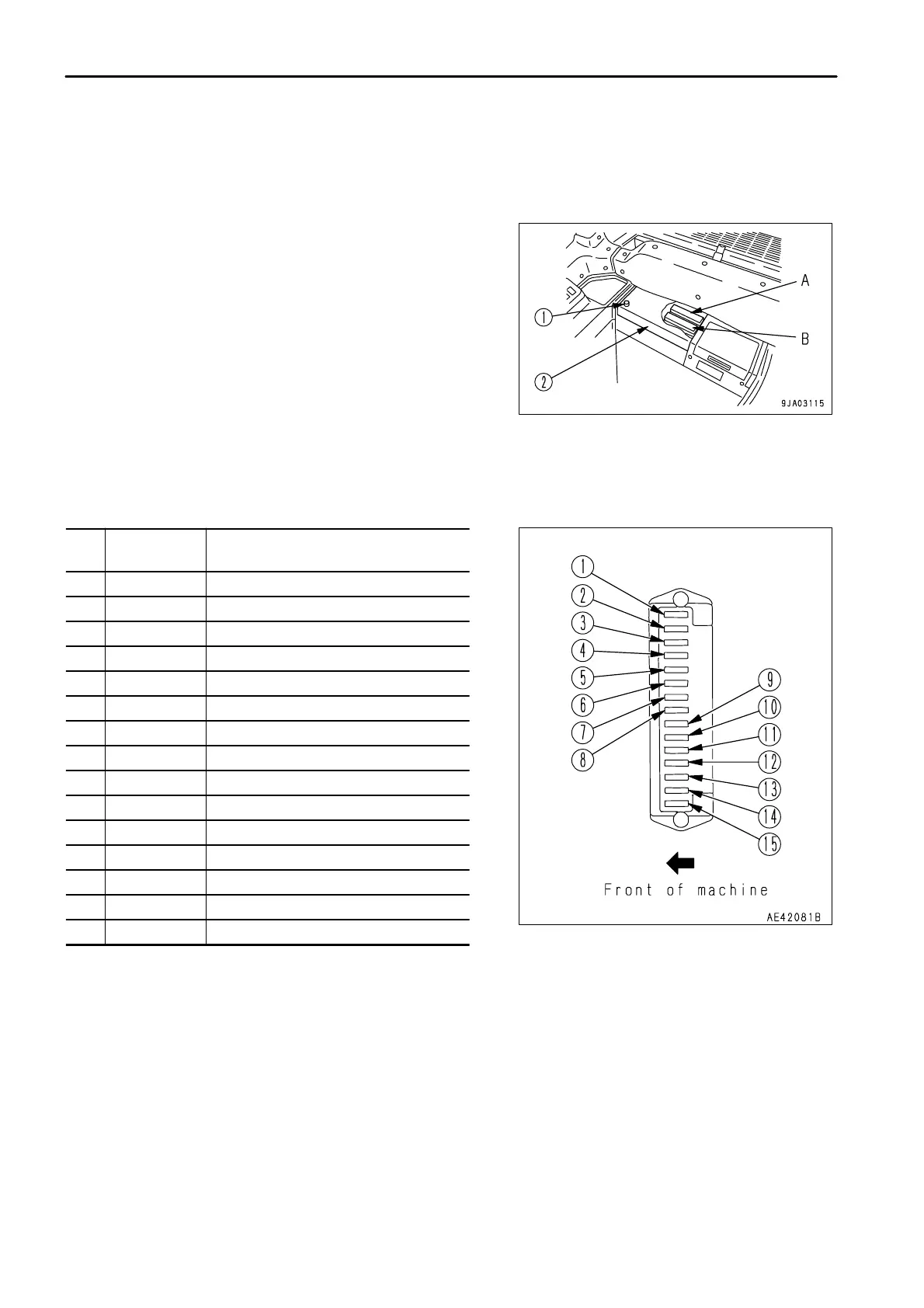

Loosen knob (1) at two places, then remove cover (2). The fuse
boxes are A and B.
FUSE CAPACITY AND NAME OF CIRCUIT
FUSE BOX A
No.
Fuse
capacity
Name of circuit
(1) 10A Horn, air suspension
(2) 20A Transmission control
(3) 10A Parking brake
(4) 10A Emergency steering
(5) 20A Work equipment positioner
(6) 20A Rear heated wire glass
(7) 20A Wiper, washer
(8) 10A Rotating lamp (if equipped)
(9) 10A (KOMTRAX)
(10) 10A Backup lamp, brake lamp
(11) 20A Main lamp circuit
(12) 10A Right side clearance lamp
(13) 10A Left side clearance lamp
(14) 10A Right head lamp
(15) 10A Left head lamp
