TURNING
WARNING
Operating the steering wheel suddenly at high speed or operating the steering wheel on steep slopes is dangerous. Do not
operate the steering wheel in such situations.
If the engine stops when the machine is traveling, the emergency steering is actuated. Note that this system is only for steering
in emergencies, so never stop the engine.
It is particularly dangerous if the engine stops when the machine is traveling on slopes, so never let the engine stop when
traveling on slopes.
If the engine stops, stop the machine immediately at a safe place.

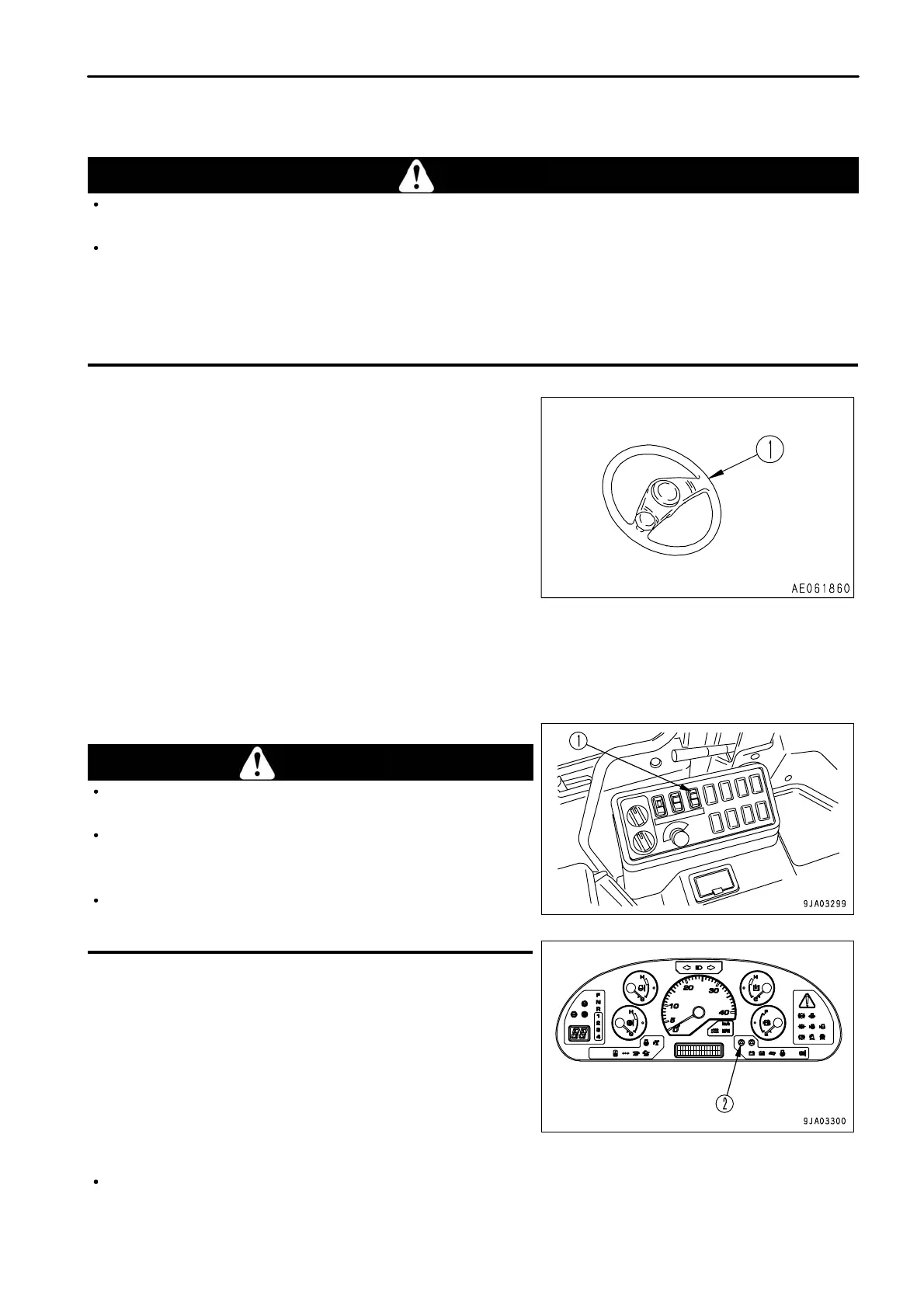

When traveling, use steering wheel (1) to turn the machine.
With this machine, the front frame is joined to the rear frame at the
center of the machine by the center pin. The front and rear frames
bend at this point, and the rear wheels follow in the same track as
the front wheels when turning.
Turn the steering wheel lightly to follow the machine as it turns.
NOTICE
When the steering wheel is turned fully, if it reaches the end of its stroke,
do not try to turn it further.
Check that there is a play of 50 to 100 mm (2.0 to 3.9 in) in the steering
wheel. Check also that the steering works properly. If any abnormality is
found, please contact your Komatsu distributor for inspection.
EMERGENCY STEERING
(If equipped)
CAUTION
Never actuate the emergency steering except during emergencies or
when checking the function.
The emergency steering can be used continuously for a maximum of 60
seconds. Operating it continuously for more than 60 seconds may
damage the system.
When using the emergency steering, travel at less than 5 km/h (3.1
MPH).
During emergencies or when stopping the engine to check the
function, press emergency steering switch (1). Emergency
steering pilot lamp (green) (2) will light up and the steering can be
operated.
Emergency steering pilot lamp (green) (2) lights up to inform the
operator that the emergency steering system has been actuated.
The emergency steering system is provided to enable the machine to be steered under the following conditions.
The starting switch is at the ON position.
3 - 123
