OPERATION
EXPLANATION OF COMPONENTS
EXPLANATION OF COMPONENTS
The following is an explanation of devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operating
the equipment, and the meanings of the displays.

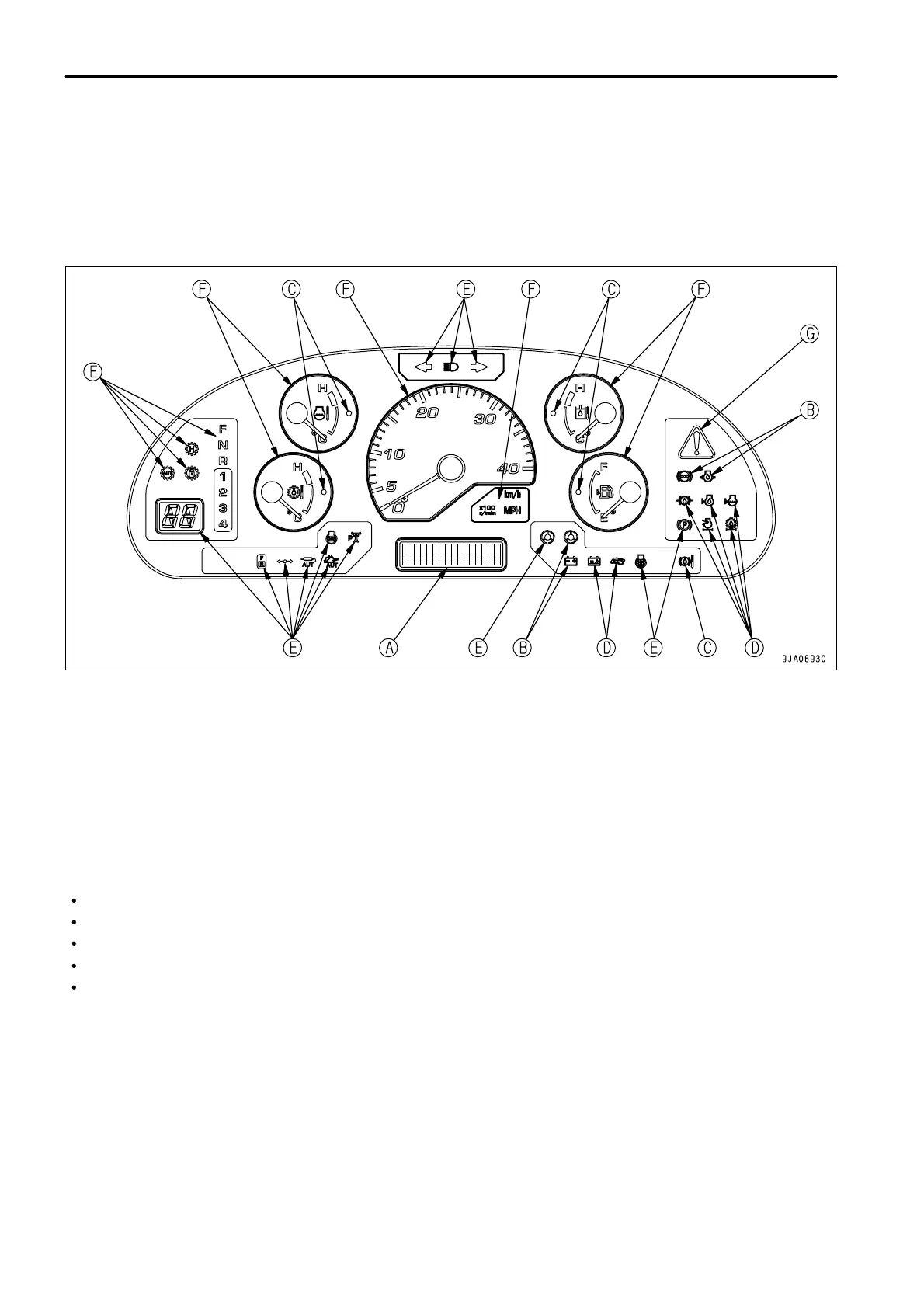

MACHINE MONITOR
(A)
(B)
(C)
(D)
Character display portion
Emergency stop items
Caution items
Inspection and maintenance items
(E)
(F)
(G)
Pilot display portion
Meter display portion
Central warning lamp
NOTICE
When turning the starting switch to the ON position before starting the engine, the central warning lamp, caution lamps, and pilot
lamps light up for 2 seconds to check the system.
After the alarm buzzer sounds for 2 seconds, it goes off if the condition is normal.
The shift indicator display shows "88" for 2 seconds.
The indicator gauges and meters are actuated after the above system check is completed.
The character display shows "KOMATSU SYSTEM CHECK" for 3 seconds.
If the lamps do not light up, there is probably a failure or disconnection, so contact your Komatsu distributor for inspection.
