MAINTENANCE
SERVICE PROCEDURE
LUBRICATING
1.

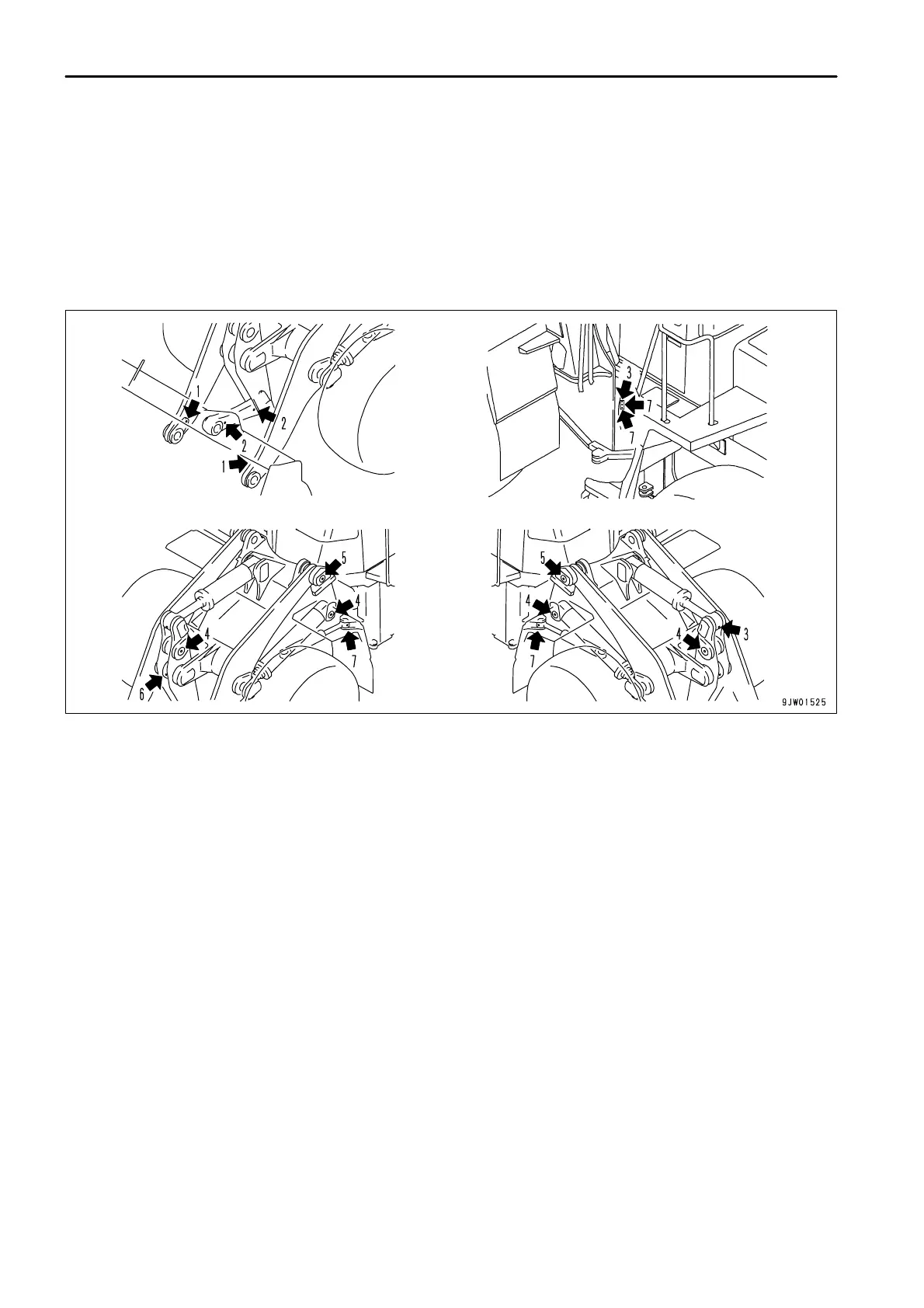

Using a grease pump, pump in grease through the grease fittings marked by the arrows.
2.
After greasing, wipe off any old grease that was pushed out.
NOTICE
On jobsites where there is a lot of heavy-duty work, or on jobsites where operations are carried out continuously for more than
eight hours, reduce the greasing interval and carry out greasing more frequently.
(1)
(2)
(3)
(4)
Bucket pin (2 places)
Bucket link pin (2 places)
Dump cylinder pin (2 places)
Lift cylinder pin (4 places)
(5)
(6)
(7)
Lift arm pivot pin (2 places)
Bell crank pin (1 place)
Steering cylinder pin (4 places)
4 - 50
