3.2 Explanation of components Operation
3-34 WA470-6H – VEAM946100

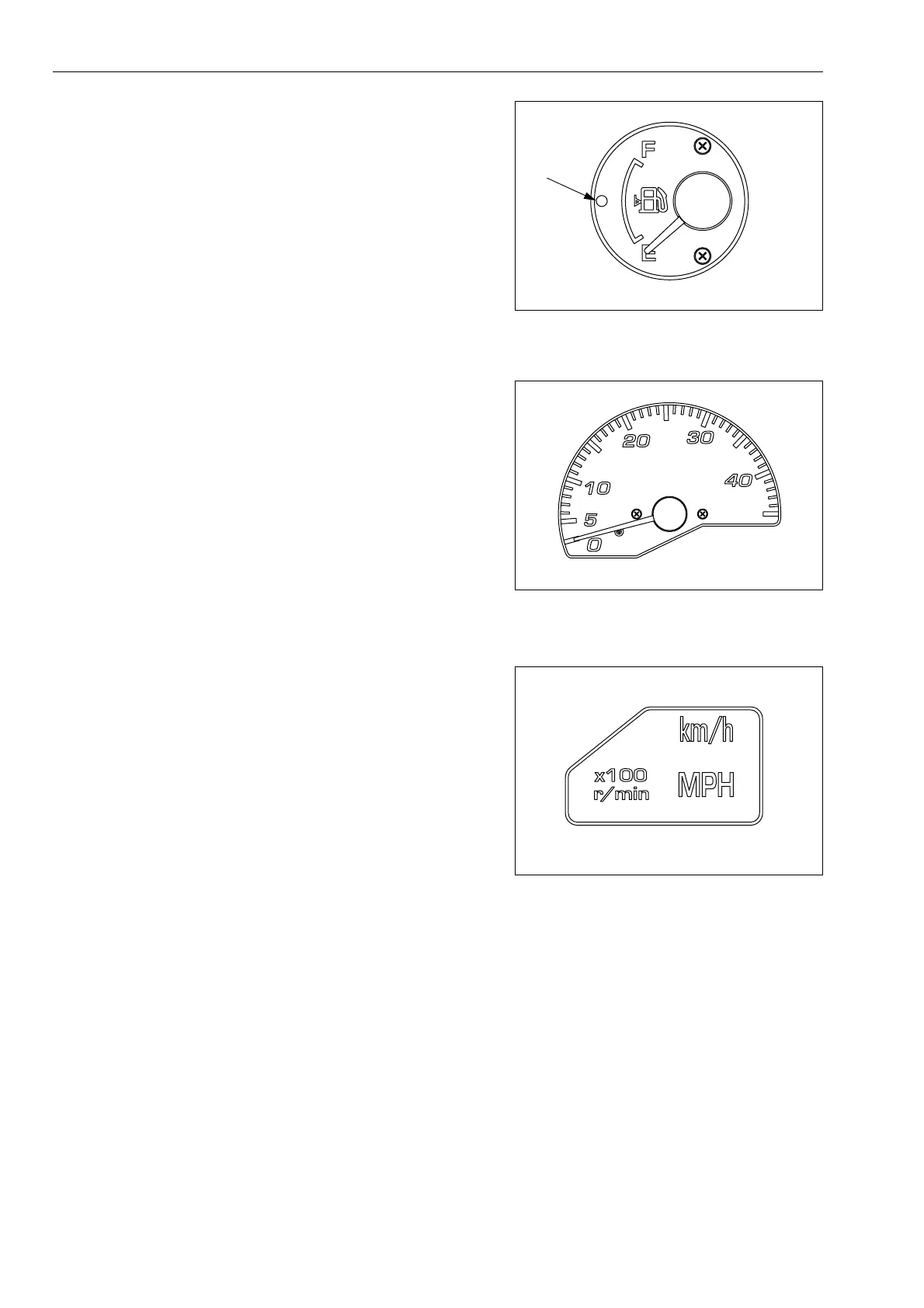

4. Fuel gauge
This meter (4) indicates the amount of fuel remaining in the fuel
tank.
If the indicator is at the F position, it indicates that the tank is full.
If the indicator is at the E position, it indicates that there is little
fuel remaining. When the amount of remaining fuel goes below
27 liters (7.13 US gal), caution lamp (A) inside the fuel gauge
lights up.
If it lights up, check the fuel level and add fuel.
5. Speedometer
This meter (5) indicates the travel speed of the machine.
The display unit is indicated on meter display pilot lamp (6).
It is also possible to display the engine speed by switching meter
(5).
If you wish to switch between the speedometer and tachometer,
please contact your KOMATSU distributor to have it switched.
6. Meter display pilot lamp
This lamp (6) displays the unit for the travel speed or engine
tachometer.
