3.2 Explanation of components Operation
3-26 WA470-6H – VEAM946100

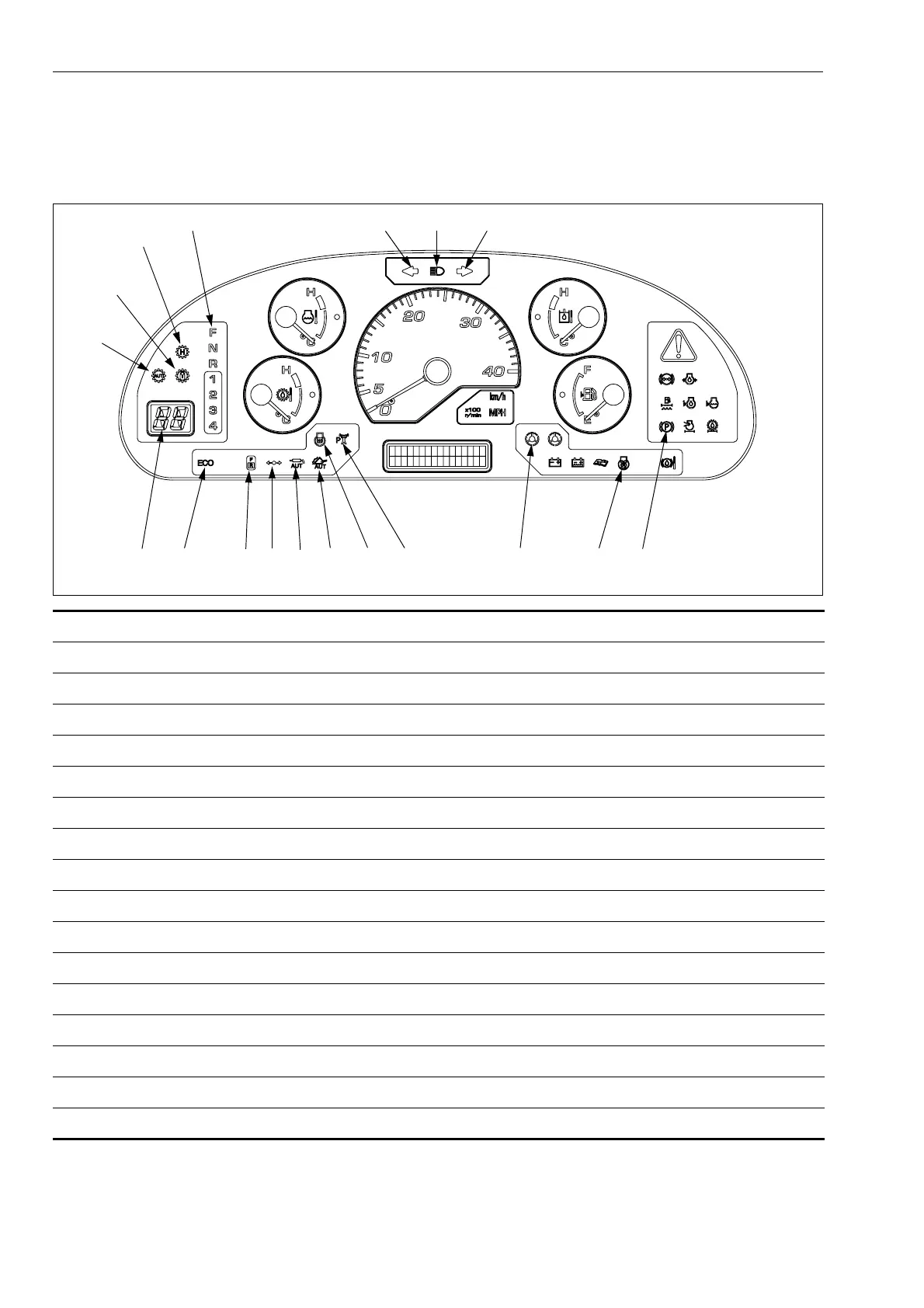

Pilot display portion
When the starting switch is ON, the pilot display lights up when
the display items are functioning.
(1) Parking brake pilot lamp
(2) Cooling fan reverse rotation pilot lamp
(3) Emergency steering pilot lamp
(4) Output mode pilot lamp (power mode)
(5) Preheating pilot lamp
(6) Semi auto digging pilot lamp (Option)
(7) Auto-greasing pilot lamp (Option)
(8) Joystick pilot lamp (Option)
(9) Directional selector pilot lamp
(10) Economy operation display lamp
(11) Shift indicator
(12) Auto-shift pilot lamp
(13) Torque converter lockup pilot lamp (Option)
(14) Shift hold pilot lamp
(15) Shift lever position pilot lamp
(16) Turn signal pilot lamp
(17) Head lamp high beam pilot lamp
GK038018
1
16171615
13
23
14
456811
12
7910
