Foreword 1.6 Dimensions, weights and operating data
WA470-6H – VEAM946100 1-21
1.6 Dimensions, weights and operating data

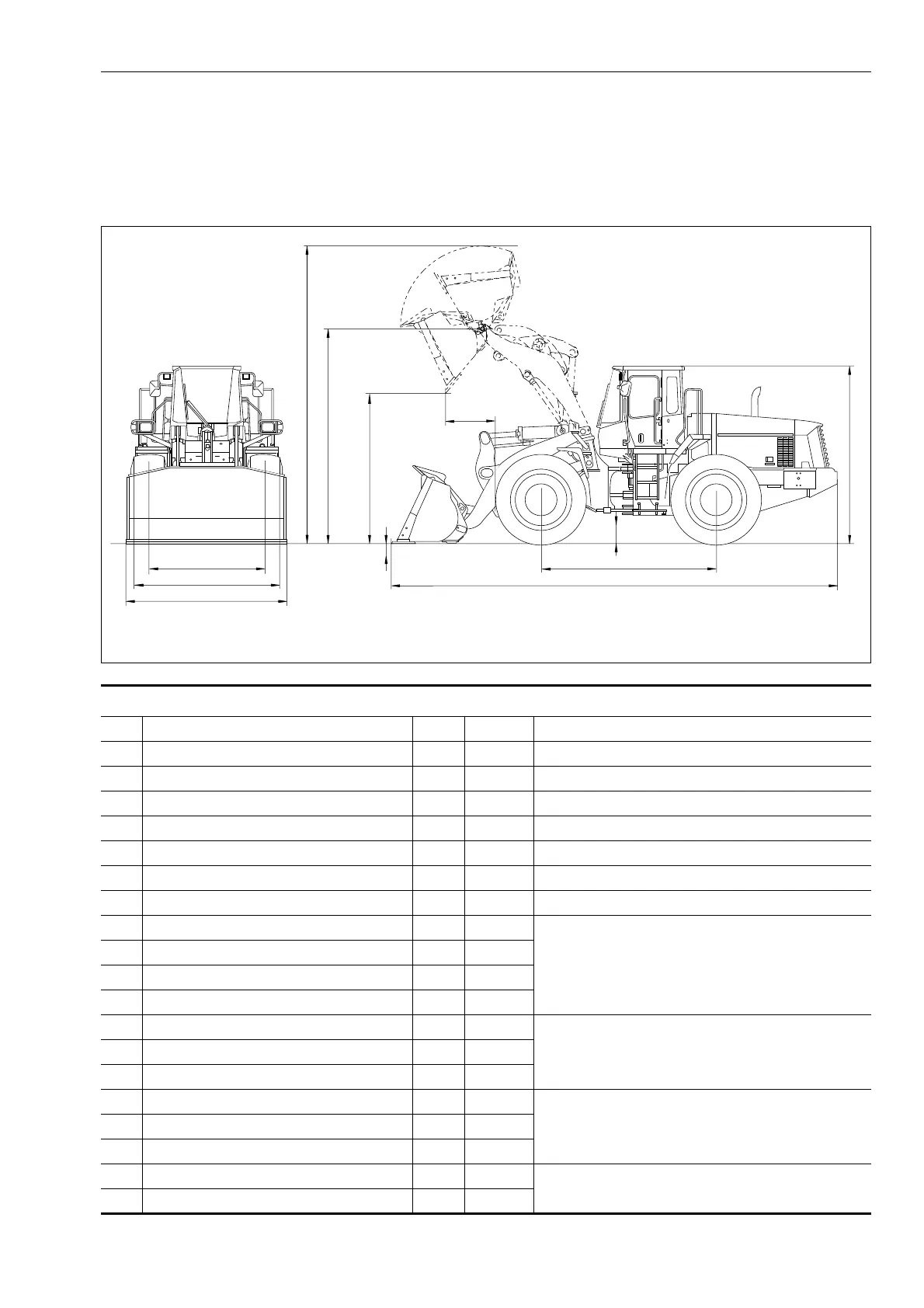

1.6.1 WA470-6H: Dimensions, weights and operating data
Measurements, operating data
Bucket capacity to ISO 7546 m³ 4.1 without teeth and without BOC
Material density t/m³ 1.8
Bucket weight without teeth kg 1,860
Static tipping load, straight kg 18,710
Static tipping load, 35° angle kg 16,720
Breakout force, effective kN 186
Lifting capacity, effective, on ground kN 203
Operating weight *) kg 22,910
a Reach at 45° discharge mm 1,280
b Dumping height at 45° discharge mm 3,085
c Lift height, hinge pin mm 4,335
d Height to upper edge of bucket mm 5,975
e Digging depth mm 125
A Overall length, bucket on ground mm 8,970
B Wheel base mm 3,450
C Bucket width mm 2990
These values refer to machines with 26-5R25D Width over tyres mm 2,915
E Gauge mm 2,240
F Ground clearance mm 565
*) Machine without additional counterweight
H Overall height mm 3,470
GK047071
A
B
F
H
a
d
c
b
C
D
E
e
