Attachments, Options 6.5 Multi-function lever (with/without auxiliary control lever)
WA470-6H – VEAM946100 6-21

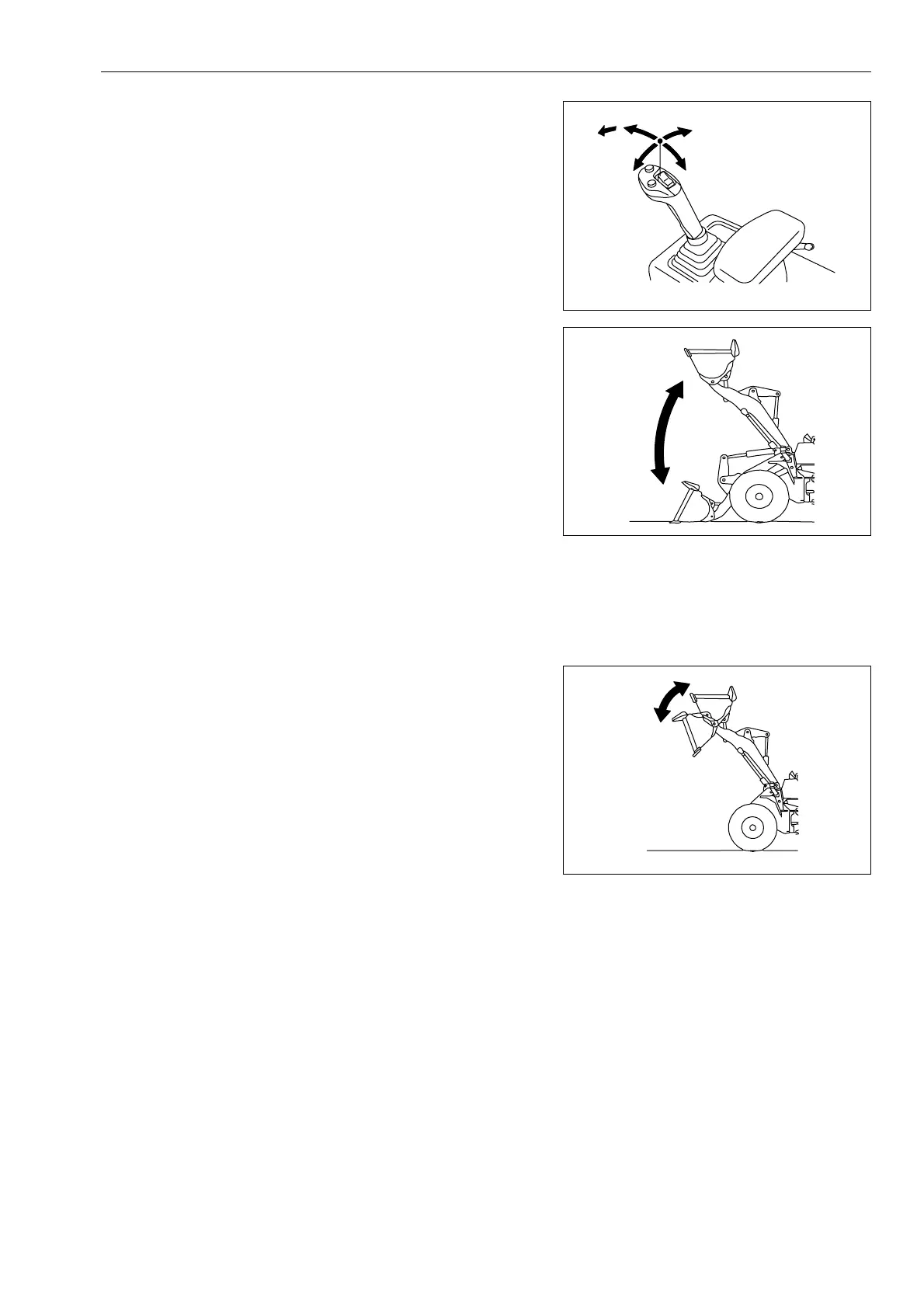

1. Work equipment lever
Use this lever (1) to operate the lift arm and bucket.
NOTE
Do not use the FLOAT position when lowering the bucket. Use
the FLOAT position when leveling, see "Leveling operation
(3-134)".
Lift arm operation
Position (a): RAISE
When the work equipment control lever is pulled further from the
RAISE position, the lever is stopped in this position until the lift
arm reaches the preset position of the kickout, and the lever is
returned to the HOLD position.
Position (b): HOLD
The lift arm and bucket stop and remain in the same position.
Position (c): LOWER
Position (d): FLOAT
The lift arm moves freely under external force.
Bucket operation
Position (e): TILT
When the work equipment control lever is pulled further from the
TILT position, the lever is stopped in this position until the bucket
reaches the preset position of the positioner, and the lever is
returned to the HOLD position.
Position (f): DUMP
GK032327
a
b
c
d
e
f
GK032142
Raise
Lower
GK032144
Tilt
Dump
