ADJUSTMENTS PRIOR TO MACHINE START

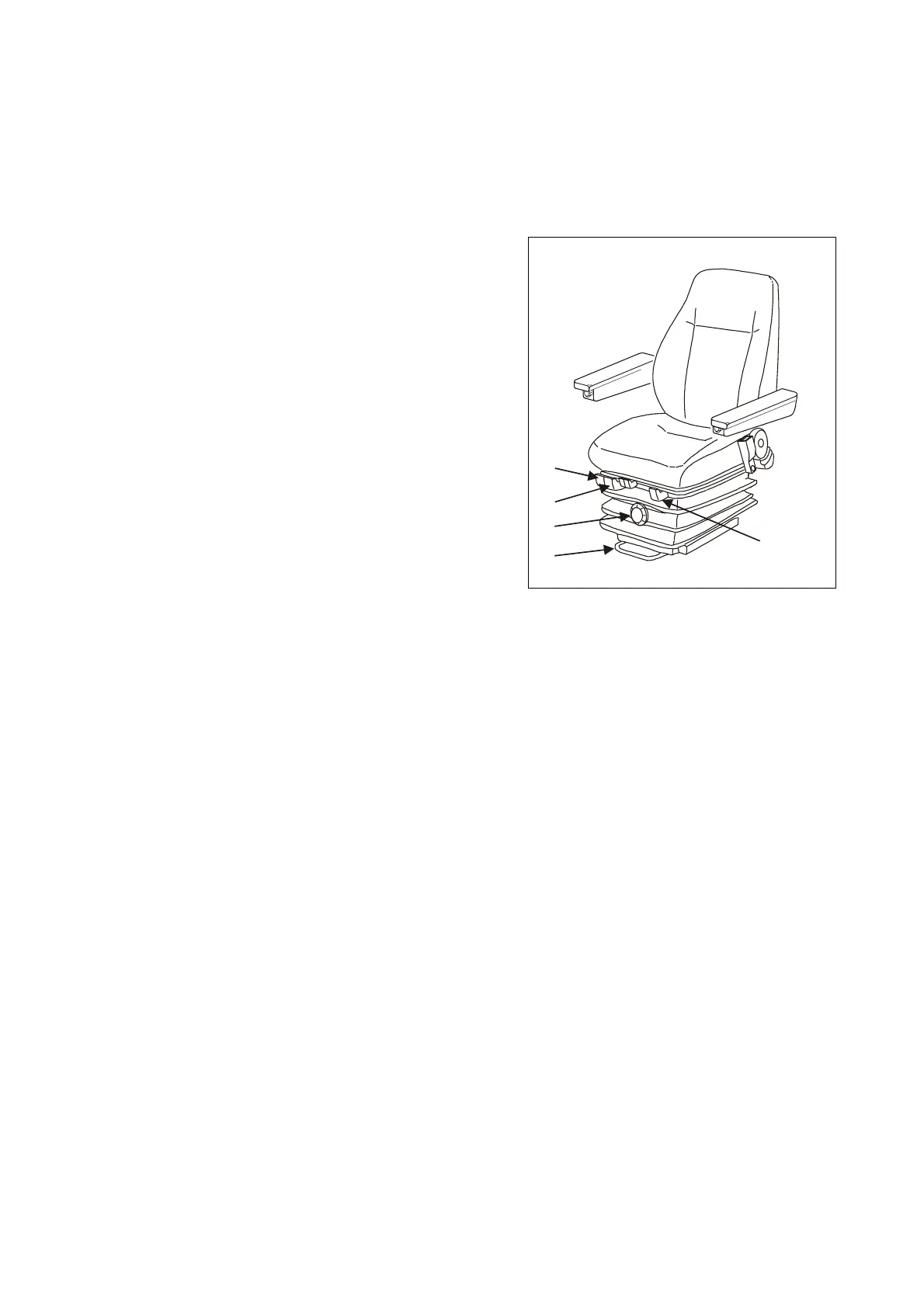

ADJUSTING THE DRIVER’S SEAT
After each change of the driver, re-adjust the driver’s seat. Be-
fore you start operation, check that the seat is adjusted in such a
way that you can fully floor the brake pedal when you lean
against the backrest. Proceed as follows to adjust the seat ac-
cording to your requirements:
1
2
75_020
4
3
5
1 WEIGHT ADJUSTMENT
Turn the handwheel (3) to set the vibration absorbing sys-
tem to the weight of the driver.
2 ADJUSTMENTOFHORIZONTALPOSITION
To adjust the horizontal seating position, pull the lever (4)
and slide the seat forward or backward. To lock the position
of the seat, release the lever again.
3/4 ADJUSTING HEIGHT AND ANGLE OF INCLINATION
You may adjust the height and the angle of inclination of the
driver’s seat with the spring-supported levers (1) and (2).
Use lever (2) to set the front part of the seat, use lever (1) to
set the rear part of the seat.
Adjusting the seat’s height
Adjust the front and the rear section of the seat uniformly.
For this purpose, pull lever (2) and hold it in this position. To
lift up the front part of the seat, it is necessary to relieve
your weight from the front section of the seat cushion by
standing up. Then, sit down on the front part in order to
press down the front section of the seat. Release the lever if
you have reached the right position. The seat is now locked
in its position. Then, pull lever (1) and hold it in this position.
To lift up the rear part of the seat, it is necessary to relieve
your weight from the rear section of the seat cushion by
standing up. Then, sit down on the rear part in order to
press down the rear section of the seat. Release the lever if
you have reached the right position. The seat is now locked
in its position.
Adjusting the angle of inclination of the seat
Adjust the front and rear section of the seat with different
settings. Proceed as described above.
5 ADJUSTING THE BACKREST
To adjust the position of the backrest, slightly lean against
the backrest, pull lever (5) and hold it in this position. Re-
lieve the backrest in order to bend it to the front. Press it to
the back in order to bend it to the back. Release lever (5) if
the backrest is in the desired position. The backrest will lock
in automatically in this position.
