CONTROLS AND INDICATORS
4-5
INSTRUMENT PANEL
The instrument panel can be divided in
In the following sections of this chapter, all elements required for
an efficient machine operation are explained in detail.
CONTROL LAMPS
This group comprises the control lamps for high beam, low
beam, heated rear windscreen, air preheater, direction indicator,
driving direction switch, ALS-electronics (Option) and control
lamps for the high-speed gear (not used).
MEASURING INDICATORS
This group comprises the fuel gauge, the operating hour meter
and the temperature indicator of the coolant.
WARNING LIGHTS
This group comprises the warning lights for charging current,
parking brake, air filter, engine oil-pressure and brake fluid sup-
ply.

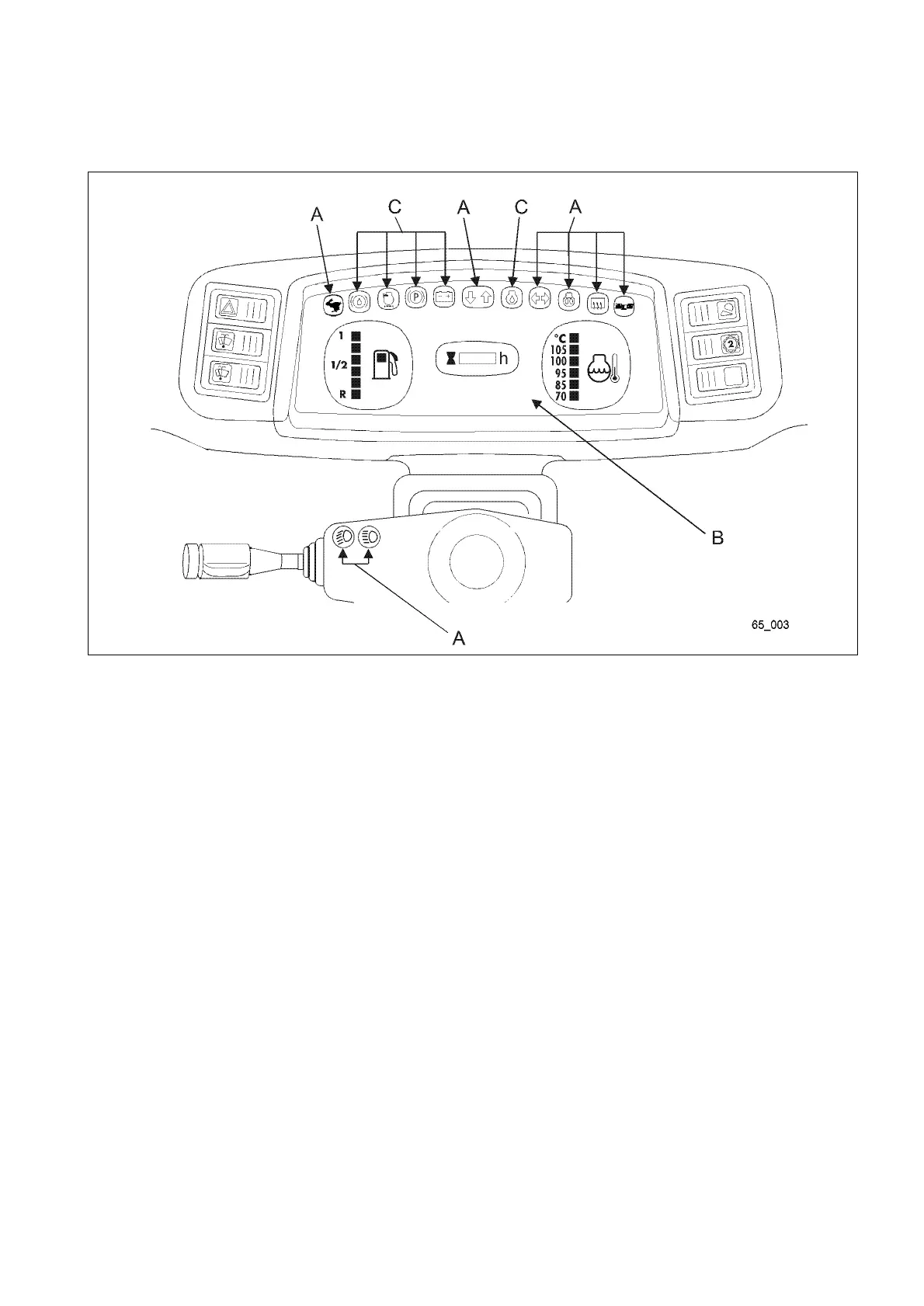

(A) Control lamps
(B) Measuring indicators
(C) Warning lights
