CONTROLS AND INDICATORS

4-9

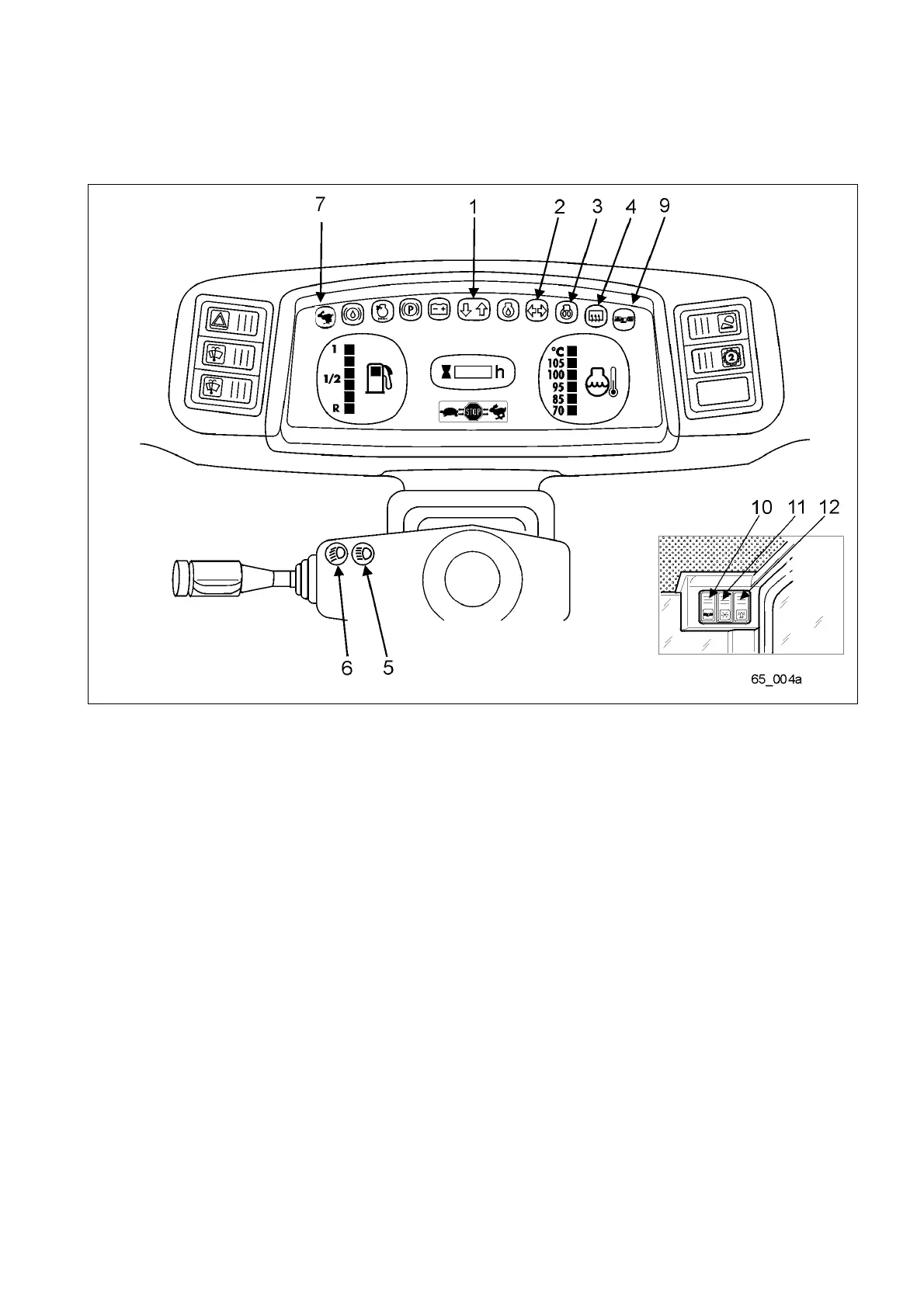

CONTROL LAMPS

1. Driving direction switch indicator

2. Direction indicator control lamp

3. Air preheater control lamp

4. Heated rear windscreen indicator

5. High beam control lamp

6. Low beam control lamp

7. High-speed gear control lamp, high-speed gear switched on (not used)

9. ALS-Electronics control lamp (active only with built in ALS-Electronics)

10. Control lamp in the ALS-Electronics switch (option)

11. Control lamp in the air conditioning switch (option)

12. Warning beacon control lamp (option)
