MAINTENANCE AFTER THE FIRST 50 OPERATING HOURS

7-36

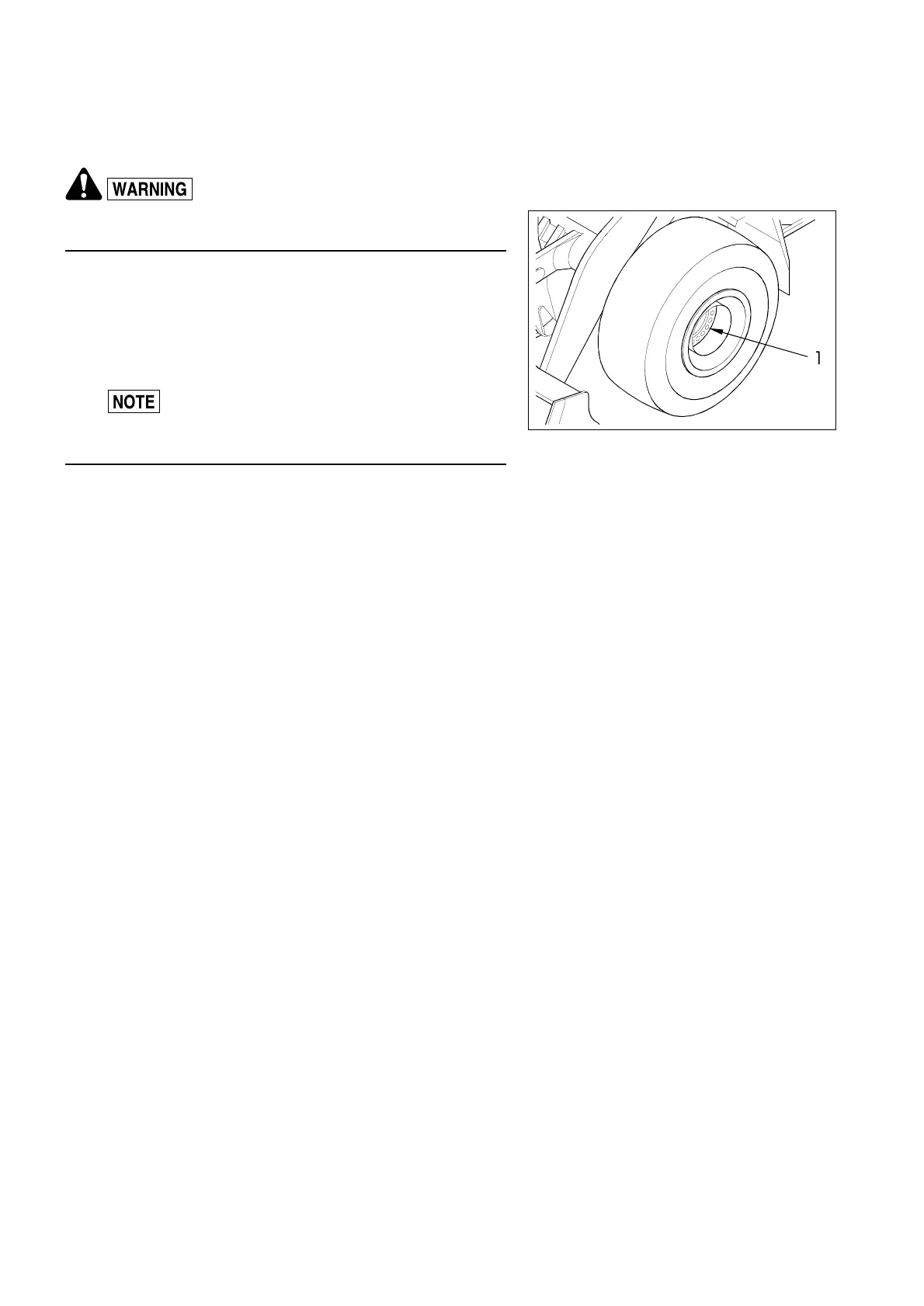

CHECKING AND TIGHTENING THE WHEEL NUTS

• Loose wheel nuts may cause severe accidents!

Regularly check and tighten the wheel nuts.

Retight loose nuts.

☞

• If a threaded bolt breaks, replace all threaded bolts of the

respective wheel.

75_15

Tightening torque: 45.89 kgm to 50.989 kgm

(450 - 500 Nm)
