CONTROLS AND INDICATORS
4-4

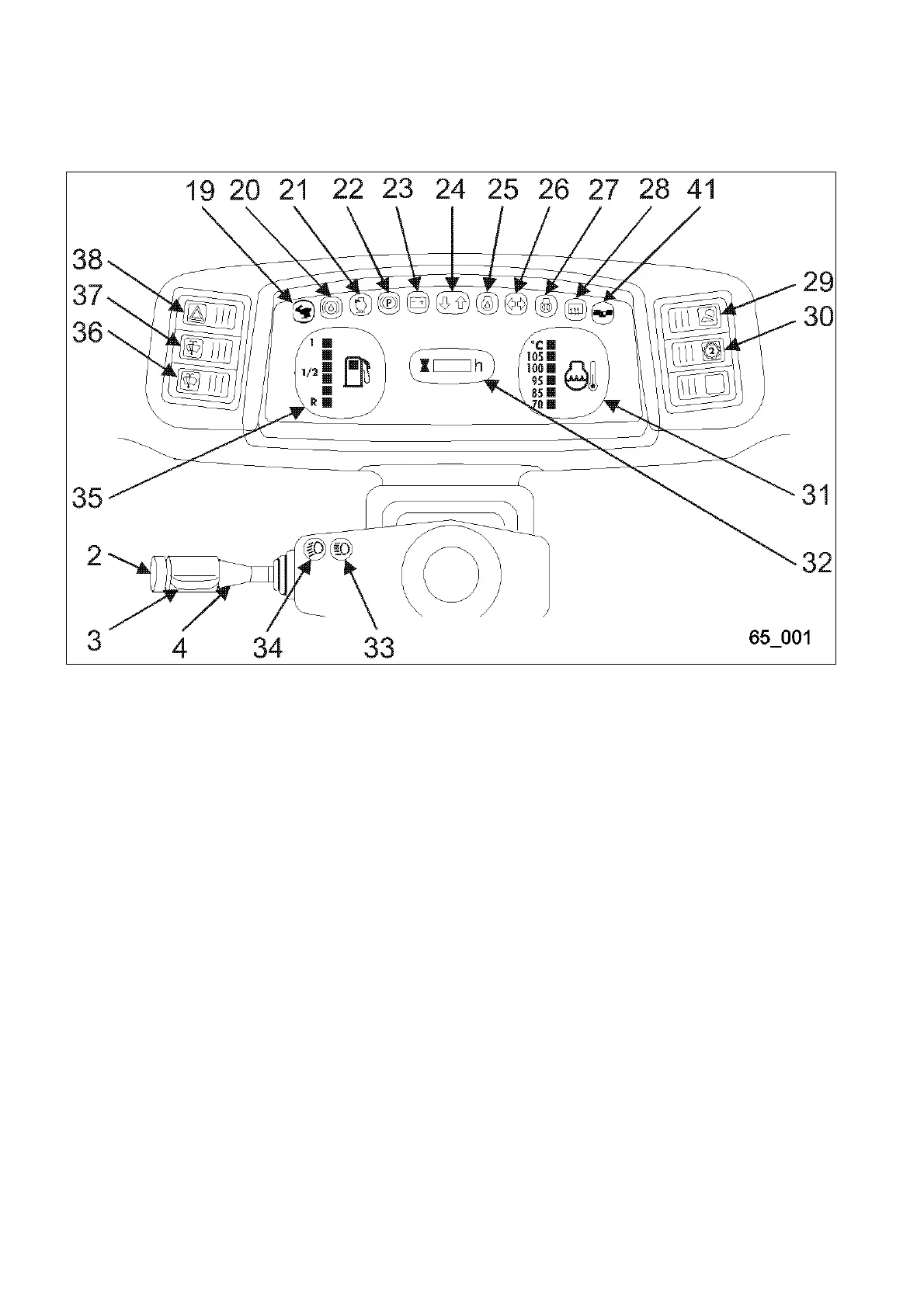

SWITCHES AND CONTROLS
19. High-speed gear control lamp (high-speed gear switched on, not used)
20. Brake fluid warning light
21. Air filter warning light
22. Parking brake warning light
23. Charging current warning light
24. Driving direction switch indicators
25. Engine oil-pressure warning light
26. Direction indicator control lamp
27. Air preheater control lamp
28. Heated rear windscreen indicator
29. Working lights switch and control lamp
30. Driving range switch and control lamp for speed up to 12.43 mph (20 km/h)
31. Coolant temperature indicator
32. Operating hour meter
33. High beam control lamp
34. Low beam control lamp
35. Fuel supply indicator
36. Rear windscreen wiper switch and washer
37. Front windscreen wiper switch and washer
38. Hazard flasher switch and control lamp
41. ALS-Electronics control lamp (Option)
