2.3.3 Name of parts (MFP) (bizhub 658e/558e/458e)
Front

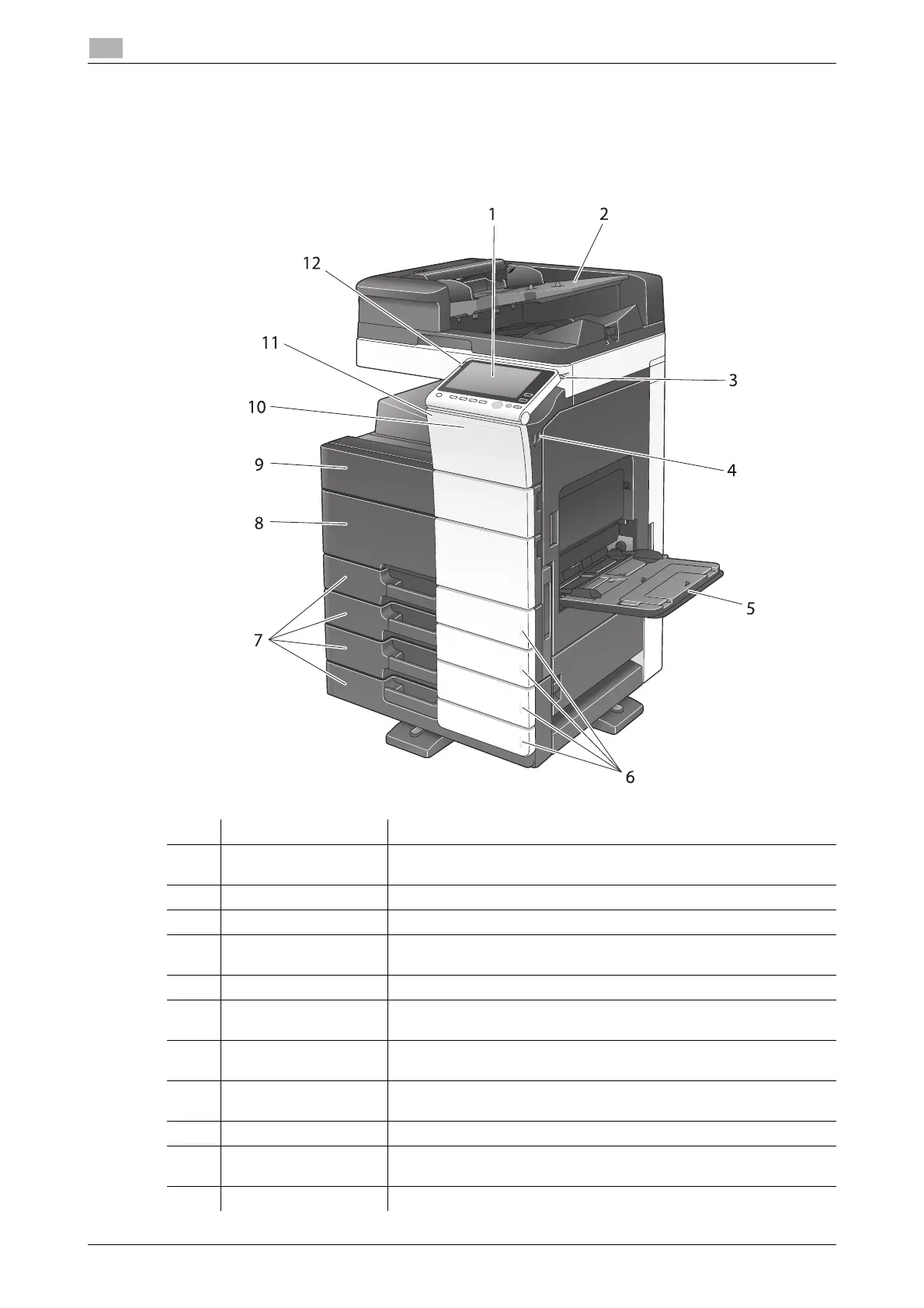

The illustration shows the main unit with Output Tray OT-506, and Paper Feed Cabinet PC-215.
No. Name Description
1 Control Panel Use the Touch Panel or buttons on this panel to operate this ma-
chine.
2 Original Tray Load the original.
3 Stylus Pen Used to operate the Touch Panel.
4 USB Port (Type A)
USB2.0/1.1
Used to connect an external memory unit (USB memory unit) to this
machine.
5 Bypass Tray Used to load custom-size paper or special paper.
6 Paper-Empty Indica-
tor
Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
7 Paper Tray Used to load standard-size paper. The number of trays varies de-
pending on the installed Paper Feed Cabinet.
8 Lower Front Door Open this door to replace consumables or to maintenance this ma-
chine.
9 Upper Front Door Open this door to replace a Toner Cartridge.
10 Data Indicator Flashes blue while this machine is receiving a job. If a job is currently
spooled, this indicator lamp lights up blue.
11 Status Indicator Flashes white during printing.
To Next Page
