2.3 About this machine
2
Side/rear

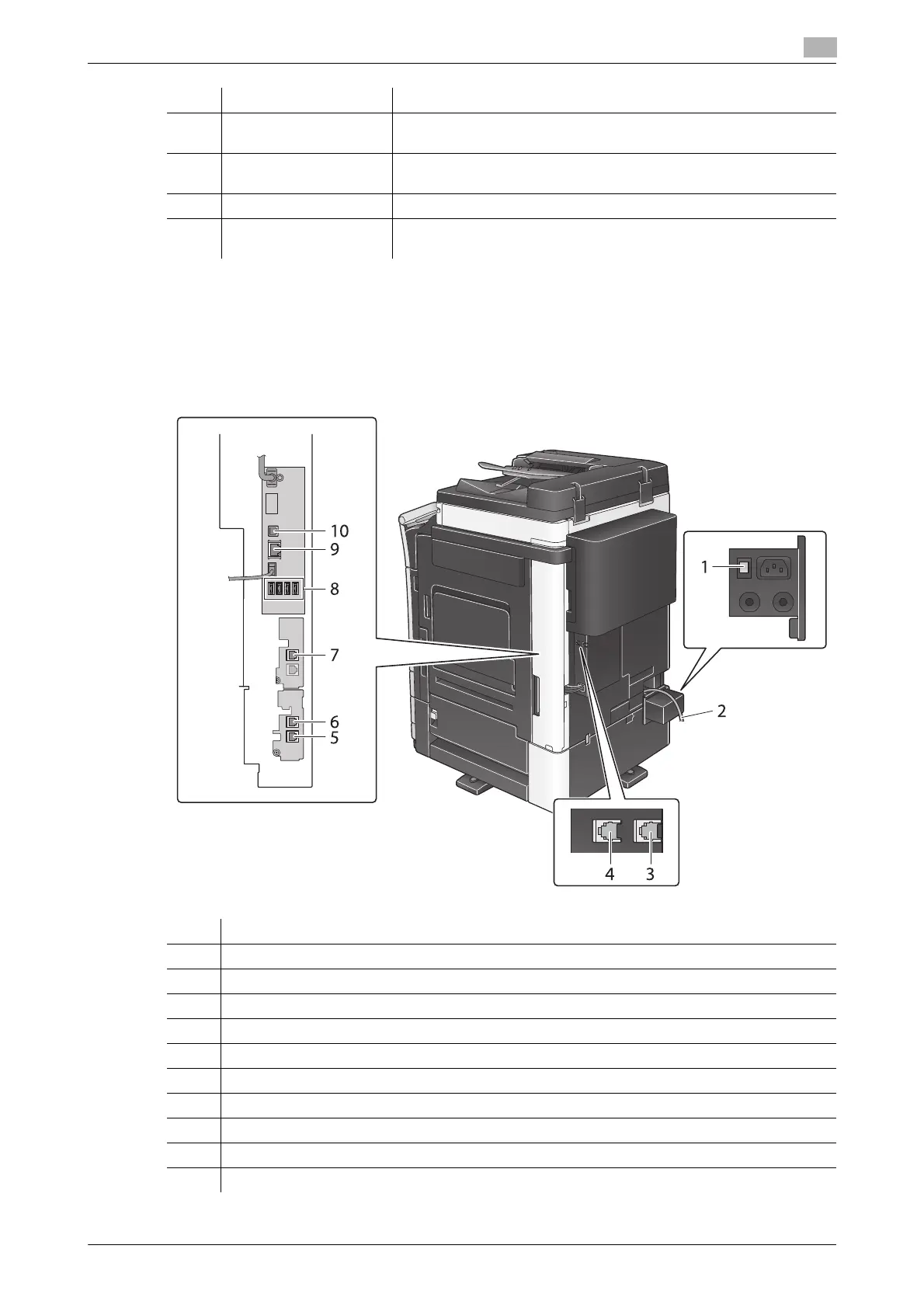

The illustration shows the main unit with Reverse Automatic Document Feeder DF-629, Paper Feed Cab-
inet PC-215, Fax Kit FK-514, FAX Kit FK-515, Fax Mount Kit MK-742, Power Supply BOX MK-734, Clean
Unit CU-101, and Mount Kit MK-745.
(FAX Kit FK-515 and Fax Mount Kit MK-742 can be used in North America.)
8 Front Door Open this door to replace consumables or to maintenance this ma-
chine.
9 Data Indicator Flashes blue while this machine is receiving a job. If a job is currently
spooled, this indicator lamp lights up blue.
10 Status Indicator Flashes white during printing.
11 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
No. Name Description
No. Name
1 Heater Power Switch
2 Power Cord
3 Telephone Jack 4 (LINE PORT4)
4 Telephone Jack 3 (LINE PORT3)
5 Jack for connecting a telephone (TEL PORT1)
6 Telephone Jack 1 (LINE PORT1)
7 Telephone Jack 2 (LINE PORT2)
8 USB Port (Type A) USB2.0/1.1
9 Network Connector (10Base-T/100Base-TX/1000Base-T)
10 USB Port (Type B) USB2.0/1.1
To Next Page
