bizhub 658e/558e/458e/368e/308e 2-17
2.3 About this machine
2

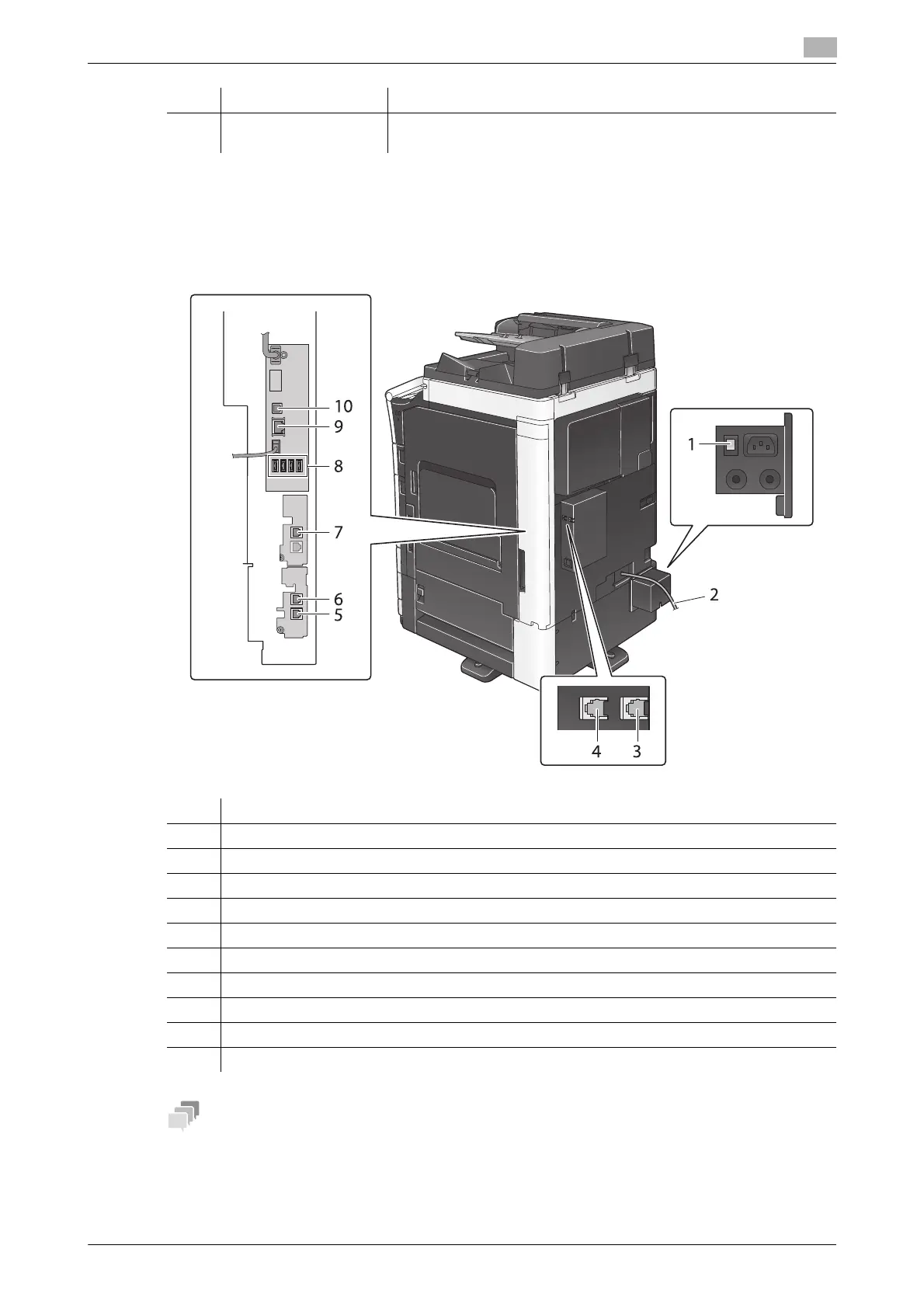

Side/rear
The illustration shows the main unit with Paper Feed Cabinet PC-215, Fax Kit FK-514, FAX Kit FK-515, Fax
Mount Kit MK-742, Power Supply BOX MK-734, and Clean Unit CU-102.
(FAX Kit FK-515 and Fax Mount Kit MK-742 can be used in North America.)
- The network port of this product is following No.9 and No.10. A port is activated when a network port
inserts a cable.
12 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
No. Name Description
No. Name
1 Heater Power Switch
2 Power Cord
3 Telephone Jack 4 (LINE PORT4)
4 Telephone Jack 3 (LINE PORT3)
5 Jack for connecting a telephone (TEL PORT1)
6 Telephone Jack 1 (LINE PORT1)
7 Telephone Jack 2 (LINE PORT2)
8 USB Port (Type A) USB2.0/1.1
9 Network Connector (10Base-T/100Base-TX/1000Base-T)
10 USB Port (Type B) USB2.0/1.1
To Next Page
