2.2 Component names and functions
2.2.4 AeroDR Interface Unit

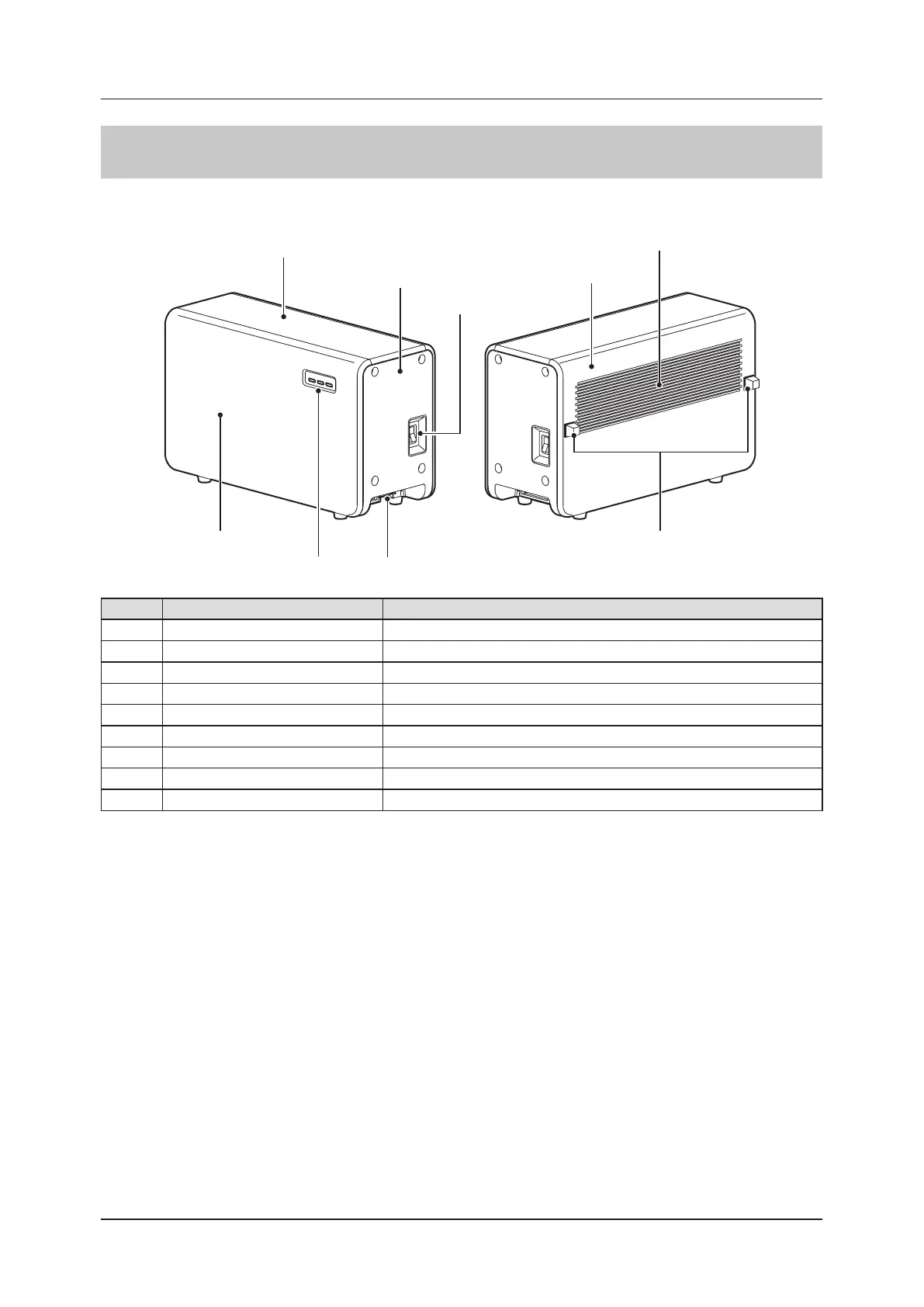

The component names and functions of the AeroDR Interface Unit are as follows.
(9) Spacer
(5) Exhaust outlet
(1) Top cover
(7) LEDs
(6) Front cover
(2) Side cover
(4) Rear cover
(3) Power switch
(8) Cable outlet
Number Name Functions
(1) Top cover Protects the internal parts.
(2) Side cover Protects the internal parts.
(3) Power switch Turns the AeroDR Interface Unit on/o󰀨.
(4) Rear cover Protects the internal parts.
(5) Exhaust outlet Exhausts internal heat.
(6) Front cover Protects the internal parts.
(7) LEDs Indicate the status of the AeroDR Interface Unit.
(8) Cable outlet Outlet for various cables.
(9) Spacer Prevents exhaust outlet from being blocked after installation.
