7
Start-up
7.9

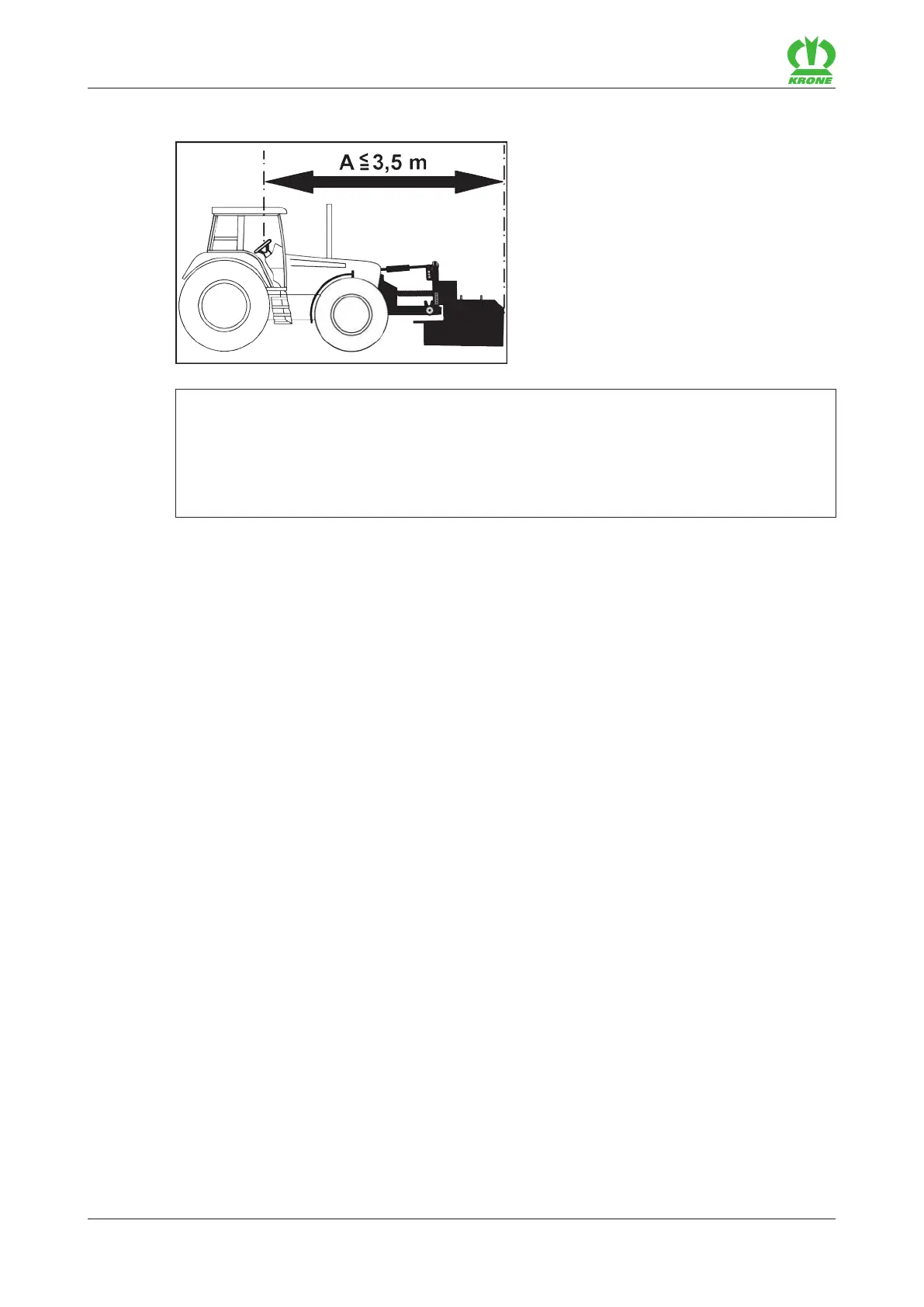

Checking front end dimension
44
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
7.9
Checking front end dimension
KM000-265
INFORMATION
Depending on the country
If the front end dimension
“A”3.5m
is exceeded, the road safety must be ensured by means
of suitable aids (for example instructing accompanying person or mirror at the intersections),
refer to the leaflet for accessory equipment issued by Federal Minister of Transport.
