8 Operation
8.3 Side guard - for version with “hydraulically folding side guards”
48
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
8.3 Side guard - for version with “hydraulically folding side guards”

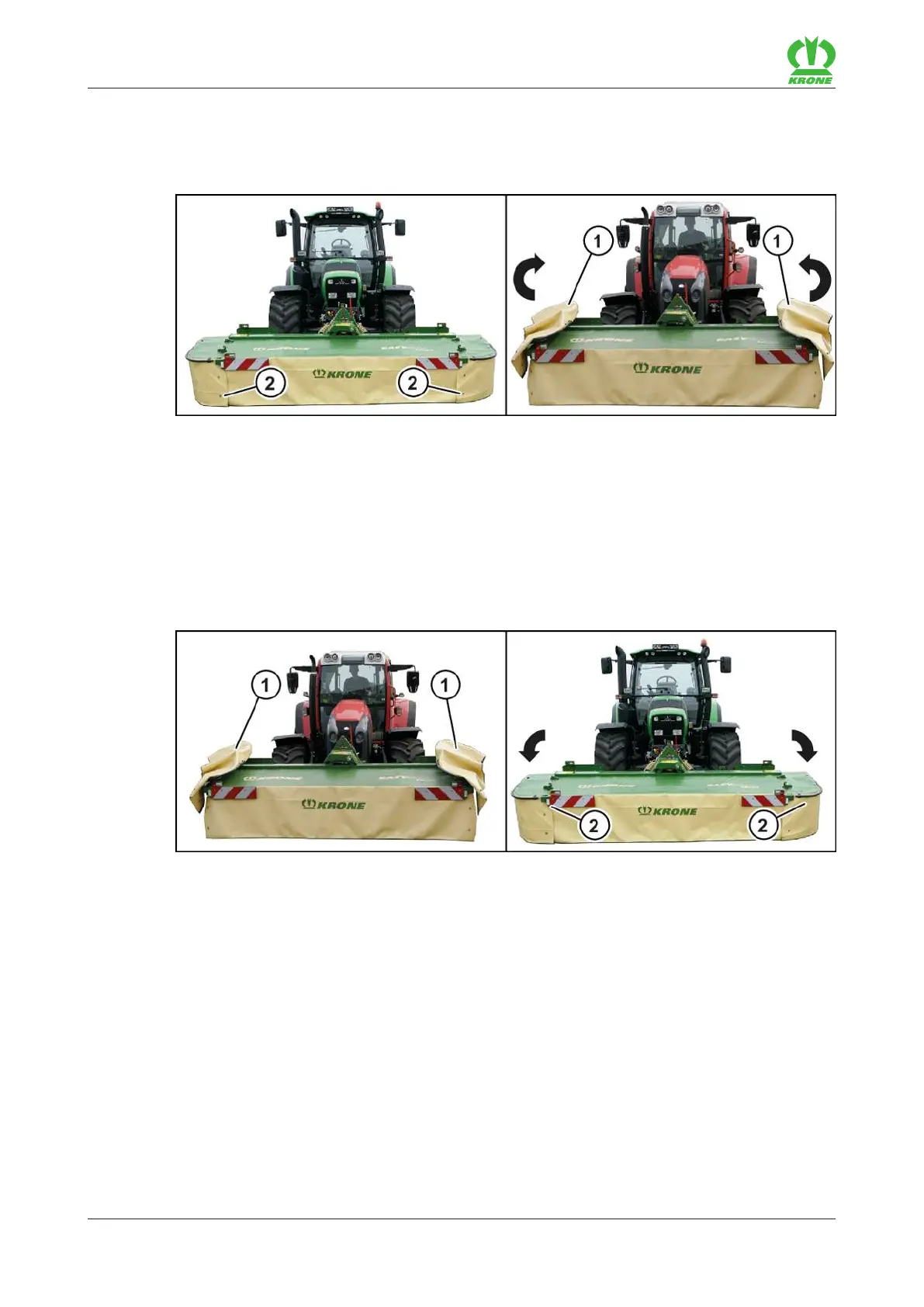

8.3.1 Folding up side guard (transport position)
KMG000-080
ü The machine is in the working position, refer to page48.
Shut down and safeguard the machine, refer to page24.
Open the turnlock fasteners (2).
Actuate the double-acting control unit (2+) until the side guards (1) are folded up.
Lock the control unit of the tractor.
8.3.2 Folding down side guard (working position)
KMG000-079
ü The machine is in the working position, refer to page48.
Unlock the control unit of the tractor.
WARNING!Crushing hazard when folding down the side guards! Before folding down the
side guards ensure that there is no one in the danger zone.
Actuate the double-acting control unit (2-) until the side guards (1) are folded down.
Shut down and safeguard the machine, refer to page24.
Secure the guard cloths using the turnlock fasteners (2).
8.4 Lowering machine from transport position to working position
Move the control unitfor the front hydraulics into the float position until the mower has been
lowered into the working position.
Move the control unit for the front hydraulics into the float position for mowing.
