Maintenance - Cutterbar 14
Check/change blades 14.3
EasyCut F 320 M
Original Operating Instructions 150000808_01_en 73
INFO : Use the locknut (4) only once.
Turn the locknut (4) from above on the retaining bolt (3) and tighten it, tightening torque,
refer to page60.
Repeat the process for all blades.
Fold down the front guard.
INFORMATION
Clockwise rotating blades can be ordered by stating order number 00139889*.
Anticlockwise rotating blades can be ordered by stating order number 00139888*.
14.3.3 Changing blades for the “blade quick fastener” version
KM000-045
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
ü The front guard is folded up, refer to page45.
ü The area around the blade, mowing discs and mower drums is cleaned.

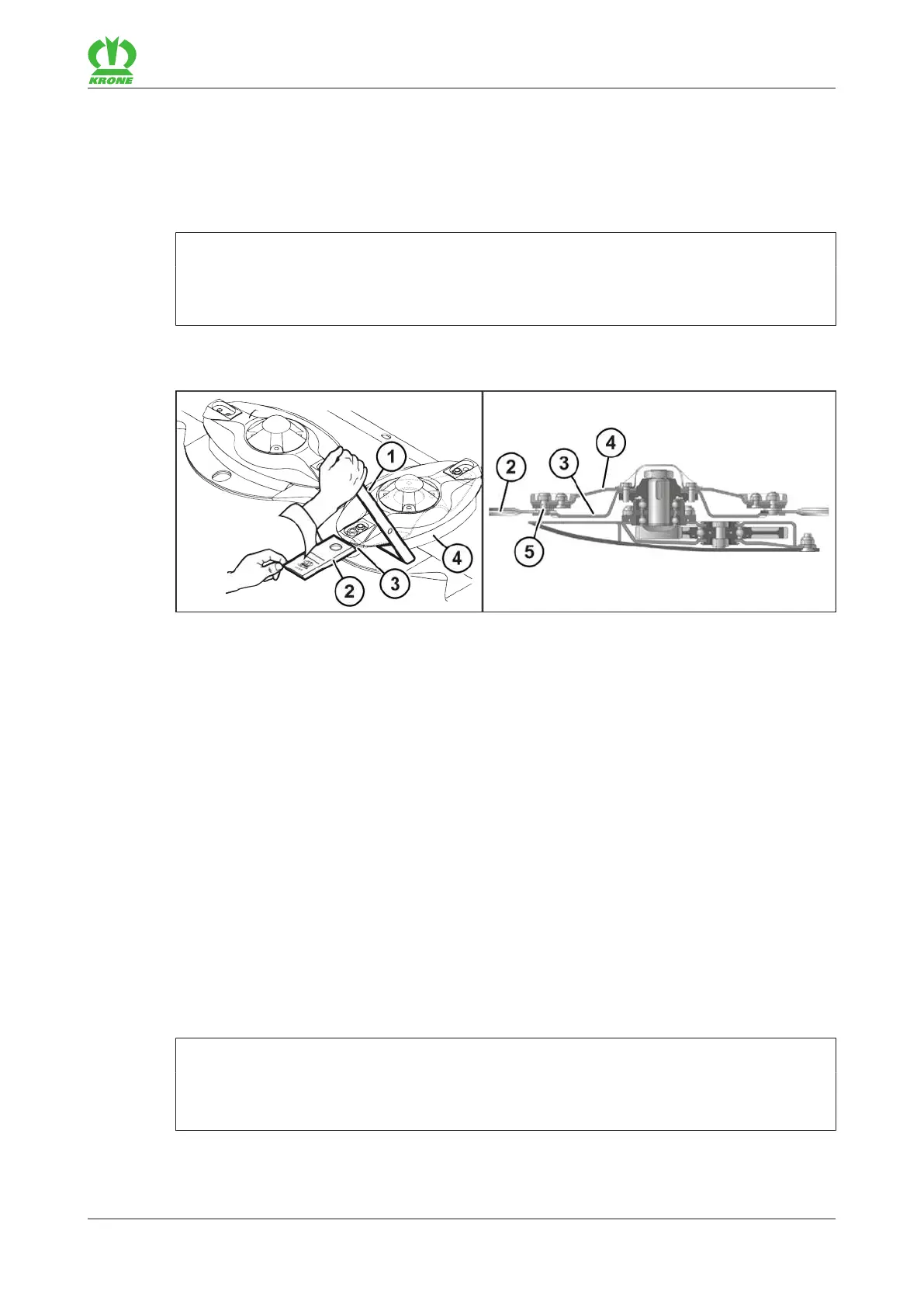

To remove the blade(2), slide the blade key(1) between the mowing disc(4) and the blade
carrier(3) as far as it will go, press it down with one hand and hold it.
Check the fastening parts of the blade(2), refer to page74. Also replace worn or damaged
mounting parts.
INFO : The blades for anticlockwise rotating and clockwise rotating cutting discs/mower drums
are different. When mounting the blades, mind the direction of rotation. The arrow on the blade
must match the direction of rotation of the corresponding mowing disc/mower drum.
To insert the new blade(2), slide the blade key(1) between the mowing disc(4) and the
blade carrier(3) as far as it will go, press it down with one hand and hold it.
Guide the blade(2) onto the retaining bolt(5) and in a controlled manner release the force
of your hand on the blade key(1).
Repeat the process for all blades.
Fold down the front guard.
INFORMATION
Clockwise rotating blades can be ordered by stating order number 00139889*.
Anticlockwise rotating blades can be ordered by stating order number 00139888*.
