Operation
40
Pos: 20.40 /BA/Be dienung /Eas yCut/Entlastungsf eder(n)/Entlas tungs außer Fu nktion setzen Bild EC 320 - 1 @ 58\m od_129671685 4046_78.docx @ 553311 @ 2 @ 1
Fig. 18
Pos: 20.41 /BA/Be dienung /Eas yCut/Entlastungsf eder(n)/Entlas tungsfedern auß er Funktion setz en. @ 9\mod _1220884313501 _78.docx @ 128945 @ 1 @ 1

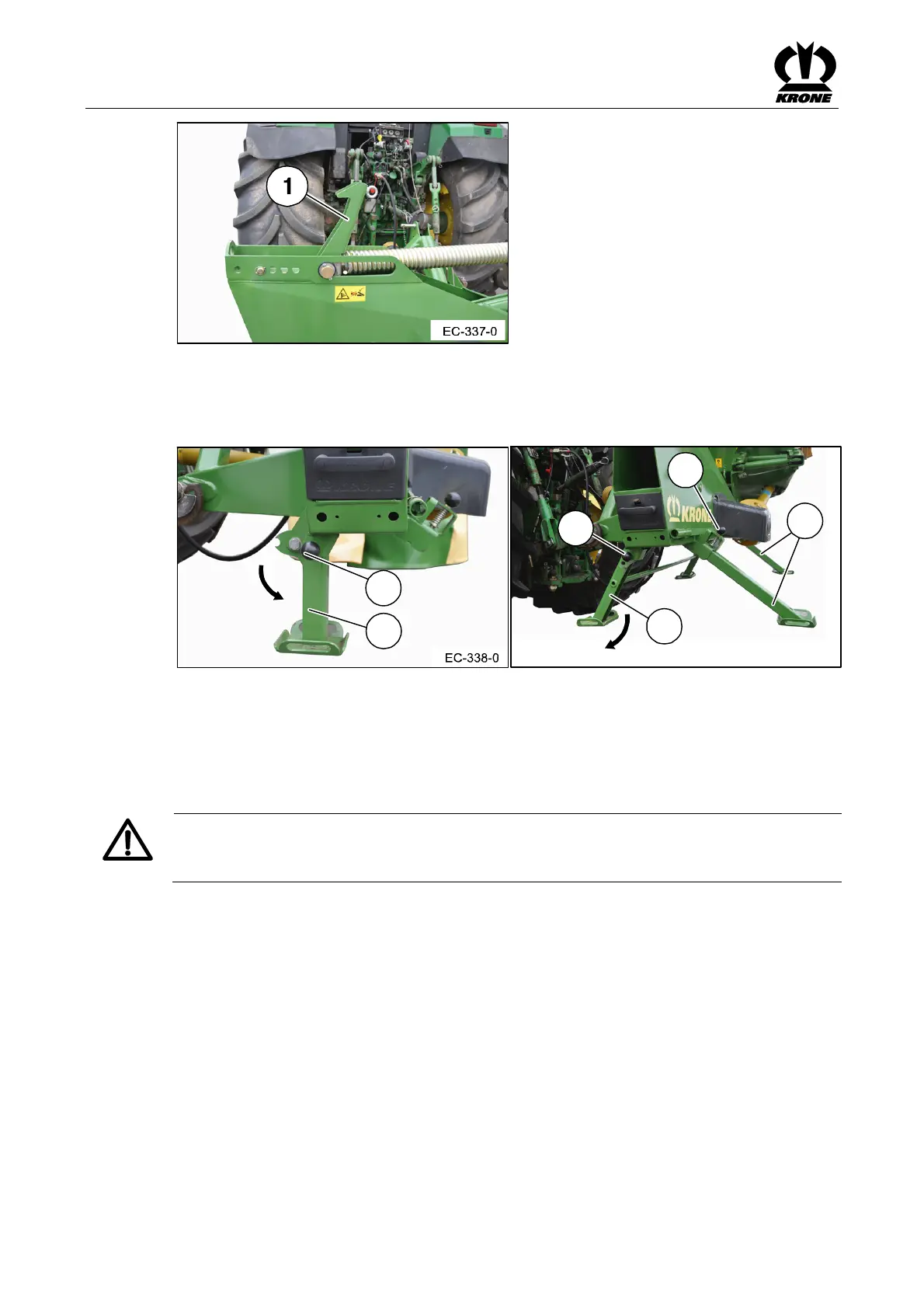

• Disable the compensation springs by reversing the adjusting lever (1) (only
possible in transport position).
• Move the mower into the working position.
Pos: 20.42 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze n herunterlassen Bild (4 Stützen) @ 58\mod_12968 17762609_78.d ocx @ 554659 @ 2@ 1
3
2
3
2
1
EC-350-0
3
Fig.19
Pos: 20.43 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze herunterlassen @ 1 0\mod_122 1545028276_78.d ocx @ 134459 @ @ 1
• Lower the parking support (2) and secure it in place with the bolt (3).
• Via the tractor hydraulics, lower the machine to the ground.
Pos: 20.44 /BA/Be dienung /Eas yCut/Abstellstütze /Vier Stütz en( optional) Übersc hrift @ 58\mo d_129681672 3926_78.docx @ 5 54520 @ 22 @ 1
8.5.1 Four supports (optional)
Pos: 20.45 /BA/Be dienung /Eas yCut/Abstellstütze /Achtung Ki ppgefahr @ 58\ mod_1297065 492192_78.docx @ 554954 @ 3 @ 1
CAUTION! Danger of tipping
Machine may be lowered into transport position only with additionally attached parking supports
on a firm and level base (concrete/paving).
Pos: 20.46 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze herunterlassen (4 Stützen) Text @ 5 8\mod_129681 8186733_78.d ocx @ 5546 87@ @ 1
With the four supports option, the mowing unit can be set down both in working position
and in transport position.
• Swivel down the front parking support (2) and secure it in place with the bolt (3).
• Push the rear parking supports (1) completely out and secure them in place with the bolt
(3).
• Lower the machine to the ground with the tractor hydraulics.
