9.2 Adjusting the Compensation Springs
Pos: 22.8 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Gefahr - Ei nstellung anden E ntlastungsfe dern @ 0\mod _1196751594562 _78.docx @ 12575 @ 2 @ 1
Danger! - Setting on the compensation springs
Effect: Danger to life or serious injuries
• The compensation springs must only be removed in transport position. In the working
position the compensation springs are subject to high tensile stress.
• Severe injury can be caused if the compensation springs are removed while in the
working position.
• The lower threaded blocks on the compensation springs must be fully screwed in.
Pos: 22.9 /BA/Eins tellungen/Mä hwerke/Eas yCut/Bodendruc k/Bodendruck allge meiner Text all e EC @ 0\ mod_119666727118 1_78.docx @ 1 0190 @ 1 @ 1
The ground pressure for the cutter bar is adjusted to local conditions by means of the
compensation springs. In order to protect the sward the load on the mowing spar must be
relieved so that it does not jump when mowing, yet does not leave any skid marks on the
ground.
Pos: 22.10 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlastu ngsfeder Bild Ec 280/320 - 1 @ 58\m od_12967312 67645_78.doc x@ 553597 @ @ 1

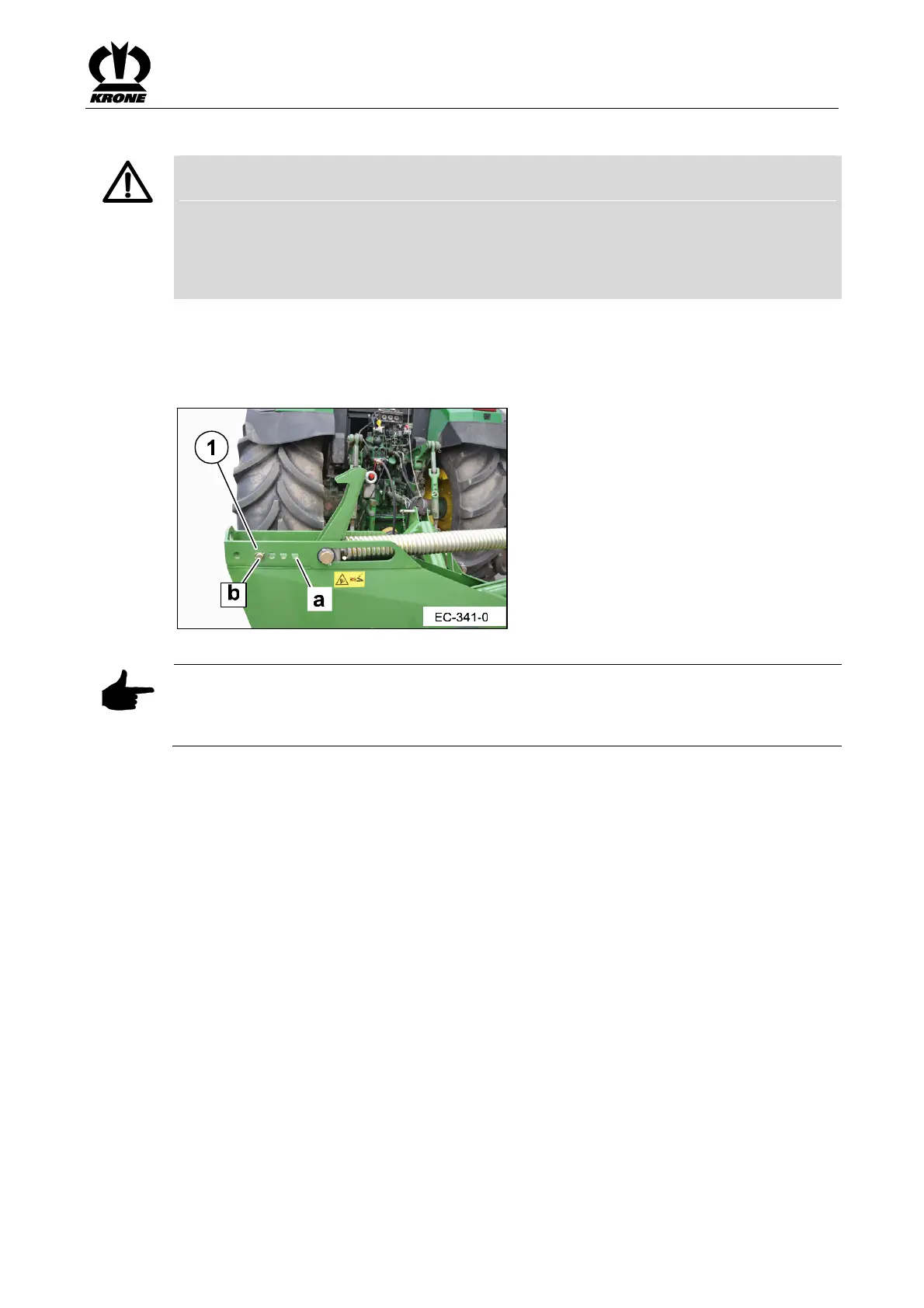

Fig. 22
Pos: 22.11 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Einstellu ng Entlastungsfe der Hinweis EC 320 -1 @ 58\mod_129 7066797720_ 78.docx @ 554 982 @ 22 @ 1
Note
To adjust the compensation springs, move the disc mower to transport position. This is the only
position in which the bolt (1) can be moved in the pattern of holes to change the spring pre-
tensioning of the compensation springs.
Pos: 22.12 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlastu ngsfeder Positi on a/b @ 9\mo d_122096007 5381_78.docx @ 130208 @ @ 1
Position "a" = lowest compensation
Position "b" = highest compensation
