14.3 Lowering the machine into transport position on parking supports (accessories kit)
Danger! - Unexpected movements of the machine
Effect: Danger to life, serious injuries
• There must be nobody between the tractor and machine.
• No one is permitted in the swivel range while the machine is being swivelled from the
transport into the working position or vice versa.
• Machine may be lowered into transport position only with additionally attached parking
supports on a firm and level base (concrete/paving).
• When leaving the driver's seat, switch off the engine, remove the ignition key, and secure
the tractor from rolling away.
• Wait until all machine parts have come to a complete stop.
• When working under or on the raised machine, the machine must be safely supported.
To save space, the mowing unit can be lowered into transport position. However, the additional
parking supports must be fitted to the mowing unit.
Pos: 31.2 /Übersc hriften/Übersc hriften 3/U-Z/U mfang des Bei packs @ 39\mo d_126820636983 9_78.docx @ 3 58438 @ 2 @ 1

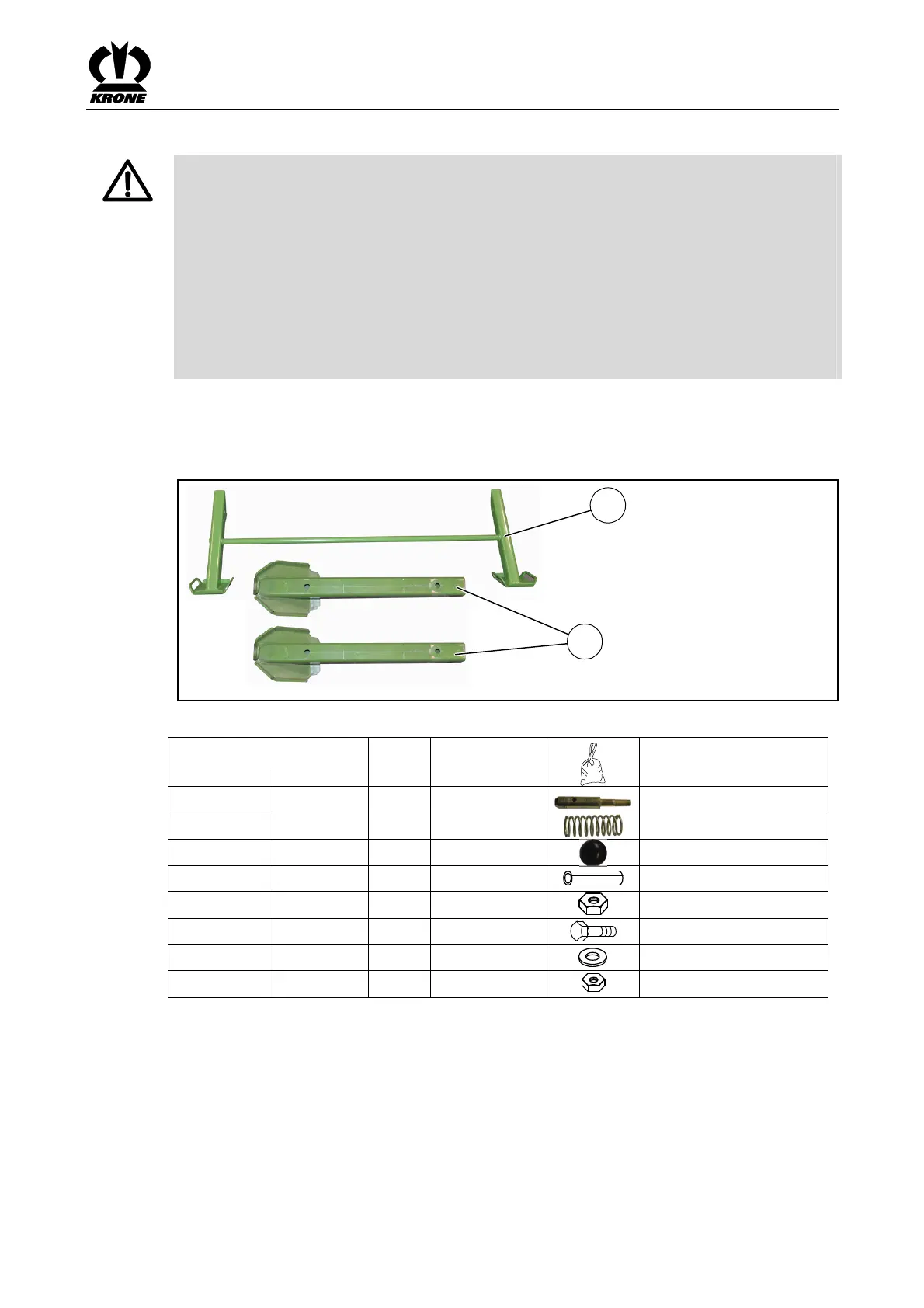

14.3.1 Scope of the accessories kit
Pos: 31.3 /Bei packs/EasyCut/Abst ellstützen Bei pack 150 xxx xxx xx/Einzelteile Bil d@ 58\mod_129 6742033621_78.d ocx @ 5541 18 @ 1 @ 1
EC-347-0
1
2
Fig.45
Pos: 31.4 /Bei packs/EasyCut/Abst ellstützen Bei pack 150 xxx xxx xx/Einzelteile Tab elle @ 58\mod_ 12967420368 40_78.docx @ 554 145 @ 222 @ 1
Number Pos. Part No. Dimensions
2 3 00 263 092 0 About 16 x 105
2 4 00 337 256 3 2x 19 x 55
2 5
00 919 509 0
C 40 x M10
2 6
00 912 112 0
5 x 26
2 7
00 908 500 0
M10
1 8
00 900 392 0
M 16 x 90
2 9
00 910 347 0
17/37 x 3
1 10
00 908 719 0
M 16
