9.3 Setting of the pole protection mechanism
Pos: 22.15 /BA/Sic herheit/Eas yCut/Achtung - Eins tellung an der Pfahlsicherung @ 9\mod_122096 0955600_78.doc x@ 130367 @ 2 @ 1
Caution! - Adjusting the pole protection mechanism
Effect: Damage to the machine
• If the setting value is changed, the trigger moment will also change. If the spring on the
pole protection mechanism is pretensioned more than prescribed by the manufacturer,
there is a risk of damaging the disc mower.
• The spring on the pole protection mechanism must be tensioned at least to the extent
that the pole protection mechanism does not respond in transport position even with
abrupt loads.
Pos: 22.16 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng Bild EC 320 -1 @ 58\mod _1296731365 769_78.docx @ 55 3624 @ 2 @ 1

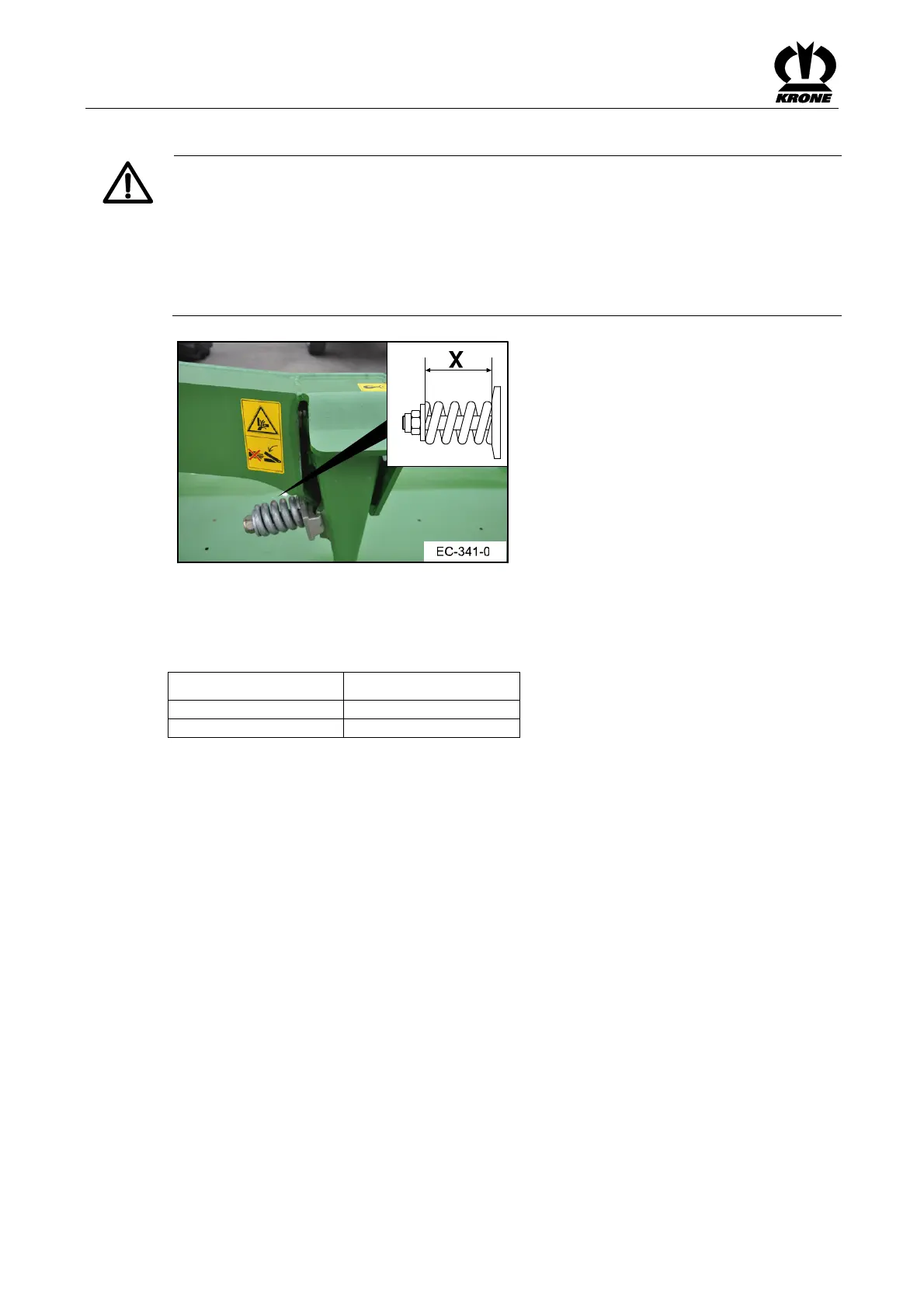

Fig. 23
Pos: 22.17 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng allgemein @ 9\ mod_122096 1293021_78.doc x @ 130429 @ @ 1
In order to protect the disc mower against damages during driving over obstacles, it is equipped
with a so-called pole protection mechanism.
The optimal setting for the trigger moment takes place in the factory.
Pos: 22.18 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng EC R 280/320 T abelle @ 73\ mod_130858 0032315_78.doc x @ 655888 @ @ 1
Mower type Dimension x
EASYCUT R 280 80 mm
EASYCUT R 320 80 mm
Pos: 22.19 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng nach dem A uslösen @ 9\m od_12209616 40381_78.doc x@ 130471 @ @ 1
After the pole protection mechanism is triggered, the mowing unit swings back and, at the same
time, in the front area upwards. This allows the mower to climb over small obstacles, e.g.,
stones. The pole protection mechanism will catch again as soon as you move back.
