Maintenance
47
Pos: 24.13 /Übersc hriften/Überschrif ten 2/A-E/A nzugsdrehmom ente über In nensechskant @ 4 5\mod_12771 06415765_78.d ocx @ 411230 @ 222 @ 1

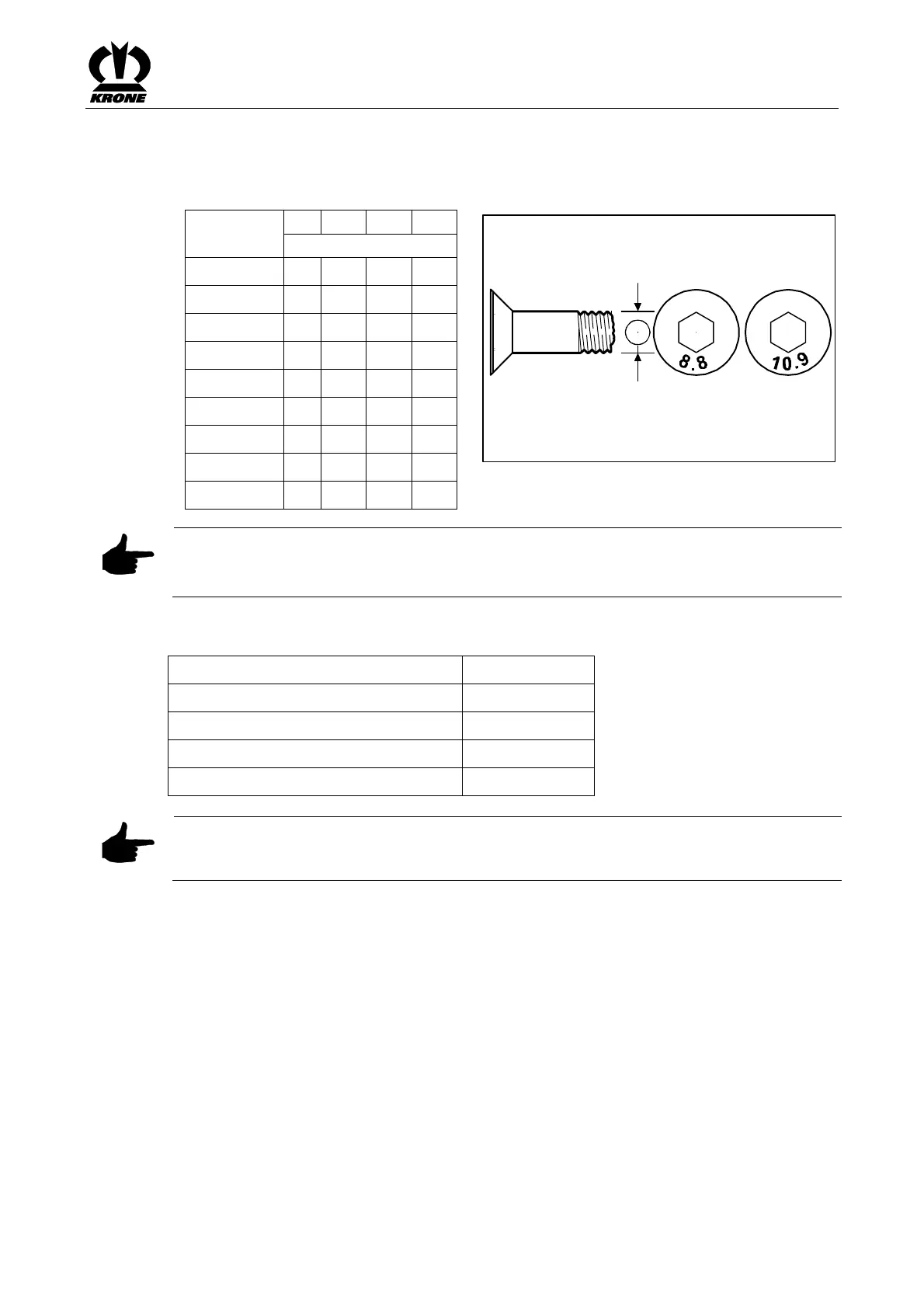

10.4 Tightening Torques (Countersunk Screws)
Pos: 24.14 /BA/ Wartung/Dreh momente / Anzugs momente/Dreh momente über In nensechska nt @ 45\mod_1 27710623232 8_78.docx @ 4112 05 @ 3 @ 1
The tightening torque MA is stated in Nm
(unless otherwise indicated).
A = Thread size
(The stability class can be seen on the head of the
screw.)
A
Ø
5.6 8.8 10.9 12.9
MA (Nm)
M 4
2.5 3.5 4.1
M 5
4.7 7 8
M 6
8 12 15
M 8
20 29 35
M 10
23 39 58 67
M 12
34 68 100 116
M 14
108 160 188
M 16
168 248 292
M 20
340 488 568
A
BM 400 0234
NOTE
The table above applies only to countersunk screws with hexagonal socket heads and metric
threading that are tightened by the hexagonal socket head.
Pos: 24.15 /Übersc hriften/Überschrif ten 3/A-E/A bweichendes Dre hmoment @ 0\mod_11969500 54171_78.doc x@ 15312 @ 22 @ 1
10.4.1 Deviating Torque
Pos: 24.16 /BA/ Wartung/Selbstf ahrer/Grundm aschine/Abweic hendes Dreh moment EasyCut @ 3 \mod_1204 885737515_78. docx @ 73465 @ 3@ 1
Screws / nuts MA [Nm]
Nut for cutting disc flange 850
Nut for shear protection (rotary hub) 300
Bearing housing for cutting disc 50
Bearing housing for blade drum 50
Pos: 24.17 /BA/ Wartung/Muttern und Schrauben ( 50h) anziehen @0\ mod_1196949 864530_78.doc x@ 15293 @ @ 1
Note
Regularly check that nuts and bolts are tightly in place (approx. every 50 hours) and tighten
them if necessary.
