10.9 Oil level check and oil change on the cutter bar
Pos: 24.31.2 /Üb erschriften/Üb erschriften 3/K-O/ Ölwechsel @ 0 \mod_1197021 941955_78.doc x@ 16139 @ @ 1
10.9.1 Oil change
Pos: 24.31.3 /B A/Wartung/Mäh werke/Hinweis Ei n Ölwechsel amM ähholm ist nicht erforderlich. @ 68\ mod_1304577 391388_78.doc x@ 628708 @ 33 @ 1
Note
No oil change is required on the cutter bar.
Pos: 24.31.4 /Üb erschriften/Üb erschriften 3/K-O/ Ölkontrolle @ 0\mod_11970219 08190_78.doc x@ 16120 @ @ 1
10.9.2 Checking the oil level
Pos: 24.31.5 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- Schnell rotier ende Messerteller /Messertro mmel_2 @ 0\mo d_1197022569252 _78.docx @ 1 6165 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 24.31.6 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- Schnell rotier ende Messerteller /Messertro mmeln_1 @ 0\m od_119701769673 6_78.docx @ 16001 @ 2 @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 24.31.7 /B A/Wartung/Mäh werke/Ölkontrolle M ähholm Eas ycut EC 280/3 20 @ 9\mod_122 1047992481_ 78.docx @ 131 607 @ @ 1

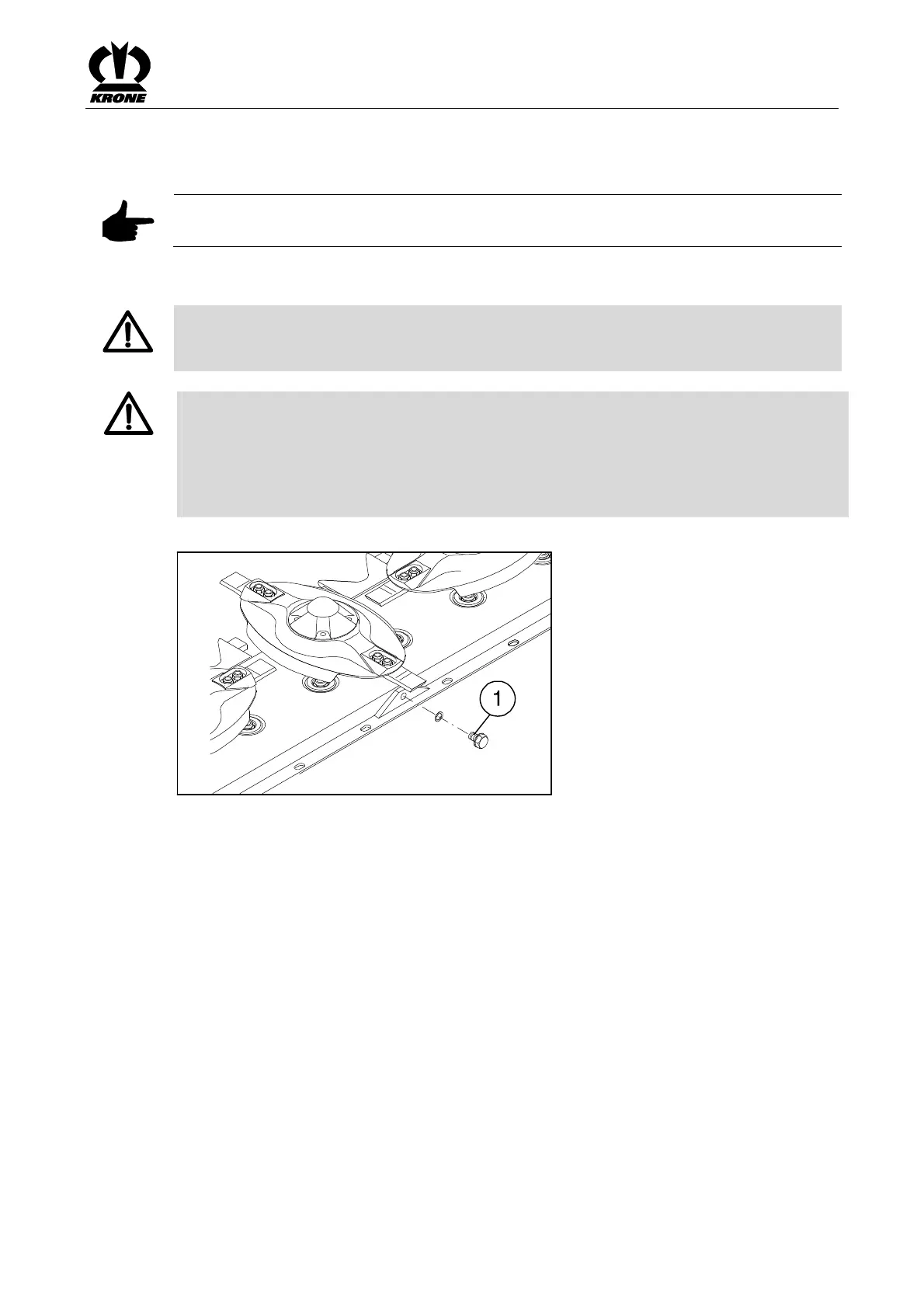

EC-0-003
Fig. 27
• Allow the machine to run briefly.
• Wait until cutting discs/blade drums have come to a complete stop.
• Move the cutter bar into transport position.
Check the oil level before every use
• Remove the oil level inspection screw (1) from the cutter bar.
• The oil level must be up to the bore hole. If required, top up the oil (SAE 90)
• Screw in the oil level inspection screw (1) again and tighten securely.
