10.5 Storage compartment
Pos: 24.20 /BA/ Wartung/Staufac h/Staufach Bild EC 320 # @ 59\ mod_1297231493 210_78.doc x@ 5 55947 @ @ 1
EC-353-0
1

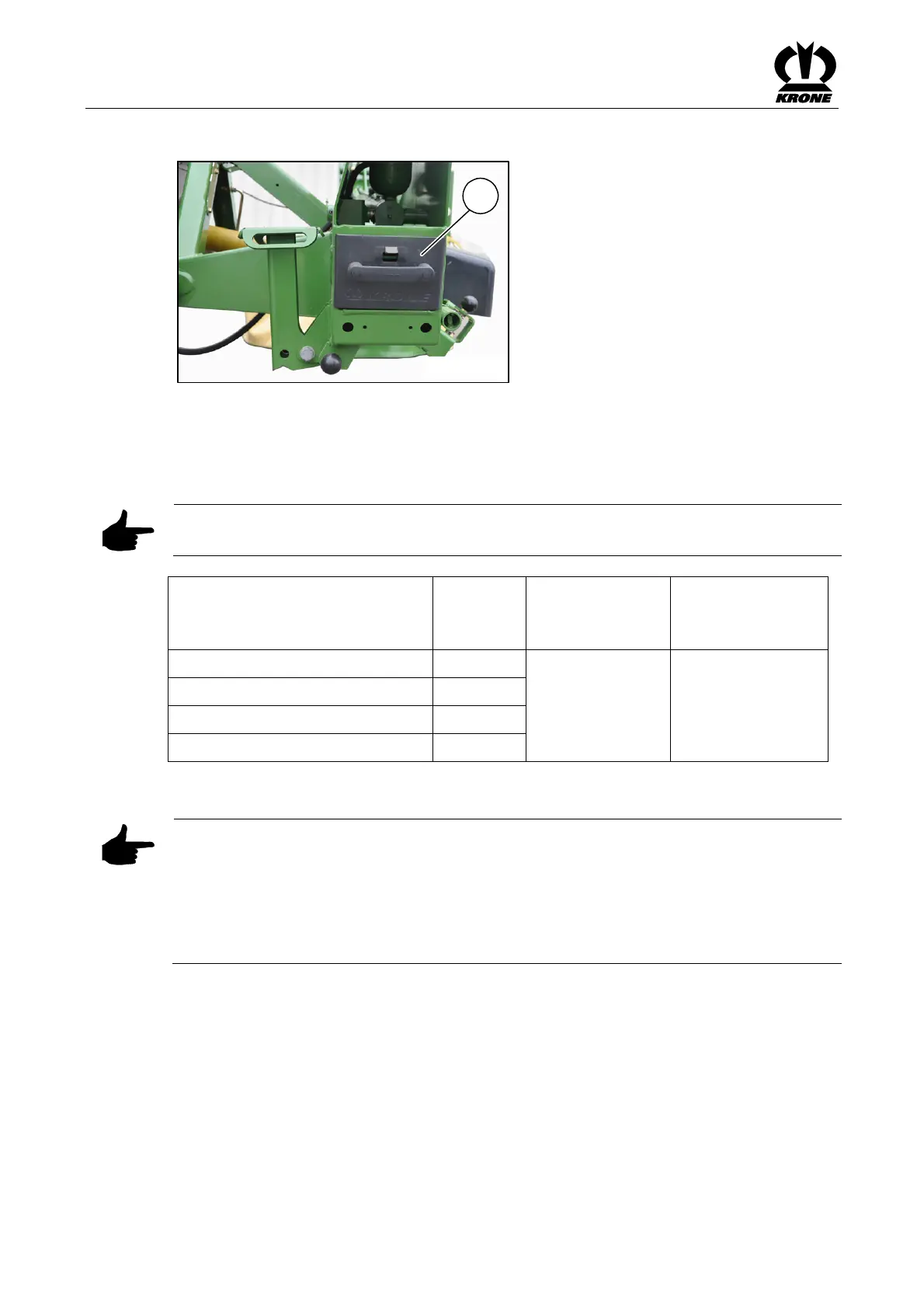

Fig.24
Pos: 24.21 /BA/ Wartung/Staufac h/Staufach Ersa tzmesser mitführ en @ 59\mod _1297232286 839_78.doc x@ 5 56003 @ 2 @ 1
Replacement blades can be carried along in the storage compartment (1).
Pos: 24.22 /Übersc hriften/Überschrif ten 2/F-J/Füll mengen und Sc hmiermittelbe zeichnungen derGe triebe @ 0\m od_11969510940 46_78.docx @ 15335 @ 22 @ 1
10.6 Filling Quantities and Lubrication Designations for Gearboxes
Pos: 24.23 /BA/ Wartung/Mähw erke/Hinweis Ein Ölwechsel am M ähholm ist nic ht erforderlich. @ 68\mod_130457739 1388_78.doc x @6 28708 @ 3 @ 1
Note
No oil change is required on the cutter bar.
Pos: 24.24 /BA/ Wartung/Tabelle n_Füllmengen/M ähwerke/Technisc he Daten B etriebsstoffe Füll mengen EC R 2 80/320 @ 73 \mod_1308580 315066_78.docx @ 655970 @ 3 @ 1
Filling
Quantity
filtered oils
Bio-degradable
lubricants
[litres] Brand name Brand name
Main gearbox 0.5 l
SAE 90
On request
Mower Drive Gearbox 0.3 l
Cutter bar EasyCut R 280 6.0 l
Cutter bar EasyCut R 320 7.0 l
Pos: 24.25 /BA/ Wartung/Zeitinter valle an den Ge trieben 200 h @ 0\mod_11969 51919921_78.doc x @ 15373 @ @ 1
10.6.1 Oil Level Check and Oil Change Intervals (Gearboxes)
Note - Oil level check and oil change (gearboxes) and lubricating the machine
Effect: Long expected service life of machine
• First oil change on all gearboxes after 50 operating hours, then every 200 operating
hours (but at least once a year).
• Before using the machine always check the oil level.
• With bio-degradable oils the changing intervals must be complied with absolutely
because of ageing of the oils.
