15 ELECTRICAL SYSTEM 146
15.12 Checking the headlight setting
400726-10

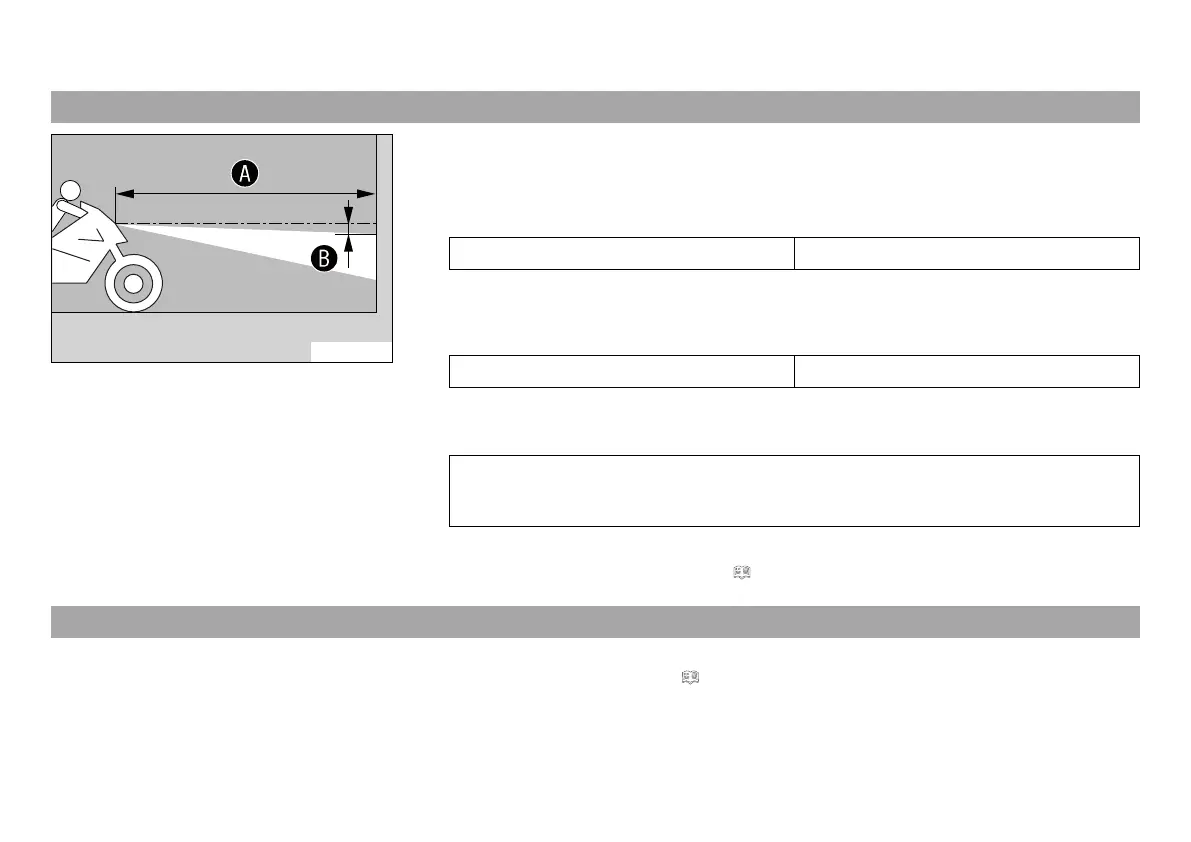

– Position the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
–
Make another mark at a distance
under the first mark.
Guideline
Distance
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
from the wall and switch
on the low beam.
Guideline
Distance
5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the headlight setting.
The light-dark boundary must lie exactly on the lower mark when the motorcycle is
ready to operate with the rider mounted along with any luggage and a passenger if
applicable.
» If the light-dark border does not meet specifications:
– Adjust the headlight range. ( p. 146)
15.13 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 146)
