17 TUNING THE ENGINE 155

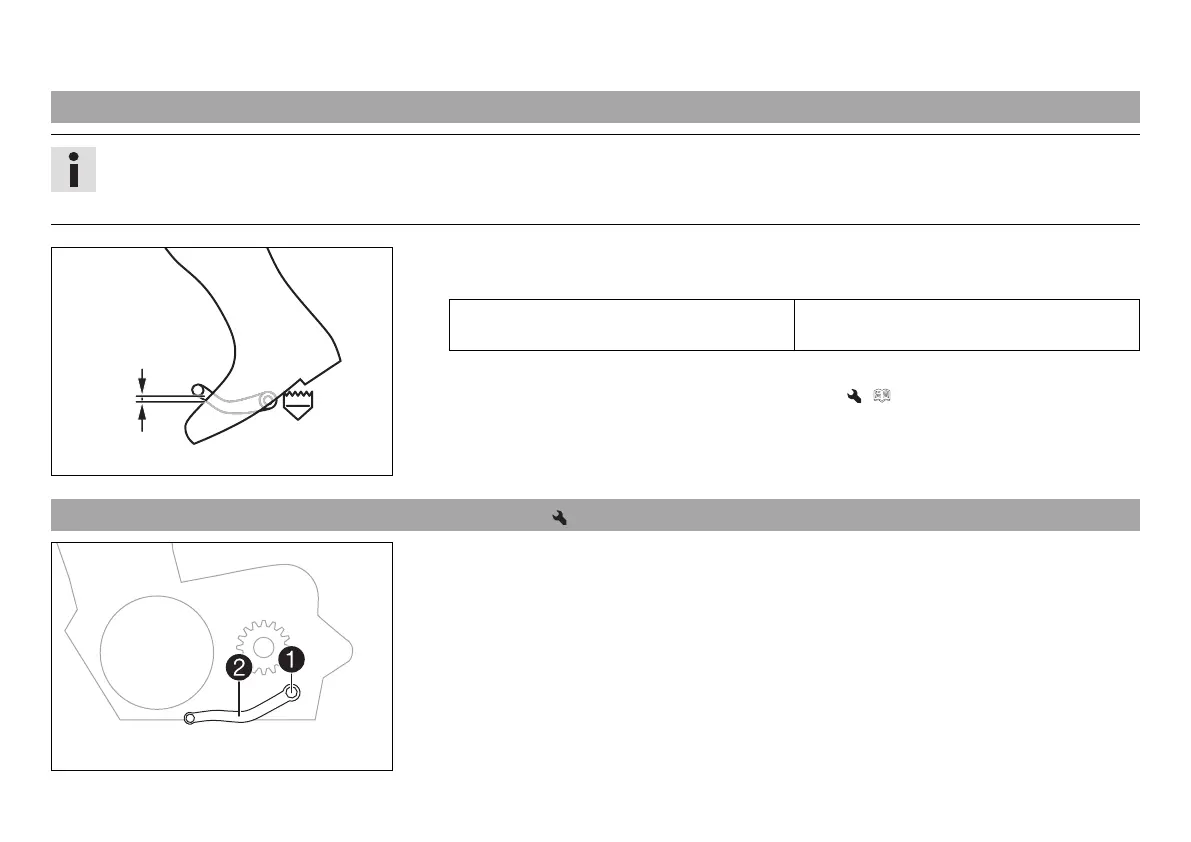

17.1 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
When the shift lever keeps touching the boot, the transmission will be subject to an excessive load.
400692-10
–
Sit on the vehicle in the riding position and determine distance
between the upper
edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever. ( p. 155)
17.2 Adjusting the basic position of the shift lever
H01081-10
(Duke)
–
Remove screw
with washers and take off shift lever
.
