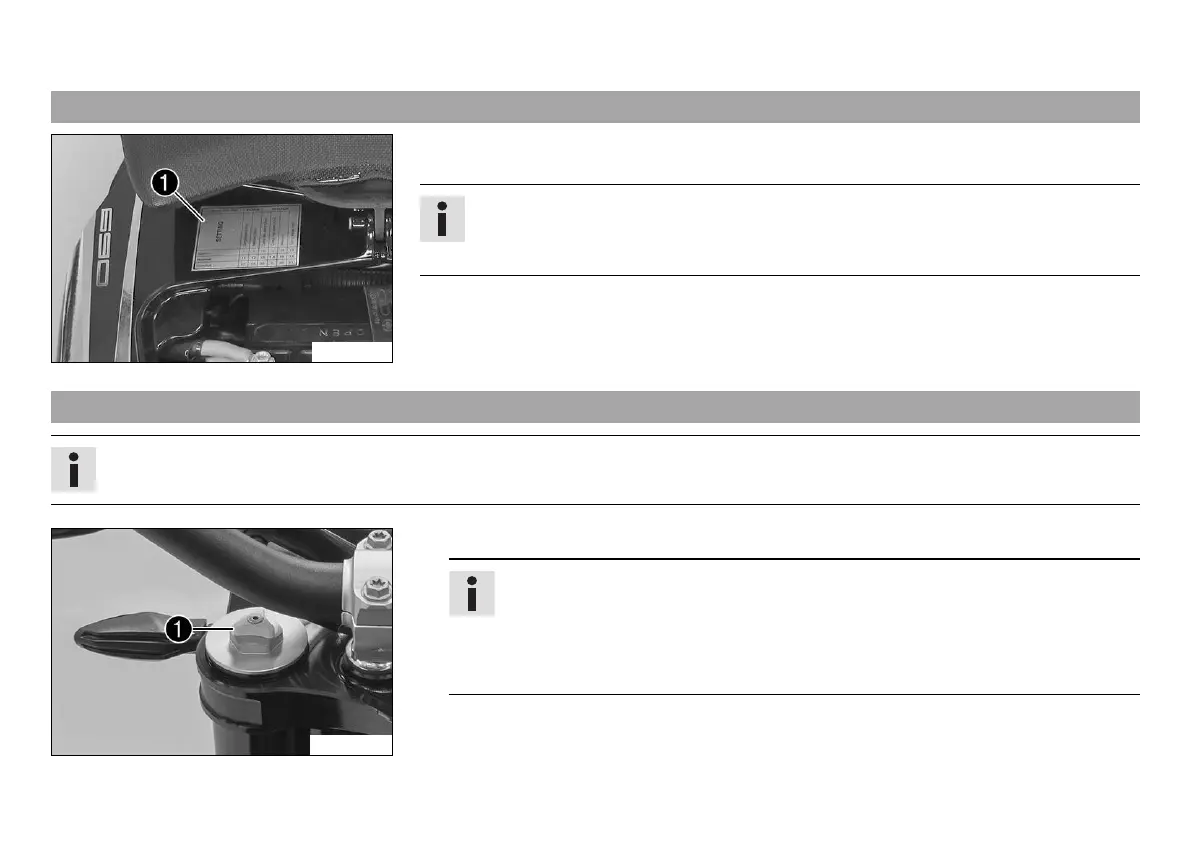

11 TUNING THE CHASSIS 72
11.1 Fork/shock absorber (Duke R)
V00072-10
The fork and the shock absorber offer many options of adapting the chassis to your riding
style and the payload.
Info
To help you adapt the vehicle, we have summarized our findings in Table
. You
can find the table under the passenger seat.
These adjustments should be understood as a guideline and should always be the basis
of your own personal suspension setting. Do not change the adjustments at random or by
more than ± 40%, since otherwise the riding characteristics could deteriorate, particularly
at high speeds.
11.2 Adjusting the compression damping of the fork (Duke R)
Info
The hydraulic compression damping determines the fork suspension behavior.
K00353-10
–
Turn the white adjusting screw
all the way clockwise.
Info
Adjusting screw
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white adjusting
screw). The rebound damping is located in the right fork leg REB (red adjusting
screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
