11 TUNING THE CHASSIS 73
Guideline
Compression damping
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Full payload 7 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.

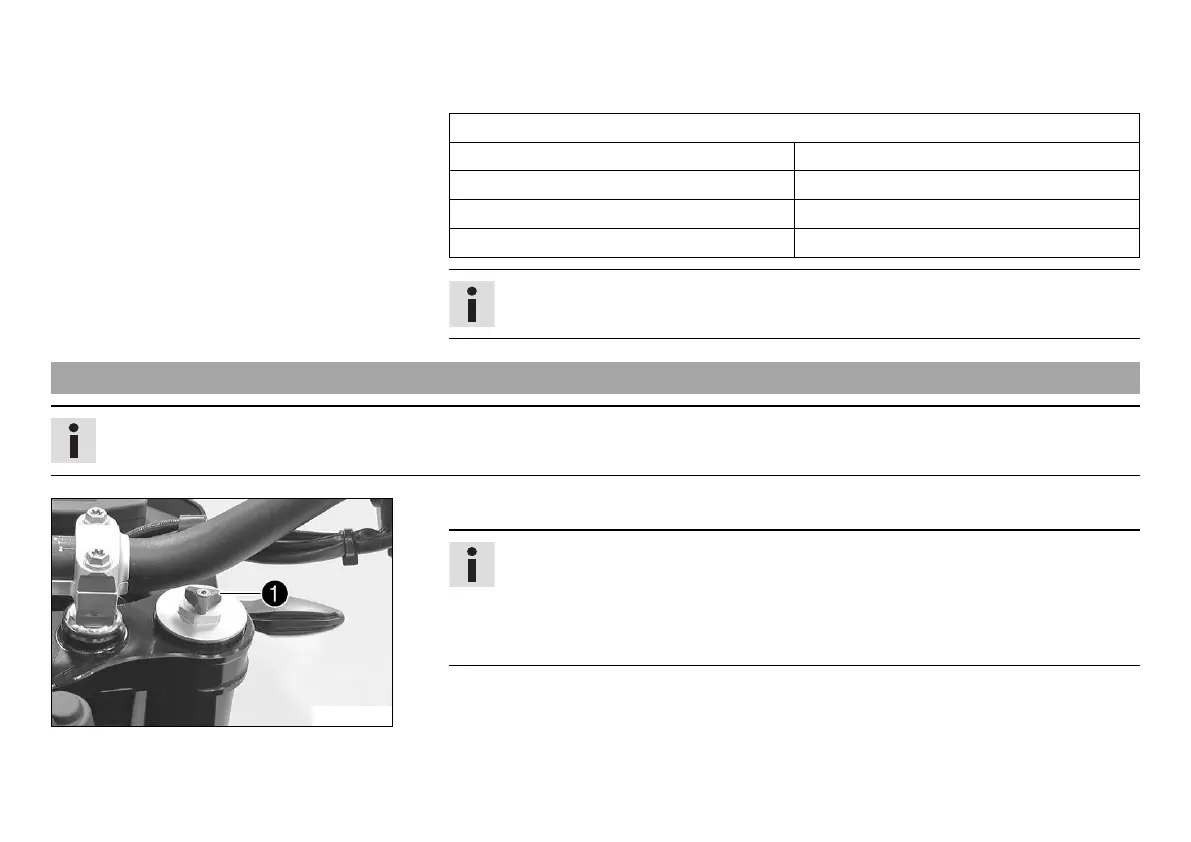

11.3 Adjusting the rebound damping of the fork (Duke R)
Info
The hydraulic rebound damping determines the fork suspension behavior.
V00049-10
–
Turn the red adjusting screw
all the way clockwise.
Info
Adjusting screw
is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting screw).
The compression damping is located in the left fork leg COMP (white adjusting
screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
